Запчасти Case IH 274 (02-02) - MISCELLANEOUS, WEIGHTS Accessories & Attachments / Miscellaneous

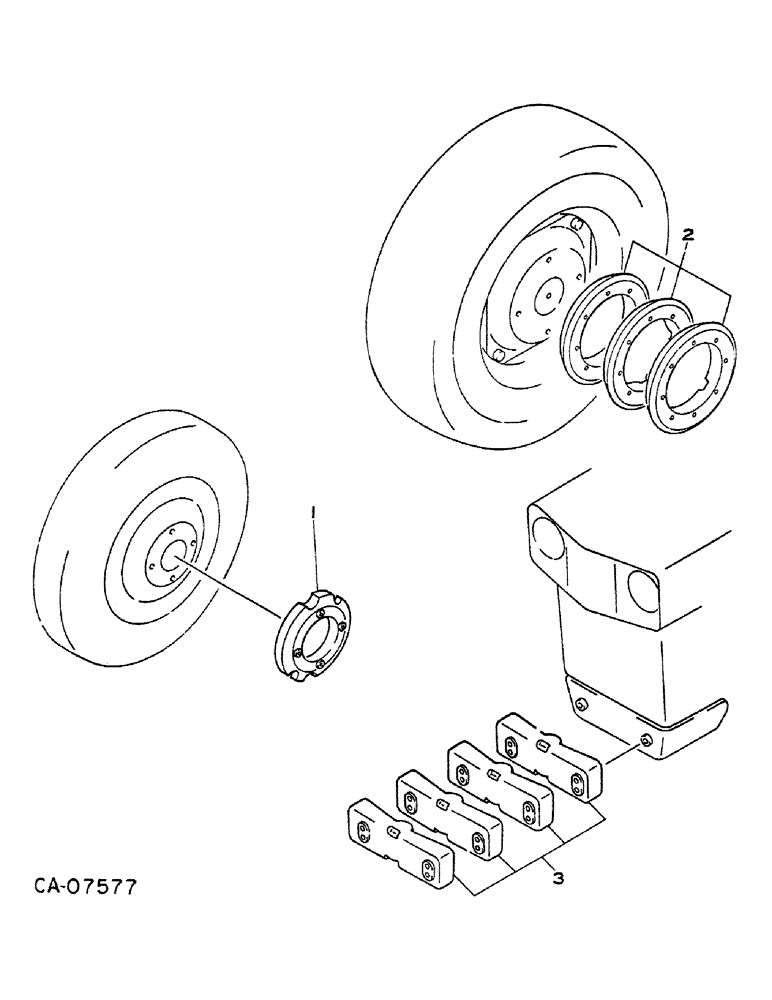

Схема запчастей Case IH 274 - (02-02) - MISCELLANEOUS, WEIGHTS Accessories & Attachments / Miscellaneous
3
1
2

Артикул

Название

Примечание

Количество

1

WEIGHT, front wheel, approx 20 kg, for first set, (NSS)

2шт.

25285R1

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 8

1/2 x 3-1/4 PHC type 8

8шт.

25526R1

NUT,1/2"-13, G8

1/2 PHC type 8

8шт.

131101

LOCK WASHER

1/2"

8шт.

1

WEIGHT, front wheel, approx 20 kg, for second set, (NSS)

4шт.

24870R1

BOLT,Hex, 1/2" - 13 x 5", Gr 8

1/2 x 5 PHC type 8

8шт.

25526R1

NUT,1/2"-13, G8

1/2 PHC type 8

8шт.

131101

LOCK WASHER

1/2"

8шт.

2

1004427C2

WEIGHT

rear wheel, approx 35 kg each

6шт.

1062207C1

BOLT, M12 x 70

4шт.

86508581

BOLT,Hex, M12 x 90mm, Cl 8.8

M12 x 90

20шт.

1014942C1

NUT

M12

24шт.

1012729C1

WASHER

M12 x M26 x M3.2

24шт.

988891C1

WASHER

M12 lock

24шт.

3

974519C1

WEIGHT

front end

4шт.

1014927C1

BOLT

BOLT, weight

8шт.

1014954C1

WASHER

M14 lock

8шт.

Выбрано товаров: 17
