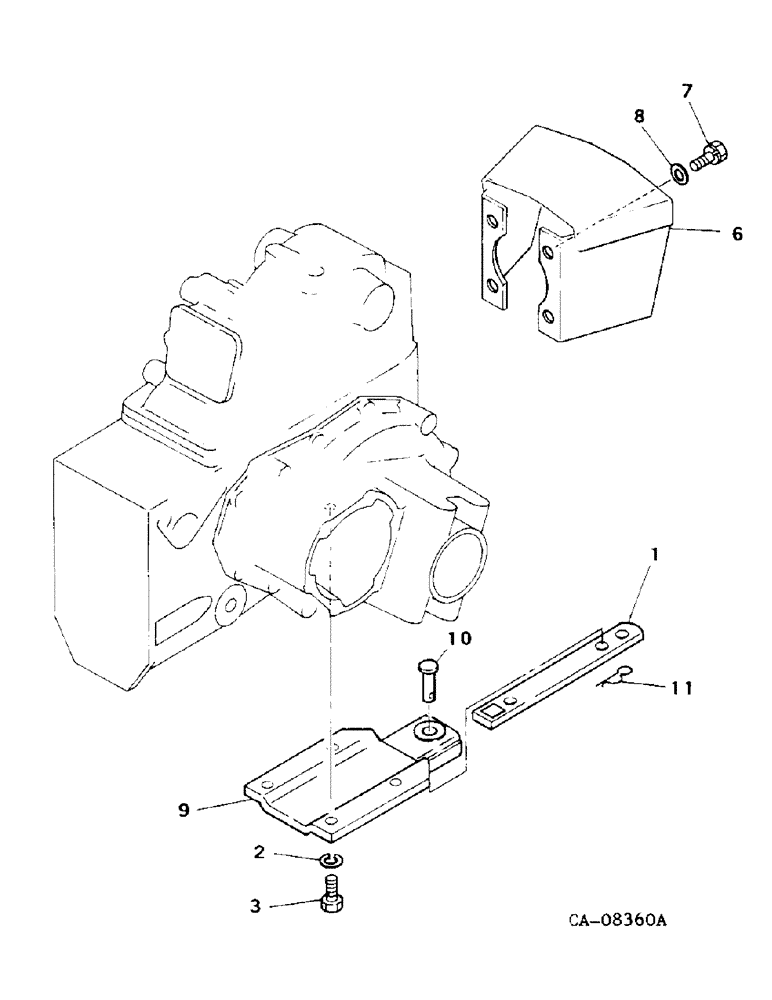

Запчасти Case IH 254 (09-02) - FRAME, DRAWBAR AND PTO SHIELD, 244 AND 254 (12) - FRAME

1

1275106C1

BAR

DRAWBAR

1шт.

2

933966R1

LOCK WASHER,M12

WASHER, 12 mm lock

4шт.

3

628-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

4шт.

4

(Not used this application)

1шт.

5

(Not used this application)

1шт.

6

1269601C1

COVER ASSY

COVER, PTO, shield

1шт.

7

30221R1

BOLT,Hex, M14 x 2 x 25mm, Cl 8.8, Full Thd

M14 x 25 class 8.8

4шт.

8

933967R1

LOCK WASHER,M14

WASHER, 14 mm lock

4шт.

9

1271701C1

BRACKET

drawbar mounting

1шт.

10

21957R1

HEADED PIN,5/8" x 2"

PIN, 5/8 x 2. HD type 1

1шт.

11

153528C1

COTTER PIN

quick attachable cotter

1шт.
