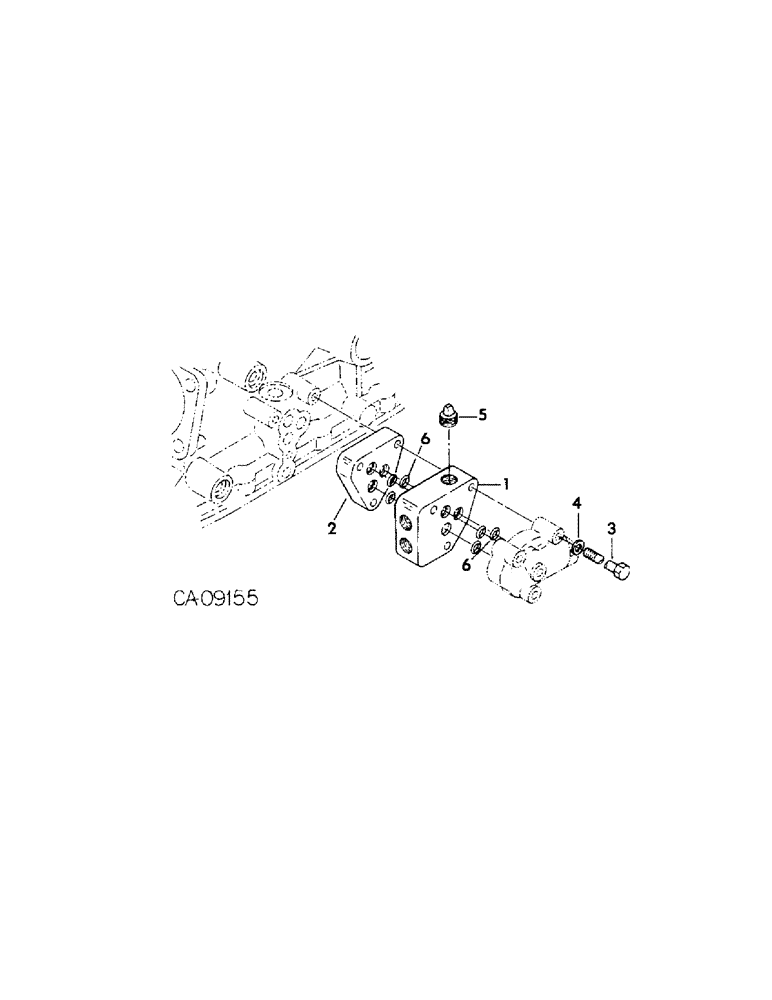

Запчасти Case IH 254 (10-23) - HYDRAULICS, HYDRAULIC ADAPTER PACKAGE, 244 AND 254 TRACTORS (07) - HYDRAULICS

1288102C92

STRIPPER PACKAGE

PACKAGE, hydraulic adapter, consists of the following parts

1шт.

1

1288103C1

ADAPTER

hydraulic (NSS)

1шт.

2

1288098C1

SPACER

auxiliary valve

1шт.

3

30016R1

BOLT,Hex, M8 x 1.25 x 90mm, Cl 10.9

M8 x 90 PHC class 10.9

3шт.

4

934309R1

LOCK WASHER,M8

WASHER, 8 mm lock

3шт.

5

103885

PLUG,Slotted, 3/8" NPT

3/8 pln slt/hdl pipe

1шт.

6

1282749C1

O-RING

O-RING, size 12, instructions (NSS)

6шт.
