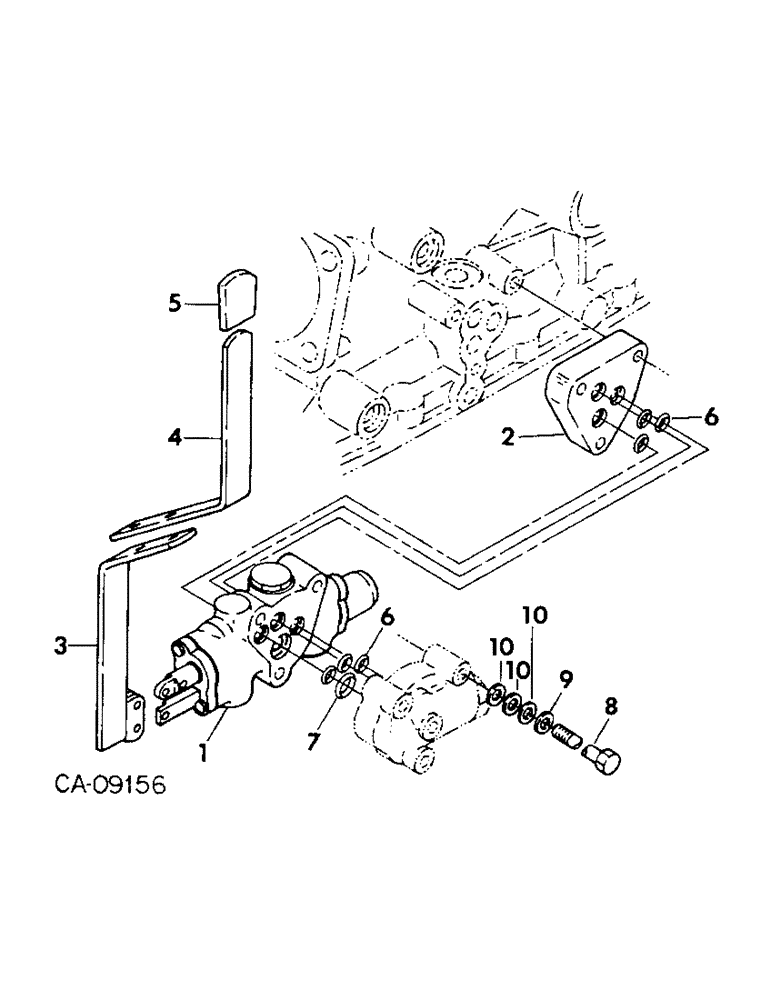

Запчасти Case IH 254 (10-22) - HYDRAULICS, DOUBLE ACTING AUXILIARY VALVE PACKAGE (07) - HYDRAULICS

1288096C92

STRIPPER PACKAGE

PACKAGE, double acting auxiliary valve, consists of the following parts

1шт.

1

VALVE ASSY, double acting auxiliary (NSS)

1шт.

2

1288098C1

SPACER

auxiliary valve

1шт.

3

1288099C1

LEVER

lower auxiliary valve

1шт.

4

1288100C1

LEVER

upper auxiliary valve

1шт.

628-8020

BOLT,Hex, M8 x 20, 10.9, Full Thd

M8 x 20 class 8.8

2шт.

934309R1

LOCK WASHER,M8

WASHER, 8 mm lock

2шт.

30986R1

NUT,M8 x 1.25, Flg, Cl 8

M8 class 10 h/flg

2шт.

5

1273379C1

KNOB

lever

1шт.

6

1282749C1

O-RING

O-RING, size 12

6шт.

7

1288101C1

O-RING

O-RING, size 16

1шт.

8

30018R1

BOLT,Hex, M8 x 1.25 x 110mm, Cl 10.9

M8 x 110 PHC class 10.9, double acting valve only

3шт.

8

930915R1

BOLT,Hex, M8 x 1.25 x 140mm, Cl 8.8

M8 x 140 pln class 8.8, double acting valve & adapter

3шт.

9

934309R1

LOCK WASHER,M8

WASHER, 8 mm lock

3шт.

10

934675R1

WASHER,M8 x 16 x 1.6

8.8 x 17 x 1.6 mm , INSTRUCTIONS (NSS)

1шт.
