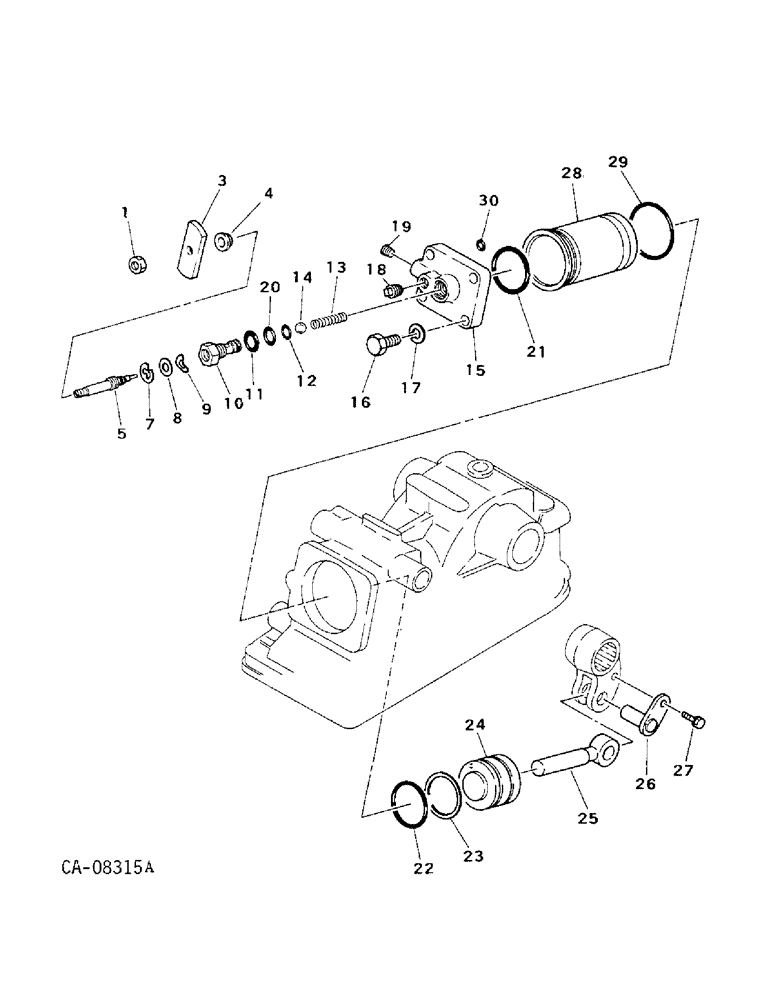

Запчасти Case IH 254 (10-21) - HYDRAULICS, HYDRAULIC CYLINDER, 244 AND 254 (07) - HYDRAULICS

1

31082R1

NUT,M8 x 1.25, Flg, Cl 8

M8 class 10 PHC flg

1шт.

2

(Not used this application)

1шт.

3

1275049C1

BAR

stop

1шт.

4

1275050C3

SPACER

bushing

1шт.

5

1275051C2

SCREW,M8 x 1.25 x 13.5mm

1шт.

6

(Not used this application)

1шт.

7

1273592C1

CIRCLIP,M11

RING, snap

1шт.

8

933587R1

WASHER,M12 x 24 x 2.5

13.3 x 24 x 2.5 mm

1шт.

9

1275052C1

WAVE WASHER

1шт.

10

1275053C1

UNION

1шт.

11

1273524C1

O-RING

O-RING

1шт.

12

1273522C1

O-RING

O-RING

1шт.

13

1275044C1

VALVE SPRING

SPRING

1шт.

14

17014R1

BALL

7/16 grade 25 metal

1шт.

15

1275055C1

END ASSY.

END, cylinder, head

1шт.

16

615-14045

BOLT,Hex, M14 x 2 x 45mm, Cl 8.8, Full Thd

M14 x 45 PHC class 8.8

4шт.

17

933967R1

LOCK WASHER,M14

WASHER, 14 mm lock

4шт.

18

103885

PLUG,Slotted, 3/8" NPT

3/8 pln slt/hdl pipe

1шт.

19

143992

PLUG,Slotted, 1/4" NPT

1/4 znp slt/hdl pipe

1шт.

20

1273521C1

O-RING

O-RING

1шт.

21

1269890C1

O-RING

O-RING

1шт.

22

1269883C1

O-RING

O-RING

1шт.

23

1275056C1

RING

back-up

1шт.

24

1275057C2

PISTON ASSY.

PISTON ASSY

1шт.

25

1275058C1

ROD

piston

1шт.

1275194C1

BUSHING

piston rod

1шт.

26

1275059C1

AXLE PIN

PIN, hydraulic

1шт.

Ref the power arm shown w/ref. 26 going into is seen on 7-19 p/n is 1269863C1.

1шт.

27

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

1шт.

934309R1

LOCK WASHER,M8

WASHER, 8 mm lock

1шт.

28

1275060C2

SLEEVE CYLINDER

SLEEVE, cylinder

1шт.

29

1275061C1

O-RING,79.5mm ID x 83.5mm OD x 20mm

O-RING

1шт.

30

1273523C1

O-RING

O-RING

1шт.
