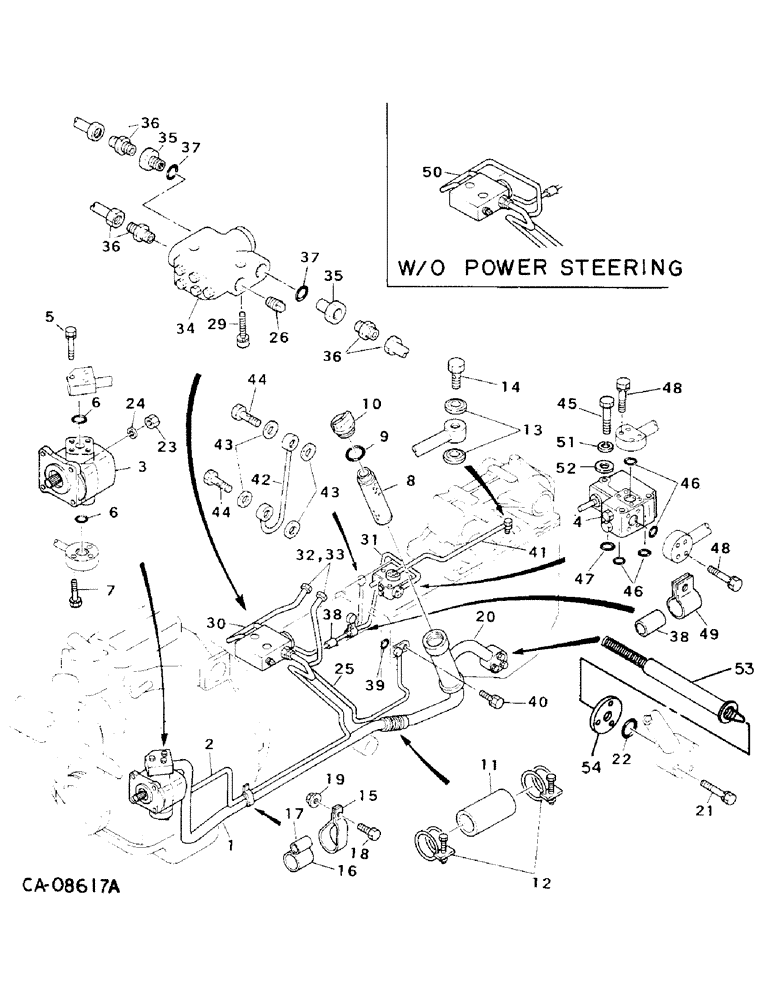

Запчасти Case IH 254 (10-11) - HYDRAULICS, HYDRAULIC SUPPLY, SYNCHROMESH TRANSMISSION (07) - HYDRAULICS

1

1273436C1

TUBE

suction

1шт.

2

1282976C1

TUBE

pressure, replaces 1282711C1

1шт.

3

1282801C1

PUMP

ASSY, hydraulic, replaces 1282712C91

1шт.

4

1282708C91

VALVE

control divider

1шт.

5

86977790

BOLT,Hex, M6 x 45mm, Cl 8.8

M6 x 45 mm class 8.8 H/HD

3шт.

933833R1

LOCK WASHER,M6

WASHER, 6 mm lock

3шт.

6

1269871C1

O-RING,17.8mm ID x 2.4mm Width

2шт.

7

86977789

BOLT,Hex, M6 x 1.0 x 35mm, Cl 8.8

4шт.

933833R1

LOCK WASHER,M6

WASHER, 6 mm lock

4шт.

8

1273138C1

STRAINER ELEMENT

FILTER

1шт.

9

1269881C1

O-RING

O-RING

1шт.

10

1273411C1

PLUG

filter

1шт.

11

HOSE, furnish 2.75 in./70 mm from bulk roll marked 637728C1

1шт.

12

681896C1

HOSE CLAMP,#20, .81/1.75 Type F Worm, W/liner

CLAMP, no. 20 shoe type hose

2шт.

13

1282713C1

SEALING WASHER

SEAL, washer

2шт.

14

1282526C1

BOLT,M16 x 1.5 x 30mm

BOLT, union

1шт.

15

1273415C1

CLAMP

tube

1шт.

16

1273416C1

HOSE,25.00 mm ID x 35.00 mm

- Cushion, Tube 25.00 mm ID x 35.00 mm

1шт.

17

1273417C1

HOSE,10.00 mm ID x 35.00 mm

- Cushion, Tube 10.00 mm ID x 35.00 mm

1шт.

18

1273394C1

BOLT,Hex, M10 x 1.25 x 25mm

1шт.

19

825-11410

NUT,M10 x 1.25, Cl 8

flange

1шт.

20

1273418C1

TUBE

suction

1шт.

21

43130

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

M8 x 50 class 8.8

3шт.

934309R1

LOCK WASHER,M8

WASHER, 8 mm lock

3шт.

22

1269875C1

O-RING

1шт.

23

30167R1

NUT,M8, Cl 10

M8 PHC class 10

4шт.

24

934309R1

LOCK WASHER,M8

WASHER, 8 mm lock

4шт.

25

1282709C1

TUBE

drain, power steering only

1шт.

26

1282720C1

PLUG

1шт.

27

(Not used in this application)

1шт.

28

(Not used in this application)

1шт.

29

30335R1

BOLT,Hex, M6 x 1 x 55mm, Cl 8.8

M6 x 55 pln class 8.8

2шт.

933833R1

LOCK WASHER,M6

WASHER, 6 mm lock

2шт.

30

1275151C1

PIPE

TUBE, power steering only

1шт.

31

1282710C1

TUBE

pressure

1шт.

32

1275154C1

NUT

power steering only

2шт.

33

1275155C1

SLEEVE

power steering only

2шт.

34

1275156C91

LOCK VALVE

VALVE ASSY, flow divider, for components, see detail list

1шт.

35

1272157C2

NUT, union

2шт.

36

1275158C1

COUPLING

3шт.

37

1269874C1

O-RING

O-RING

2шт.

38

1282727C1

TUBE

PIPE

2шт.

39

1273520C1

O-RING

O-RING

1шт.

40

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

1шт.

934309R1

LOCK WASHER,M8

WASHER, 8 mm lock

1шт.

41

1282722C1

TUBE,12 mm OD, 259.5, 70 mm Length

1шт.

42

1282723C1

TUBE,8 mm OD, 122, 20 mm Length

1шт.

43

1282724C1

GASKET

TUBE

4шт.

44

1282725C1

BOLT,Hex, M10 x 1.25 x 20mm, Drilled

BOLT, eye

2шт.

45

1282728C1

BOLT,M8 x 55mm

M8 x 55

3шт.

46

1273793C1

O-RING

O-RING

4шт.

47

1269872C1

O-RING

1шт.

48

31048R1

BOLT,Hex Flange, M6 x 1.0 x 30mm, Grade 8.8

M6 x 30 PHC cl 8.8 FLG/HD

8шт.

933833R1

LOCK WASHER,M6

WASHER, 6 mm lock

8шт.

49

1273693C1

CLAMP

1шт.

50

1282726C1

PIPE

TUBE, manual steering only

1шт.

51

934309R1

LOCK WASHER,M8

WASHER, 8 mm lock

3шт.

52

934675R1

WASHER,M8 x 16 x 1.6

8.8 x 17 x 1.6 mm

3шт.

53

1288389C1

TUBE,18.5 mm Diameter, 300 mm Length

oil suction extension

1шт.

54

1288390C1

RETAINER

suction tube ext.

1шт.
