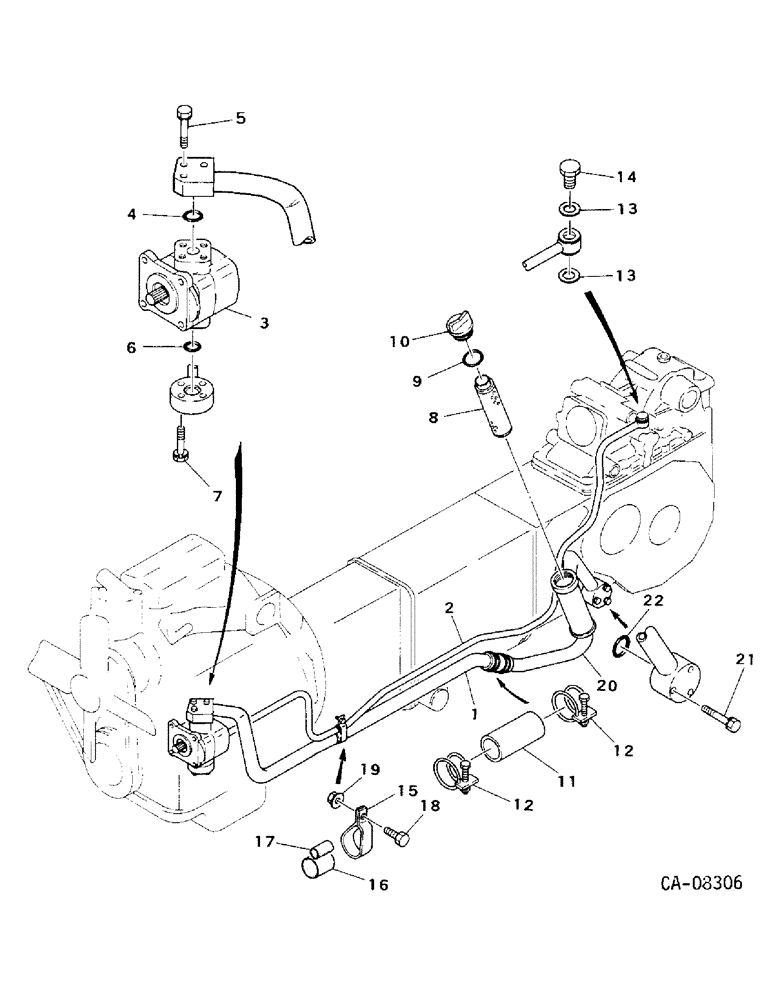

Запчасти Case IH 254 (10-05) - HYDRAULICS, HYDRAULIC SUPPLY, MANUAL STEERING, CONSTANT MESH GEAR TRANSMISSION, 244 AND 254 (07) - HYDRAULICS

1

1273436C1

TUBE

suction, replaces 1273408C1

1шт.

2

1282753C1

TUBE

supply, replaces 1273409C1 on 244 tractors w/serial no. 008461 and below, 254 tractors w/serial no. 008387 and below by also ordering union bolt, 1282526C1 and two seal washers, 1282713C1

1шт.

3

1273410C91

PUMP

ASSY, hydraulic, only serviceable part is kit, 1273407C1

1шт.

934309R1

LOCK WASHER,M8

WASHER, 8 mm lock

4шт.

30167R1

NUT,M8, Cl 10

M8 PHC class 10

4шт.

1273407C1

SEAL KIT

seal repair

1шт.

4

1269871C1

O-RING,17.8mm ID x 2.4mm Width

replaces 1269872C1

1шт.

5

86977790

BOLT,Hex, M6 x 45mm, Cl 8.8

M6 x 45 mm class 8.8

3шт.

933833R1

LOCK WASHER,M6

WASHER, 6 mm lock

3шт.

6

1269871C1

O-RING,17.8mm ID x 2.4mm Width

1шт.

7

86977789

BOLT,Hex, M6 x 1.0 x 35mm, Cl 8.8

4шт.

933833R1

LOCK WASHER,M6

WASHER, 6 mm lock

4шт.

8

1273138C1

STRAINER ELEMENT

FILTER

1шт.

9

1269881C1

O-RING

O-RING

1шт.

10

1273411C1

PLUG

filter

1шт.

11

HOSE, furnish 2-3/4 in./70 mm from a bulk roll marked 637728C1, replaces 1273412C1

1шт.

12

681896C1

HOSE CLAMP,#20, .81/1.75 Type F Worm, W/liner

CLAMP, no. 20 shoe type f hose

2шт.

13

1273413C1

SEALING WASHER

washer, 244 tractors w/serial no. 008461 and below, 254 tractors w/serial no. 008367 and below

2шт.

13

1282713C1

SEALING WASHER

SEAL, washer, 244 tractors w/serial no. 008462 and above, 254 tractors w/serial no. 008388 and above

1шт.

14

1273414C1

BOLT,Hex, M16 x 25mm, Drilled

BOLT, union, 244 tractors w/serial no. 008461 and below, 254 tractors w/serial no. 008387 and below

1шт.

14

1282526C1

BOLT,M16 x 1.5 x 30mm

BOLT, union, 244 tractors w/serial no. 008462 and above, 254 tractors w/serial no. 008388 and above

1шт.

15

1273415C1

CLAMP

tube

1шт.

16

1273416C1

HOSE,25.00 mm ID x 35.00 mm

- Cushion, Tube 25.00 mm ID x 35.00 mm

1шт.

17

1273417C1

HOSE,10.00 mm ID x 35.00 mm

- Cushion, Tube 10.00 mm ID x 35.00 mm

1шт.

18

1273394C1

BOLT,Hex, M10 x 1.25 x 25mm

1шт.

19

825-11410

NUT,M10 x 1.25, Cl 8

flange

1шт.

20

1273418C1

TUBE

suction

1шт.

21

43130

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

M8 x 50 class 8.8

3шт.

934309R1

LOCK WASHER,M8

WASHER, 8 mm lock

3шт.

22

1269875C1

O-RING

1шт.
