Запчасти Case IH 254 (08-04) - ELECTRICAL, ELECTRICAL WIRING AND BATTERY, 244 AND 254 (06) - ELECTRICAL

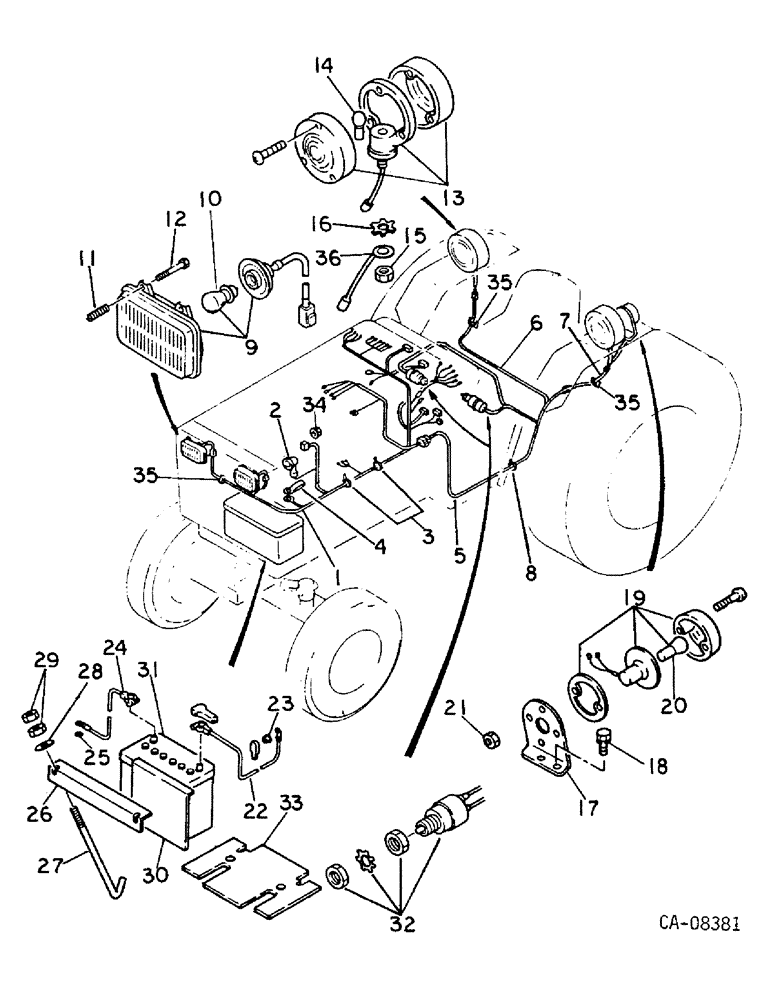

Схема запчастей Case IH 254 - (08-04) - ELECTRICAL, ELECTRICAL WIRING AND BATTERY, 244 AND 254 (06) - ELECTRICAL
27
36
5
2
30
10
28
35
20
29
32
11
19
8
34
23
7
22
35
4
14
6
3
21
26
15
24
12
25
17
24
33
18
9
13
35
16

Артикул

Название

Примечание

Количество

1

1265148C3

HARNESS

main cable, (A)

1шт.

2

1271727C1

INSULATOR

terminal cap

1шт.

3

111619C1

STRAP

tie

5шт.

4

1273580C1

CLAMP

4шт.

5

1265157C2

HARNESS

(B)

1шт.

6

1265158C1

HARNESS

(C)

1шт.

7

1265159C1

HARNESS

(D)

1шт.

8

111619C1

STRAP

tie

1шт.

9

1271730C91

LIGHT

HEADLIGHT ASSY

2шт.

10

1271731C1

BULB

2шт.

11

1271733C1

VALVE SPRING

SPRING, headlight adjusting

6шт.

12

30290R1

SCREW,Cross Pan Hd, M5 x 20

M5 x 20 class 4.8 P/HDCR

6шт.

13

1271734C91

LIGHT ASSY.

LIGHT ASSY, signal, includes ref no. 14

2шт.

14

9417866

BULB,C6, #1156, 12.8V

LAMP, type C-6 trade #1156

2шт.

15

30284R1

NUT,M10, Cl 10

M10 class 10

2шт.

16

934494R1

WASHER,Ext Tooth, M10

no. 10 mm ext tooth lock

2шт.

17

1265152C1

BRACKET

tail light

1шт.

18

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

2шт.

934309R1

LOCK WASHER,M8

WASHER, 8 mm lock

2шт.

934675R1

WASHER,M8 x 16 x 1.6

8.8 x 17 x 1.6 mm

2шт.

19

1271739C91

LIGHT

tail, includes ref no. 20

1шт.

20

142450

BULB,C2R, #67, 13.5V

LAMP, type C-2R trade #67

1шт.

21

934871R1

NUT,M5, Cl 5

M5 class 5

2шт.

22

1271745C1

CABLE

Battery & Boot,- Positive

1шт.

1275499C1

CLAMP

battery cable

1шт.

23

31082R1

NUT,M8 x 1.25, Flg, Cl 8

M8 class 10 PHC flg

1шт.

24

1271748C1

CABLE

battery, negative

1шт.

25

934488R1

LOCK WASHER,Ext Tooth, M8

WASHER, no. 8 mm pln ext tooth lock

2шт.

30167R1

NUT,M8, Cl 10

M8 PHC class 10

1шт.

934309R1

LOCK WASHER,M8

WASHER, 8 mm lock

1шт.

26

1271760C1

ANGLE

battery hold-down

1шт.

27

1271761C1

BOLT,M6 x 1 x 275mm

BOLT, battery hold down

2шт.

28

934948R1

WASHER,M6

6.4 x 12.5 x 1.6 mm

2шт.

29

30281R1

NUT,M6, Cl 10

M6 class 10

4шт.

30

1271751C2

SUPPORT, battery side plate

1шт.

31

A186013

DRY BATTERY

12 volt maintenance free

1шт.

32

1271754C1

IGNITION SWITCH

SWITCH ASSY, safety

2шт.

33

1271762C1

COVER

dust

1шт.

34

934871R1

NUT,M5, Cl 5

M5 class 5

1шт.

35

1269607C1

CLIP

cable

7шт.

36

CABLE, signal light, use 8.07 in/205 mm from bulk roll wire, 995056R1, plus one terminal, 54773R1, one terminal, 244058R1 and two terminals, 165565R1 or 238100R1 or 915073R1

2шт.

Выбрано товаров: 41
