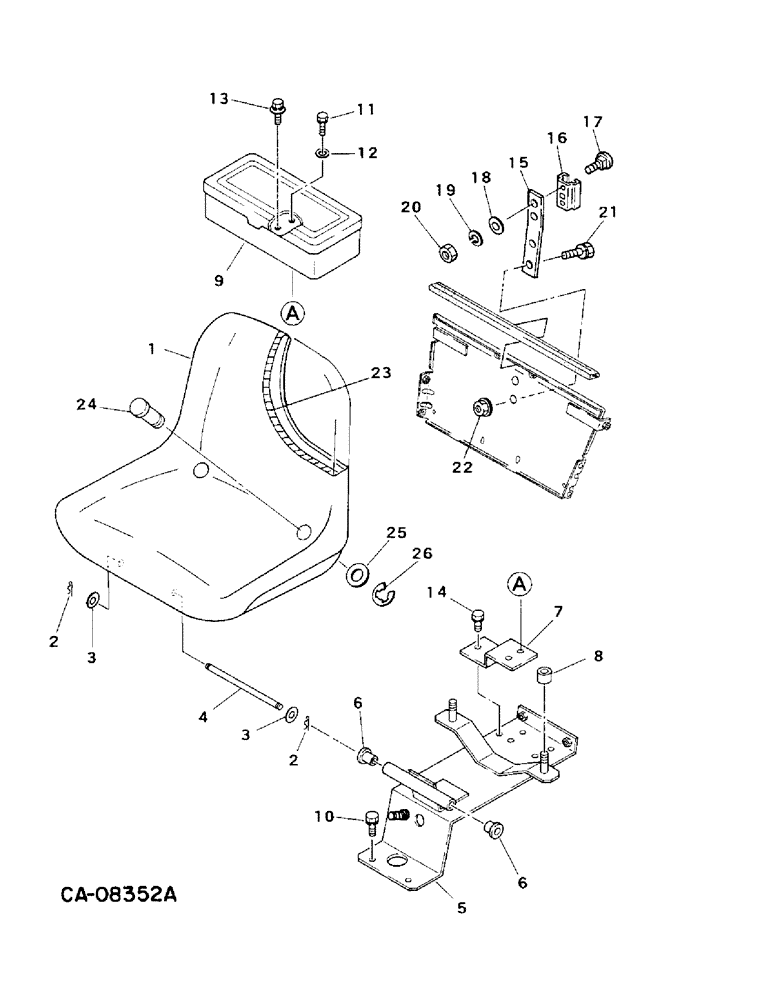

Запчасти Case IH 254 (13-14[1]) - SUPERSTRUCTURE, ROLL OVER PROTECTIVE STRUCTURE (05) - SUPERSTRUCTURE

1

1273591C91

SEAT

ASSY, includes ref nos 23 - 26

1шт.

2

1269735C1

AXLE PIN

PIN, snap

2шт.

3

30282R1

WASHER,M10 x 20 x 2

10.8 x 21 x 2mm

2шт.

4

1273595C1

PIN

seat hinge

1шт.

5

1287562C1

SUPPORT

seat & tool box bracket, replaces 1269724C2 by also ordering screw, 1275051C2

1шт.

6

1269725C1

BUSHING

seat hinge

2шт.

7

1273596C1

SUPPORT

tool box bracket

1шт.

8

1269727C1

INSULATOR

seat cushion

2шт.

9

1269728C1

BOX

TOOL BOX

1шт.

10

1269790C1

BOLT,Hex M10 x 25mm

BOLT W/WASHER

4шт.

11

628-8020

BOLT,Hex, M8 x 20, 10.9, Full Thd

M8 x 20 class 8.8

1шт.

934309R1

LOCK WASHER,M8

WASHER, 8 mm lock

1шт.

12

30326R1

WASHER,M8 x 17.5 x 2, HT

8.8 x 17 x 2mm

1шт.

13

628-8020

BOLT,Hex, M8 x 20, 10.9, Full Thd

M8 x 20 class 8.8

1шт.

934309R1

LOCK WASHER,M8

WASHER, 8 mm lock

1шт.

14

1269790C1

BOLT,Hex M10 x 25mm

BOLT W/WASHER

2шт.

15

1273597C1

SUPPORT ASSY.

SUPPORT, SMV

1шт.

16

398976R1

BRACKET

SUPPORT, SMV

1шт.

17

30473R1

CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 16mm, Cl 8.8

BOLT, M8 x 16 crg class 8.8

2шт.

18

934675R1

WASHER,M8 x 16 x 1.6

8.8 x 17 x 1.6mm

2шт.

19

934309R1

LOCK WASHER,M8

WASHER, 8 mm lock

2шт.

20

31082R1

NUT,M8 x 1.25, Flg, Cl 8

M8 class 10 PHC flg

2шт.

21

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

2шт.

22

31082R1

NUT,M8 x 1.25, Flg, Cl 8

M8 class 10 PHC flg

2шт.

23

COVER ASSY, seat, order kit, 1275195C91

1шт.

24

1273593C1

PIN

retaining

2шт.

25

933571R1

WASHER,M14 x 28 x 2.5

15.3 x 28 x 2.5mm

2шт.

26

1273592C1

CIRCLIP,M11

RING, snap

2шт.

1275195C91

KIT

seat covering service, this kit provides all material and hardware required to re-upholster one seat

1шт.

ROLLBAR ASSY, painted, not serviced separately

1шт.

537339R1

SAFETY BELT

SAFETY BELT

1шт.

70773C1

DECAL

PRODUCT GRAPHIC, caution, seat belt

1шт.

1276208C1

BOLT,Hex, M12 x 1.25 x 40mm, Cl 10.9

hex hd 12mm-1.25 x 40mm gr 10.9 zinc plated, 6 for 234 tractors

1шт.

1276209C1

BOLT,Hex, M14 x 2 x 35mm, Cl 10.9

hex hd 14mm-2.0 x 35mm gr 10.9 zinc plated, 8 for 244 and 254 tractors

1шт.

BRACKET ASSY, tool box, not serviced separately, 244 and 254 tractors

1шт.
