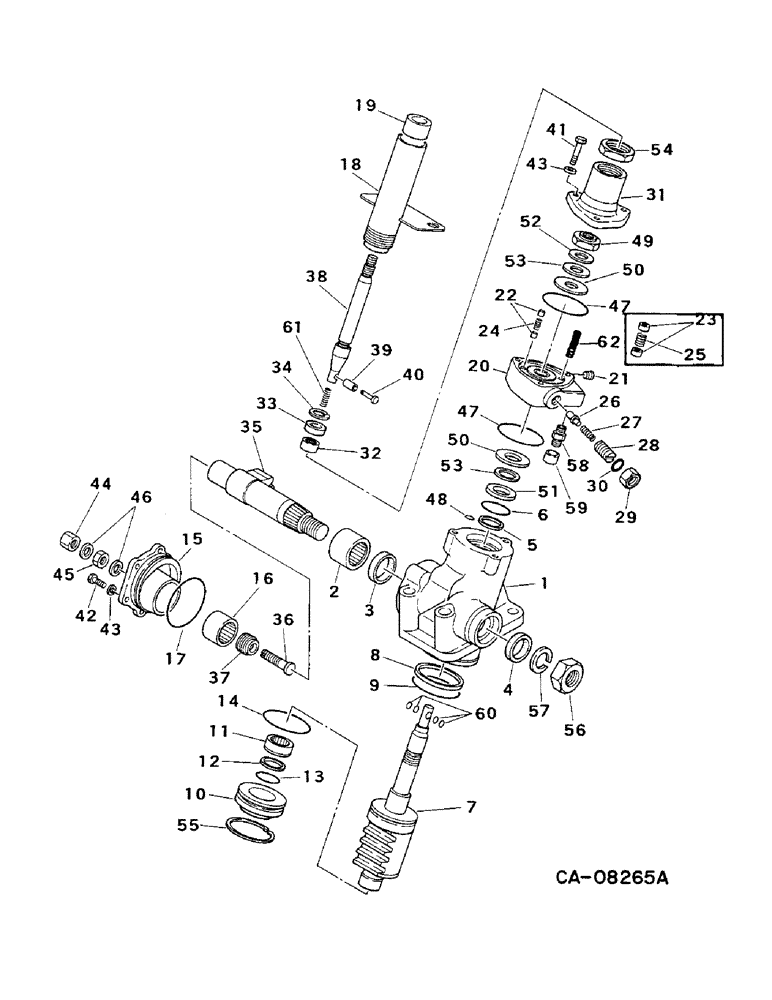

Запчасти Case IH 254 (05-08) - STEERING, STEERING GEAR BOX, 244 AND 254 WITH POWER STEERING (04) - STEERING

1275145C91

BOX

STEERING GEAR BOX ASSY

1шт.

1

1275430C91

HOUSING

ASSY, gear box, includes ref nos 2 - 6

1шт.

2

1275364C91

NEEDLE BEARING

BEARING

1шт.

3

SEAL, packing (NSS), order package, 1275450C1

1шт.

4

1275366C1

OIL SEAL

SEAL, oil

1шт.

5

RING (NSS), order package, 1275450C1

1шт.

6

O-RING (NSS), order package, 1275450C1

1шт.

7

1275449C1

STRIPPER PACKAGE

PACKAGE, gear service, includes ref nos 35, 36 and 37

1шт.

8

SEAL (NSS), order package, 1275450C1

1шт.

9

O-RING (NSS), order package, 1275450C1

1шт.

10

1275432C91

COVER ASSY

front, includes ref nos 11 - 14

1шт.

11

1275382C1

NEEDLE BEARING

1шт.

12

RING (NSS), order package, 1275450C1

1шт.

13

O-RING (NSS), order package, 1275450C1

1шт.

14

O-RING (NSS), order package, 1275450C1

1шт.

15

1275384C1

COVER ASSY

COVER, side

1шт.

16

1275385C1

NEEDLE BEARING

1шт.

17

O-RING (NSS), order package, 1275450C1

1шт.

18

1275386C1

SHAFT HOUSING

SHAFT, column

1шт.

19

1275387C1

BUSHING

shaft

1шт.

20

HOUSING ASSY, valve (NSS), order 1275145C91

1шт.

21

1275396C1

PLUG

2шт.

22

1275388C1

PISTON ASSY.

PISTON

4шт.

23

1275389C1

PISTON

(see note A)

4шт.

24

1275390C1

VALVE SPRING

SPRING

2шт.

25

1275391C1

SPRING

(see note A)

2шт.

26

1275393C1

VALVE

poppet (see note A)

1шт.

26

1282965C1

LOCK VALVE

VALVE, poppet (see note B)

1шт.

27

1275394C1

VALVE SPRING

SPRING

1шт.

28

1275392C1

SCREW,M20 x 1.5 x 15mm

(see note A)

1шт.

28

1282966C1

SCREW,M22 x 1.5 x 19mm

(see note B)

1шт.

29

1275395C1

NUT,M18, 1.5mm Pitch, 12.50mm High

screw (see note A)

1шт.

29

1282967C1

NUT,M22 x 1.5 x 30mm

screw (see note B)

1шт.

30

O-RING (NSS), order package, 1275450C1

1шт.

31

1275434C91

COVER ASSY

rear, includes ref nos 32, 33 and 34

1шт.

32

1275398C1

NEEDLE BEARING

1шт.

33

1275399C1

OIL SEAL

SEAL, oil

1шт.

34

933110R1

SNAP RING,M32, Int

RING, 34, 15 mm int ret, replaces 1275401C1

1шт.

35

1275402C1

SHAFT HOUSING

SHAFT

1шт.

36

SCREW (NSS), order package, 1275449C1

1шт.

37

ADJUSTER (NSS), order package, 1275449C1

1шт.

38

1275405C1

SHAFT HOUSING

SHAFT ASSY, steering

1шт.

39

31258R1

LOCK PIN,M5 x 18, Slotted

PIN, spring, replaces 1275406C1

1шт.

40

1275407C1

RIVET

1шт.

41

1275408C1

BOLT

cover

3шт.

42

30020R1

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

M10 x 25 PHC class 10.9, side cover, replaces 1275409C1

4шт.

43

933965R1

LOCK WASHER,M10

7шт.

44

1275410C1

NUT

1шт.

45

1275411C1

NUT

1шт.

46

SEAL (NSS), packing, order package, 1275450C1

2шт.

47

O-RING (NSS), order package 1275450C1

2шт.

48

O-RING (NSS), order package 1275450C1

2шт.

49

1275413C1

NUT

1шт.

50

1275414C1

WASHER

2шт.

51

1275415C1

WASHER

1шт.

52

1275416C1

WASHER

1шт.

53

1275417C1

NEEDLE BEARING

BEARING

2шт.

54

1275418C1

NUT

1шт.

55

934444R1

SNAP RING,M63, Int

RING, 66.74 mm int ret, replaces 1275400C1

1шт.

56

1275419C1

NUT

1шт.

57

30510R1

LOCK WASHER,M22

WASHER, 22mm lock

1шт.

58

1275420C1

CONNECTOR, ELEC

CONNECTOR

2шт.

59

1275421C1

PLUG

2шт.

60

O-RING (NSS), order package, 1275450C1

4шт.

61

1275423C1

VALVE SPRING

SPRING

1шт.

62

1282964C1

VALVE SPRING

SPRING (see note B)

2шт.

1275450C1

STRIPPER PACKAGE

PACKAGE, overhaul sealing service, consists of ref nos 3, 5, 6, 8, 9, 12, 13, 14, 17, 30, 46, 47, 48 and 60

1шт.
