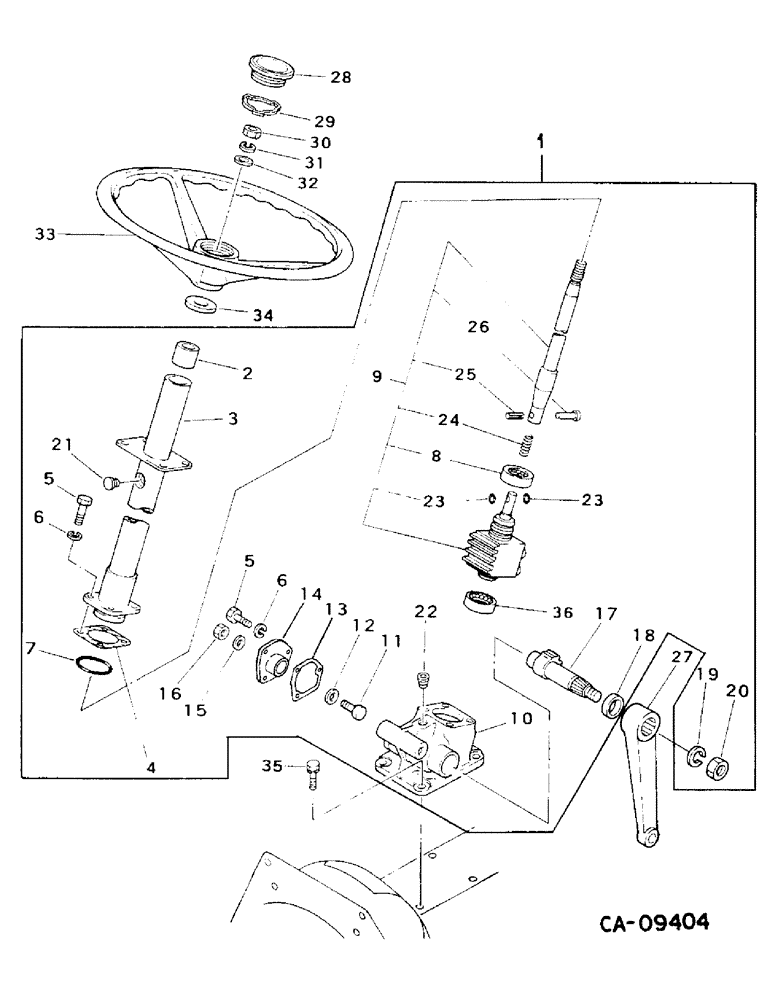

Запчасти Case IH 254 (05-05) - STEERING, STEERING GEAR, STEERING WHEEL, PITMAN ARM & CONNECTIONS, 244 AND 254 WITH MANUAL STEERING (04) - STEERING

1

1287577C91

TRANSFER BOX

GEAR BOX ASSEMBLY, steering, includes ref nos 2 - 26, replaces 1273236C91

1шт.

2

1273665C1

BUSHING

column

1шт.

3

1287578C1

SHAFT

steering, column

1шт.

4

SHIM KIT (NSS), order package, 1275479C2

1шт.

5

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

8шт.

6

934309R1

LOCK WASHER,M8

WASHER, 8 mm lock

8шт.

7

O-RING (NSS), order package, 1275479C2

1шт.

8

1273670C91

BALL BEARING,25mm ID x 38mm OD x 11mm W

Bearing

1шт.

9

BALL-NUT ASSY (NSS), order package, 1287596C91, 577.0 mm long

1шт.

The 234 uses Ref. 9 that is 515.0 mm. The 244 & 254's use one 577.0 mm Long

1шт.

10

1275373C1

HOUSING

gear box

1шт.

11

1273676C1

ADJUSTMENT SCREW,M10 x 1.25 x 37mm

SCREW, adjusting

1шт.

12

SHIM, adj screw (NSS), order package, 1275479C2

1шт.

13

GASKET, side cover (NSS), order package, 1275479C2

1шт.

14

1287597C1

COVER ASSY

COVER, side

1шт.

15

WASHER, seal (NSS), order package, 1275479C2

1шт.

16

825-11410

NUT,M10 x 1.25, Cl 8

1шт.

17

SHAFT, sector (NSS), order package, 1287596C91, 15 teeth

1шт.

18

1273682C1

OIL SEAL

SEAL, oil

1шт.

19

933815R1

LOCK WASHER,M20

WASHER, 20 mm lock

1шт.

20

100085

NUT,M20 x 1.5, Cl 8

1шт.

21

1273683C1

BREATHER

column

1шт.

22

1273684C1

PLUG

taper

1шт.

23

O-RING (2), order overhaul package, 1275479C2 or gear package, 1287596C91 (NSS)

1шт.

24

SPRING (NSS), order package, 1287596C91

1шт.

25

PIN (NSS), order package, 1287596C91

1шт.

26

RIVET (NSS), order package, 1287596C91

1шт.

27

1273234C1

ARM

pitman

1шт.

28

1273228C1

CAP

wheel

1шт.

29

1273230C1

RING

snap

1шт.

30

1282721C1

NUT

replaces 1269786C1

1шт.

31

933967R1

LOCK WASHER,M14

WASHER, 14 mm lock

1шт.

32

30408R1

WASHER,M12 x 28.5 x 3, HT

15.3 x 28 x 3 mm PHC

1шт.

33

1273232C1

WHEEL

steering

1шт.

34

1273231C1

COVER ASSY

cover

1шт.

35

1269777C1

BOLT,M10 x 30mm

M10 x 30

4шт.

36

BEARING (NSS), order package, 1287596C91

1шт.

1275479C2

STRIPPER PACKAGE

PACKAGE, overhaul sealing, consists of ref nos 4, 7, 12, 13, 15 and 23

1шт.

1287596C91

STRIPPER PACKAGE

Package, gear service, consists of ref nos 9 and 17

1шт.
