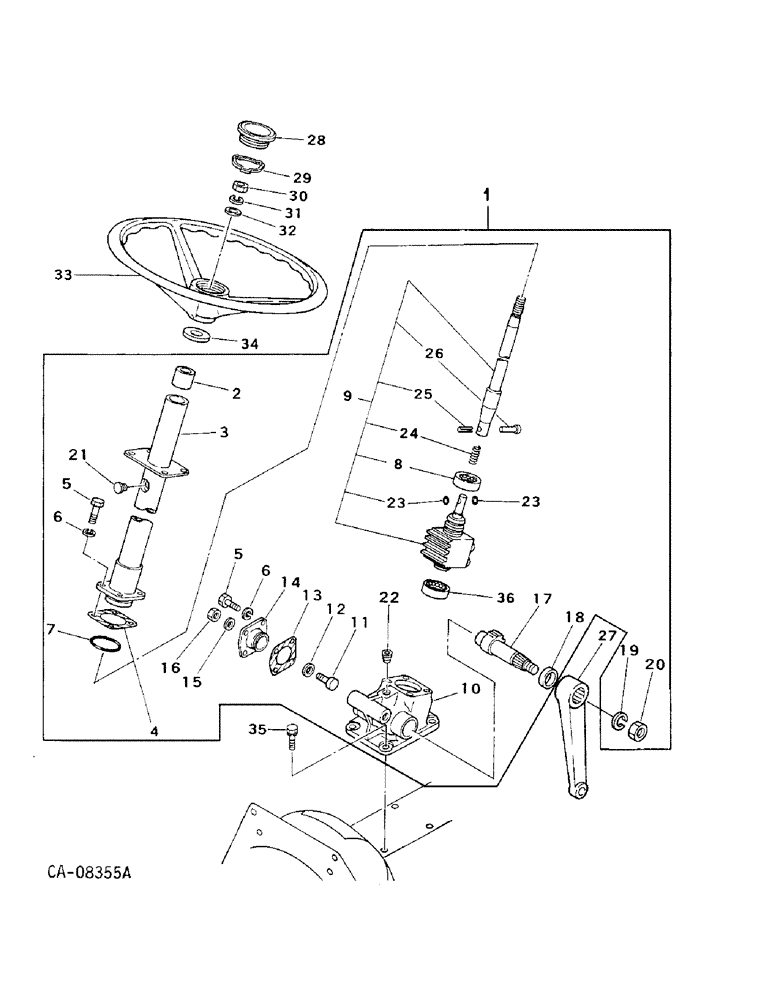

Запчасти Case IH 254 (05-03) - STEERING, STEERING GEAR, STEERING WHEEL, PITMAN ARM & CONNECTIONS, 244 AND 254 WITH MANUAL STEERING (04) - STEERING

1

1273236C91

BOX

STEERING GEAR BOX ASSY, includes ref nos 2 - 26, order gear box 1287577C91

1шт.

2

1273665C1

BUSHING

column

1шт.

3

1273663C1

SHAFT

steering, column

1шт.

4

SHIM SET, order package, 1275479C2 (NSS)

1шт.

5

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

8шт.

6

934309R1

LOCK WASHER,M8

WASHER, 8 mm lock

8шт.

7

O-RING, order package, 1275479C2 (NSS)

1шт.

9

BALL-NUT ASSY, order package, 1275481C1 (NSS) 577.0 mm Long

1шт.

The 234 uses Ref. 9 that is 515.0 mm. The 244 & 254's use one 577.0 mm Long

1шт.

10

1273675C1

HOUSING

gear box

1шт.

11

1273676C1

ADJUSTMENT SCREW,M10 x 1.25 x 37mm

SCREW, adj

1шт.

12

SHIM, adj screw, order package, 1275479C2 (NSS)

1шт.

13

GASKET, side cover, order package, 1275479C2 (NSS)

1шт.

14

1273679C1

COVER

side

1шт.

15

WASHER, seal, order package, 1275479C2 (NSS)

1шт.

16

825-11410

NUT,M10 x 1.25, Cl 8

1шт.

17

SHAFT, sector, order package, 1275481C1 (NSS); 15 teeth

1шт.

18

1273682C1

OIL SEAL

SEAL, oil

1шт.

19

933815R1

LOCK WASHER,M20

WASHER, 20 mm lock

1шт.

20

100085

NUT,M20 x 1.5, Cl 8

1шт.

21

1273683C1

BREATHER

column

1шт.

22

1273684C1

PLUG

taper

1шт.

23

O-RING (2) (NSS), order overhaul package, 1275479C2 or gear package, 1275481C1

1шт.

24

SPRING (NSS), order package, 1275481C1

1шт.

25

PIN (NSS), order package, 1275481C1

1шт.

26

RIVET (NSS), order package, 1275481C1

1шт.

27

1273234C1

ARM

pitman

1шт.

28

1273228C1

CAP

wheel

1шт.

29

1273230C1

RING

snap

1шт.

30

1282721C1

NUT

replaces 1269786C1

1шт.

31

933967R1

LOCK WASHER,M14

WASHER, 14 mm lock

1шт.

32

30408R1

WASHER,M12 x 28.5 x 3, HT

15.3 x 28 x 3 mm PHC

1шт.

33

1273232C1

WHEEL

steering

1шт.

34

1273231C1

COVER ASSY

COVER

1шт.

35

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

244 w/serial no. J008206 & below, 254 w/serial no. J008216 & below Hex, M8 x 25, 8.8

4шт.

934309R1

LOCK WASHER,M8

WASHER, 8 mm lock

4шт.

35

1269777C1

BOLT,M10 x 30mm

M10 x 30, 244 w/serial no. J008207 & above, 254 w/serial no. J008217 & above

4шт.

36

BEARING, order package, 1275481C1 (NSS)

1шт.

1275479C2

STRIPPER PACKAGE

PACKAGE, overhaul sealing, consists of ref nos 4, 7, 12, 13, 15 and 23

1шт.

1275481C1

PACKAGE

gear service, consists of ref nos 9 and 17

1шт.
