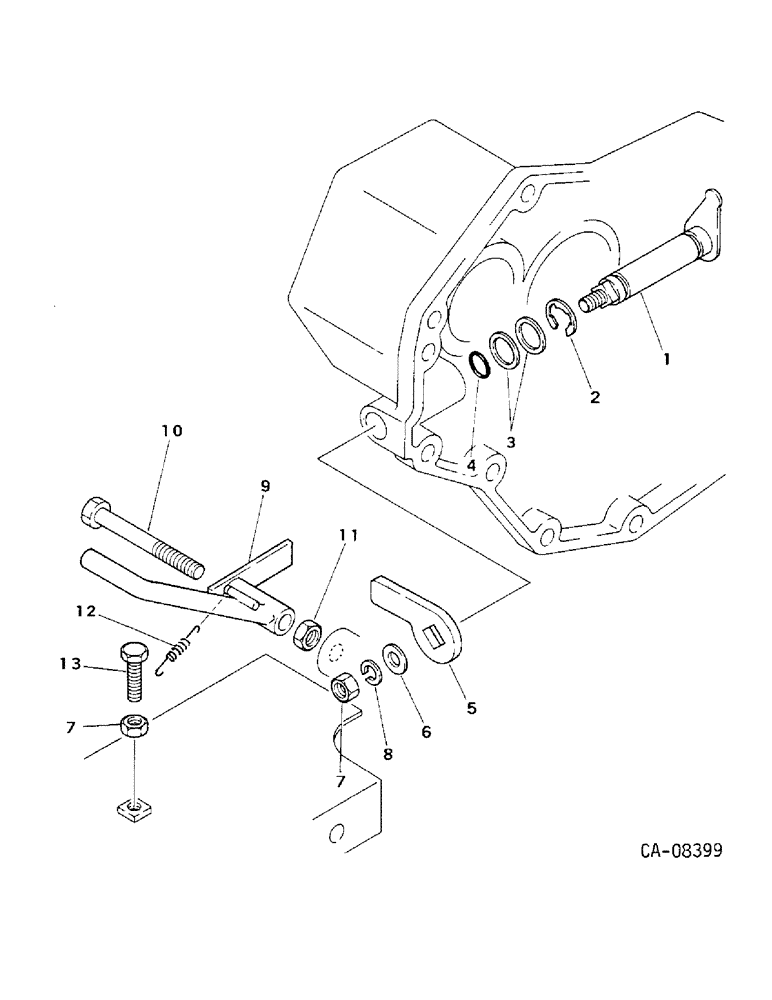

Запчасти Case IH 254 (07-50) - DRIVE TRAIN, DIFFERENTIAL LOCK SHIFTER, 244 AND 254 (04) - Drive Train

1

1269486C1

LEVER

1шт.

2

1271818C1

CIRCLIP,M13

RING, snap

1шт.

3

1269551C1

SET

shim

1шт.

4

1269870C1

O-RING

O-RING

1шт.

5

1269484C1

ARM

1шт.

6

30326R1

WASHER,M8 x 17.5 x 2, HT

8.8 x 17 x 2 mm

1шт.

7

30167R1

NUT,M8, Cl 10

M8 PHC class 10

2шт.

8

934309R1

LOCK WASHER,M8

WASHER, 8 mm lock

1шт.

9

1269554C1

PEDAL

1шт.

10

86508581

BOLT,Hex, M12 x 90mm, Cl 8.8

M12 x 90 class 8.8

1шт.

11

825-11412

NUT,M12 x 1.25, Cl 8

1шт.

12

1269552C1

VALVE SPRING

SPRING

1шт.

13

412479

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

M8 x 35 class 8.8

1шт.
