(07-43) - DRIVE TRAIN, PTO SHAFTS, 244 AND 254

Запчасти Case IH 254 (07-43) - DRIVE TRAIN, PTO SHAFTS, 244 AND 254 (04) - Drive Train

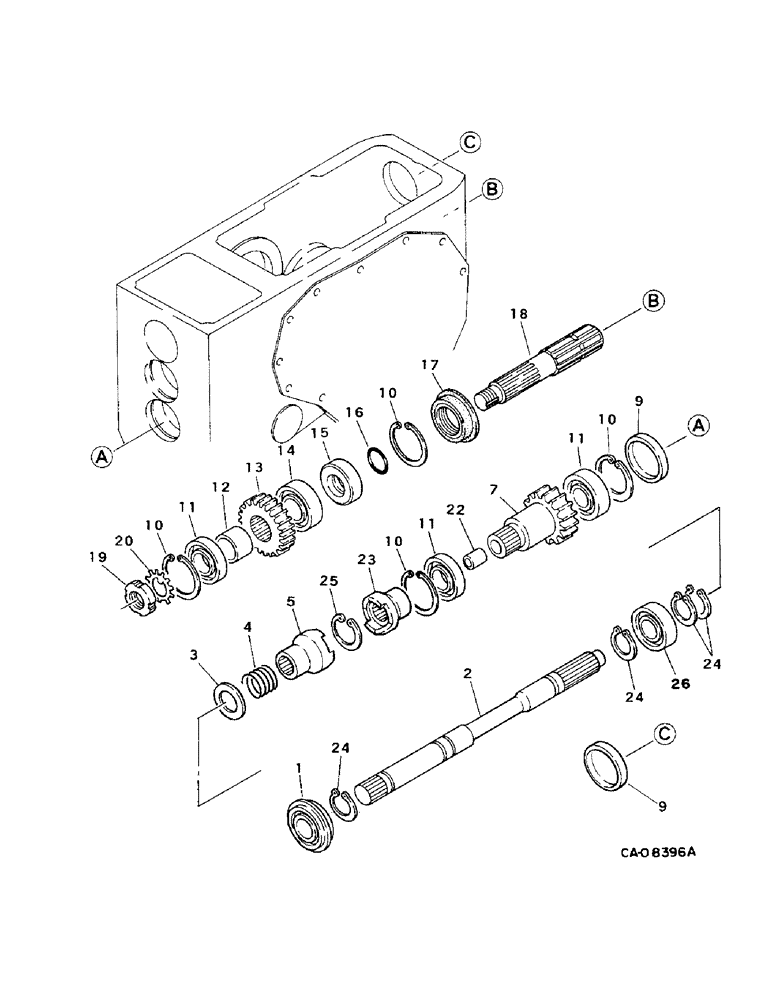

Схема запчастей Case IH 254 - (07-43) - DRIVE TRAIN, PTO SHAFTS, 244 AND 254 (04) - Drive Train
14
7
11
24
19
9
3
13
1
22
18
24
17
10
16
9
26
25
20
12
24
15
10
10
5
10
4
11
11
2
23
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1271865C91

BEARING, BALL

BEARING ASSY

1шт.

2

1269432C1

SHAFT

sub-PTO

1шт.

933128R1

SNAP RING,M25, Ext

RING, 22.78 mm ext ret (see note A)

1шт.

1273333C1

WASHER

WASHER (see note A)

1шт.

3

1275071C1

WASHER

1шт.

4

1269426C1

VALVE SPRING

SPRING

1шт.

5

1269427C1

CLUTCH ASSEMBLY

CLUTCH

1шт.

6

(Not used this application)

1шт.

7

1269433C1

SHAFT

20T

1шт.

8

(Not used this application)

1шт.

9

1269429C1

PLUG

2шт.

10

933108R1

SNAP RING,M62, Int

RING, 65.74 mm int ret

4шт.

11

1273574C91

BEARING, BALL

BEARING ASSY

3шт.

12

1269430C1

SPACER

1шт.

13

1269431C1

GEAR

30T

1шт.

14

1275072C91

BALL BEARING,30mm ID x 62mm OD x 23.8mm W

BEARING ASSY

1шт.

15

1269424C1

BUSHING

1шт.

16

1269884C1

O-RING

O-RING

1шт.

17

1275073C1

OIL SEAL

SEAL, oil

1шт.

18

1269434C1

SHAFT

PTO

1шт.

19

31099R1

LOCK NUT,M25 x 1.5, Bearing

NUT, M25 x 1.5 bearing lock

1шт.

20

31100R1

LOCK WASHER

M20 bearing lock

1шт.

21

(Not used this application)

1шт.

22

1275074C1

BUSHING

1шт.

23

1275075C1

CLUTCH

1шт.

24

933128R1

SNAP RING,M25, Ext

RING, 22.78 mm ext ret

4шт.

25

934062R1

SNAP RING,M26, Int

RING, 27.69 mm int ret

1шт.

26

1271864C91

CRANKSHAFT BEARING

BEARING ASSY

1шт.
