(07-42) - DRIVE TRAIN, FRONT WHEEL DRIVE CONTROLS, 244 AND 254, FOUR WHEEL DRIVE

Запчасти Case IH 254 (07-42) - DRIVE TRAIN, FRONT WHEEL DRIVE CONTROLS, 244 AND 254, FOUR WHEEL DRIVE (04) - Drive Train

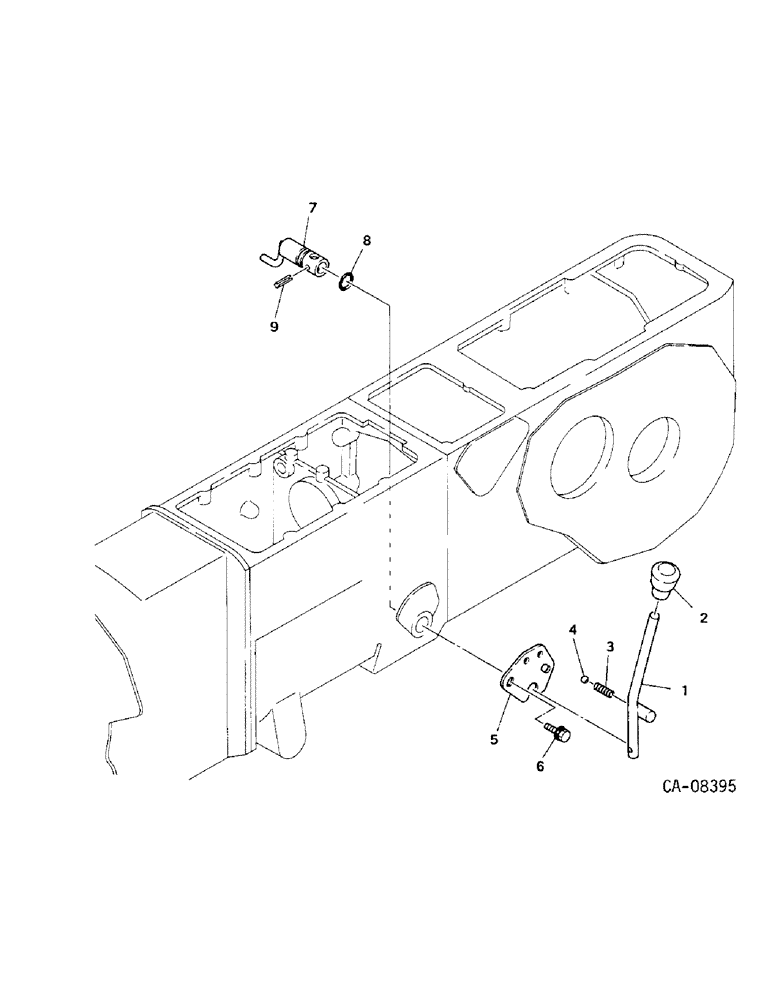

Схема запчастей Case IH 254 - (07-42) - DRIVE TRAIN, FRONT WHEEL DRIVE CONTROLS, 244 AND 254, FOUR WHEEL DRIVE (04) - Drive Train
3
7
9
4
8
2
1
5
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1273506C1

LEVER

HANDLE

1шт.

2

1273497C1

KNOB

1шт.

3

1273456C1

VALVE SPRING

SPRING

1шт.

4

17011R1

BALL

11/32 grade 25 metal

1шт.

5

1273507C1

SUPPORT ASSY.

SUPPORT

1шт.

6

628-8020

BOLT,Hex, M8 x 20, 10.9, Full Thd

M8 x 20 class 8.8

2шт.

934309R1

LOCK WASHER,M8

WASHER, 8 mm lock

2шт.

934675R1

WASHER,M8 x 16 x 1.6

8.8 x 17 x 1.6 mm

2шт.

7

1273508C1

ARM

1шт.

8

1269872C1

O-RING

1шт.

9

30323R1

LOCK PIN,M5 x 26, Slotted

PIN, 5 x 26 mm pln slt spr

1шт.
