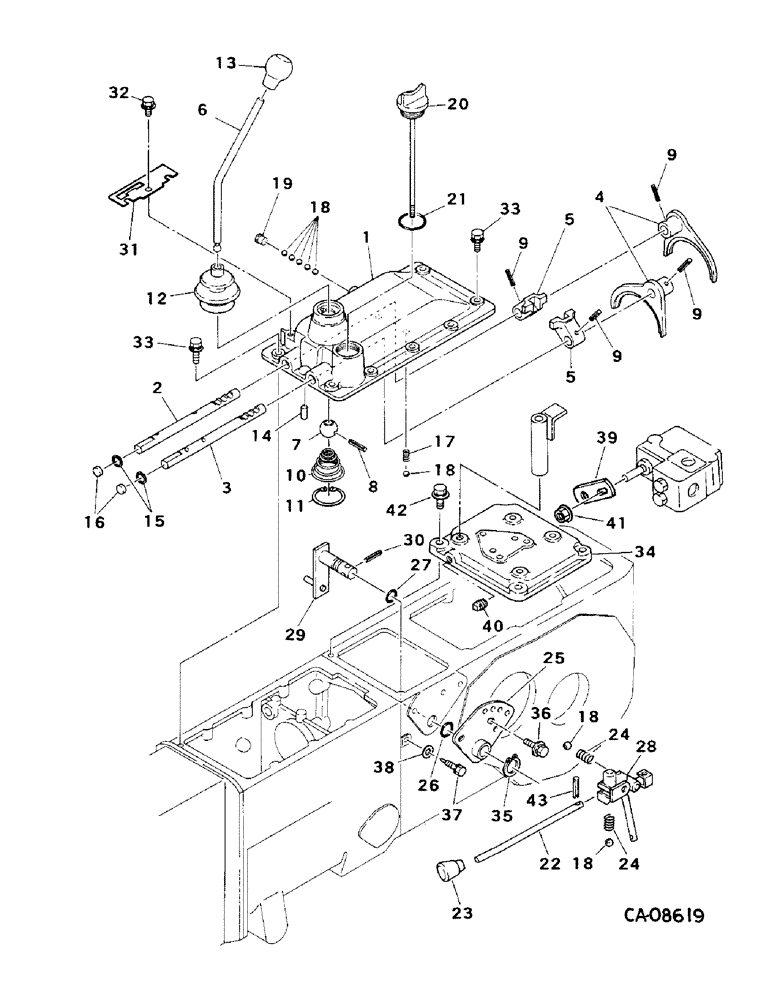

Запчасти Case IH 254 (07-39) - DRIVE TRAIN, RANGE AND SHIFT CONTROLS, SYNCHROMESH TRANSMISSION, 244 AND 254 (04) - Drive Train

1

1273472C1

COVER ASSY

COVER, transmission

1шт.

2

1273473C1

SHAFT HOUSING

SHAFT, 1st/rev. shift rail

1шт.

3

1273474C1

SHAFT HOUSING

SHAFT, 2nd/3rd shift rail

1шт.

4

1273475C1

FORK TEDDER

FORK

2шт.

5

1273476C1

ADAPTER

2шт.

5 is actually 2 of the same part. The two listed should look the same, are just mirror images, but they look different in the picture.

1шт.

6

1273477C1

HANDLE

shift

1шт.

7

1273478C1

BALL

shift handle

1шт.

8

31124R1

LOCK PIN,M5 x 32, Slotted

PIN, 5 x 32mm pln slt spr

1шт.

9

31121R1

LOCK PIN,M6 x 26, Slotted

PIN, 6 x 26mm pln slt spr

4шт.

10

1273479C1

VALVE SPRING

SPRING

1шт.

11

933032R1

SNAP RING,M52, Int

RING, 55.74 mm int ret

1шт.

12

1273480C1

INSULATOR

handle

1шт.

13

1273483C1

KNOB

1шт.

14

30346R1

DOWEL,M10 x 20

PIN, 10 x 20 mm pln hdn dowel

2шт.

15

3053126R1

SNAP RING,M16, Int

RING, 17.12 mm int ret

2шт.

16

1273481C1

PLUG

2шт.

17

1273482C1

VALVE SPRING

SPRING

2шт.

18

17011R1

BALL

11/32 grade 25 metal

9шт.

19

1273484C1

PLUG

1шт.

20

1288410C1

GAUGE ASSY.

GAGE, oil level

1шт.

21

1269877C1

O-RING

1шт.

22

1282577C1

HANDLE

LEVER, A range

1шт.

23

1273497C1

KNOB

1шт.

24

1273456C1

VALVE SPRING

SPRING

2шт.

25

1273487C2

PLATE ASSY.

PLATE, guide

1шт.

26

1269876C1

O-RING

O-RING

1шт.

27

1269871C1

O-RING,17.8mm ID x 2.4mm Width

1шт.

28

1282578C1

HANDLE

LEVER, B range

1шт.

29

1273488C2

LEVER

1шт.

30

30320R1

PIN,M5 x 33, Coiled

5 x 32 mm pln cld spr

1шт.

31

1273489C1

SUPPORT ASSY.

SUPPORT

1шт.

32

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

2шт.

934309R1

LOCK WASHER,M8

WASHER, 8 mm lock

2шт.

934675R1

WASHER,M8 x 16 x 1.6

8.8 x 17 x 1.6 mm

2шт.

33

1269777C1

BOLT,M10 x 30mm

w/washer

10шт.

30282R1

WASHER,M10 x 20 x 2

10.8 x 21 x 2 mm

10шт.

34

1282692C1

COVER ASSY

COVER, differential housing

1шт.

35

933105R1

SNAP RING,M22, Ext

RING, 20.08 mm ext ret

1шт.

36

628-8020

BOLT,Hex, M8 x 20, 10.9, Full Thd

M8 x 20 class 8.8

2шт.

934309R1

LOCK WASHER,M8

WASHER, 8 mm lock

2шт.

934675R1

WASHER,M8 x 16 x 1.6

8.8 x 17 x 1.6 mm

2шт.

37

1269762C1

BOLT,Hex, M10 x 1.25 x 20mm

BOLT

1шт.

38

1273491C1

SEALING WASHER

SEAL, washer

1шт.

39

1282693C1

PLATE ASSY.

SUPPORT

1шт.

40

444688

PLUG

1/8-27 znp hex/skt auto pipe

1шт.

41

31082R1

NUT,M8 x 1.25, Flg, Cl 8

M8 class 10 PHC flg

1шт.

42

1269777C1

BOLT,M10 x 30mm

W/WASHERS

4шт.

43

31163R1

PIN,M5 x 40, Coiled

5 x 40 mm pln hdn hv cld spr

1шт.
