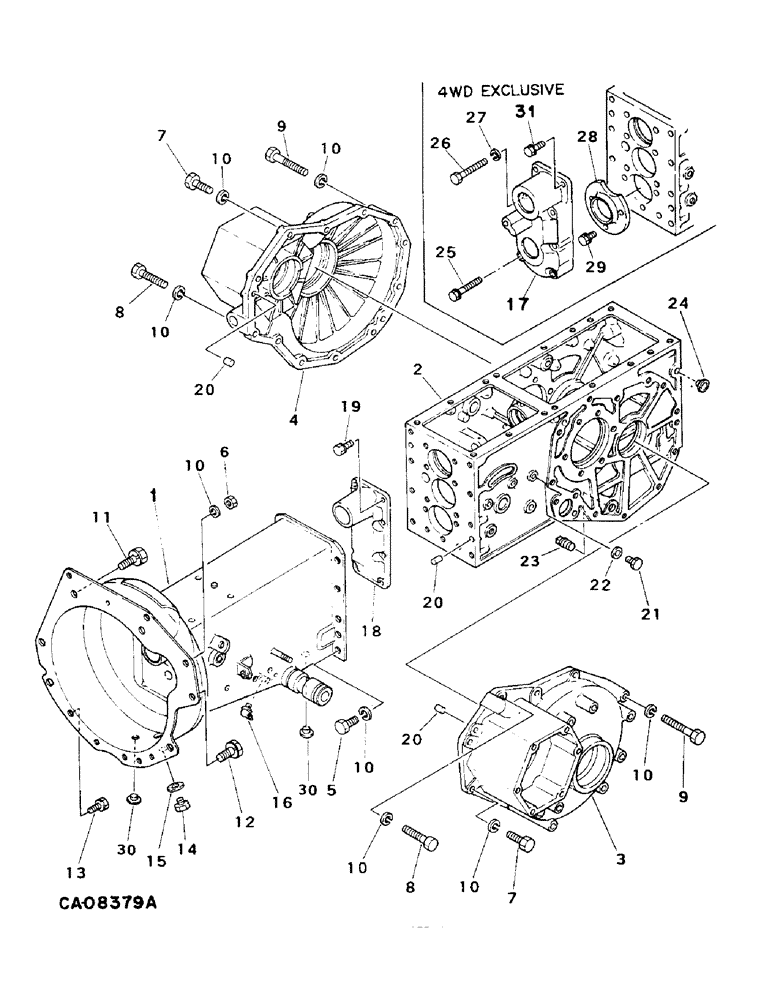

Запчасти Case IH 254 (07-20) - DRIVE TRAIN, CLUTCH, TRANSMISSION, DIFFERENTIAL AND REAR AXLE HOUSINGS, 234 (04) - Drive Train

1

1273419C1

HOUSING

clutch, 234 2 wheel drive w/serial no. J008683 & below

1шт.

1

1273687C2

HOUSING

clutch, 234 2 wheel drive w/serial no. J008684 & above

1шт.

1

1273420C1

HOUSING

clutch, 234 4 wheel drive w/serial no. J008683 & below

1шт.

1

1273688C2

HOUSING

clutch, 234 4 wheel drive w/serial no. J008684 & above

1шт.

2

1269445C1

CASE

HOUSING, transmission & differential

1шт.

3

1269444C1

CASE

HOUSING, LH axle

1шт.

4

1269443C1

CASE

HOUSING, RH axle

1шт.

5

1273394C1

BOLT,Hex, M10 x 1.25 x 25mm

8шт.

6

825-11410

NUT,M10 x 1.25, Cl 8

1шт.

7

1273387C1

BOLT,Hex, M10 x 1.25 x 35mm, Half Thd

12шт.

8

1273388C1

BOLT,Hex, M10 x 1.25 x 55mm, Half Thd

2шт.

9

1273389C1

BOLT,Hex, M10 x 1.25 x 70mm, Half Thd

10шт.

10

933965R1

LOCK WASHER,M10

33шт.

11

1269781C1

BOLT,Hex, M12 x 35mm

BOLT W/WASHER

4шт.

12

1269791C1

BOLT,Hex M12 x 20mm

W/WASHER

2шт.

13

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

4шт.

934309R1

LOCK WASHER,M8

WASHER, 8 mm lock

4шт.

14

1273396C1

BOLT,Hex, M12 x 1.25 x 20mm

1шт.

15

1269439C1

SEALING WASHER

SEAL, washer

1шт.

16

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8 PTF short 65D lub

1шт.

17

1269441C1

HOUSING

bearing, 234 4 wheel drive

1шт.

18

1269442C1

HOUSING

bearing, 234 2 wheel drive

1шт.

19

30004R1

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

M8 x 30 PHC class 10.9

8шт.

934309R1

LOCK WASHER,M8

WASHER, 8 mm lock

8шт.

20

30346R1

DOWEL,M10 x 20

PIN, 10 x 20 mm pln hdn dowel

6шт.

21

1269630C1

BOLT,M8 x 1.25 x 12mm

BOLT, plug

1шт.

22

1275284C1

SEALING WASHER

SEAL, washer, replaces 1269631C1

1шт.

23

103885

PLUG,Slotted, 3/8" NPT

3/8 pln slt/hdl pipe

2шт.

24

1271889C1

CYLINDER END CAP

CAP, rubber, replaces 1269435C1

6шт.

25

43130

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

M8 x 50 class 8.8

5шт.

934309R1

LOCK WASHER,M8

WASHER, 8 mm lock

5шт.

26

30521R1

BOLT,Hex, M8 x 1.25 x 75mm, Cl 8.8

M8 x 75 mm class 8.8

1шт.

27

934309R1

LOCK WASHER,M8

WASHER, 8 mm lock

1шт.

28

1269440C1

CAGE

bearing

1шт.

29

628-8020

BOLT,Hex, M8 x 20, 10.9, Full Thd

M8 x 20 class 8.8

3шт.

934309R1

LOCK WASHER,M8

WASHER, 8 mm lock

3шт.

30

1282586C1

CYLINDER END CAP

CAP, housing

2шт.

31

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

934309R1

LOCK WASHER,M8

WASHER, 8 mm lock

2шт.
