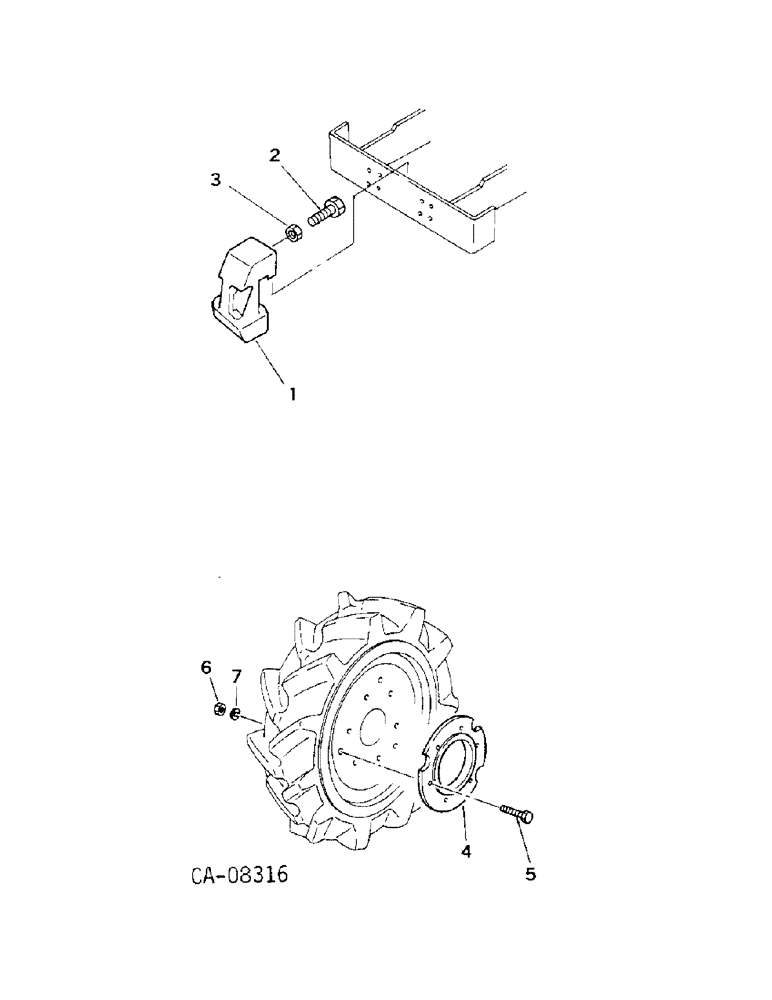

Запчасти Case IH 254 (15-05) - WHEELS AND TRACTION, FRONT END AND REAR WHEEL WEIGHTS Wheels & Traction

1

1273384C1

WEIGHT, front bumper

1шт.

Ref. 1 p/comment in hard copy catalog.order thru machinery catalog.

1шт.

Ref. 11273384C1 is not a wholegoods part either. Not good in our system and not good in Europe. The only other option sheI can see is that the dlr can contact a mitsubishi dlr and try to get it. She doesn't even have a vdr#.

1шт.

2

1273398C1

BOLT,Hex, M12 x 1.25 x 60mm

1шт.

3

825-11412

NUT,M12 x 1.25, Cl 8

1шт.

4

1273385C1

WEIGHT, rear wheel

2шт.

5

1273386C1

BOLT,Hex, M16 x 1.5 x 70mm, Half Thd

half-threaded

6шт.

6

825-11416

NUT,M16 x 1.5, Cl 8

6шт.

7

934185R1

LOCK WASHER,M16

WASHER, 16mm lock

6шт.
