(15-04) - WHEELS AND TRACTION, REAR WHEELS, 254 WITH 11.2-24 R1 4PR TIRE

Запчасти Case IH 254 (15-04) - WHEELS AND TRACTION, REAR WHEELS, 254 WITH 11.2-24 R1 4PR TIRE Wheels & Traction

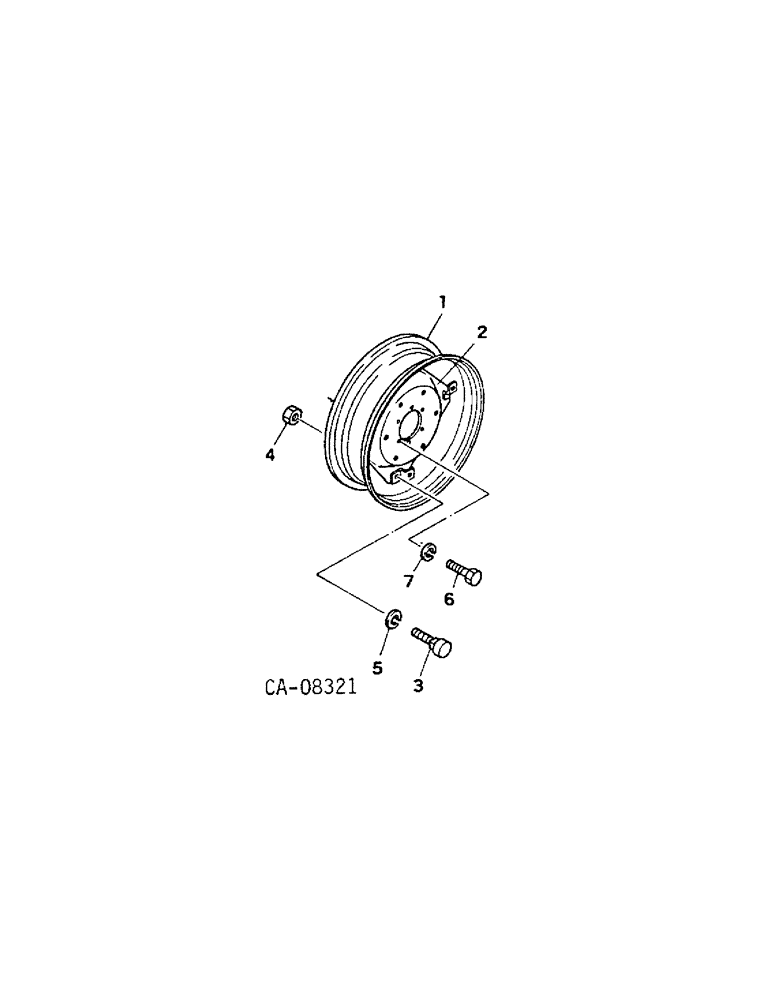

Схема запчастей Case IH 254 - (15-04) - WHEELS AND TRACTION, REAR WHEELS, 254 WITH 11.2-24 R1 4PR TIRE Wheels & Traction
2
1
7
4
3
6
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1271850C1

RIM

9 x 24

2шт.

2

1271852C1

DISC

24 in.

2шт.

3

1271851C1

BOLT,M16 x 1.5 x 37mm

BOLT, wheel M16

8шт.

4

825-11416

NUT,M16 x 1.5, Cl 8

Wheel M16 x 1.5, Cl 8

8шт.

5

934185R1

LOCK WASHER,M16

WASHER, 16mm lock

8шт.

6

1273630C1

BOLT,Hex, M14 x 1.5 x 30mm

wheel mtg

12шт.

7

933967R1

LOCK WASHER,M14

WASHER, 14mm lock

12шт.
