(15-03[1]) - WHEELS AND TRACTION, REAR WHEELS, 244 AND 254 TRACTORS

Запчасти Case IH 254 (15-03[1]) - WHEELS AND TRACTION, REAR WHEELS, 244 AND 254 TRACTORS Wheels & Traction

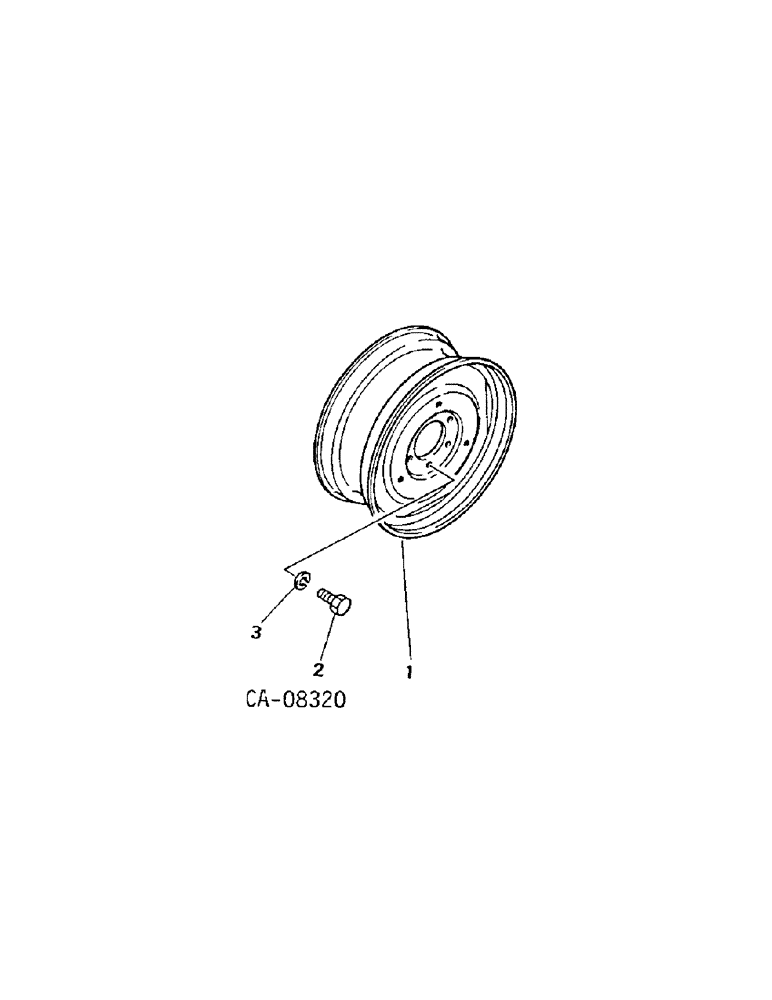

Схема запчастей Case IH 254 - (15-03[1]) - WHEELS AND TRACTION, REAR WHEELS, 244 AND 254 TRACTORS Wheels & Traction
3
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1271847C1

WHEEL (STEERING)

WHEEL, W7 x 24

2шт.

1

1271848C1

WHEEL

W12 x 16W, for 13.6-16 turf tire

2шт.

2

1273630C1

BOLT,Hex, M14 x 1.5 x 30mm

wheel mtg

12шт.

3

933967R1

LOCK WASHER,M14

WASHER, 14mm lock

12шт.
