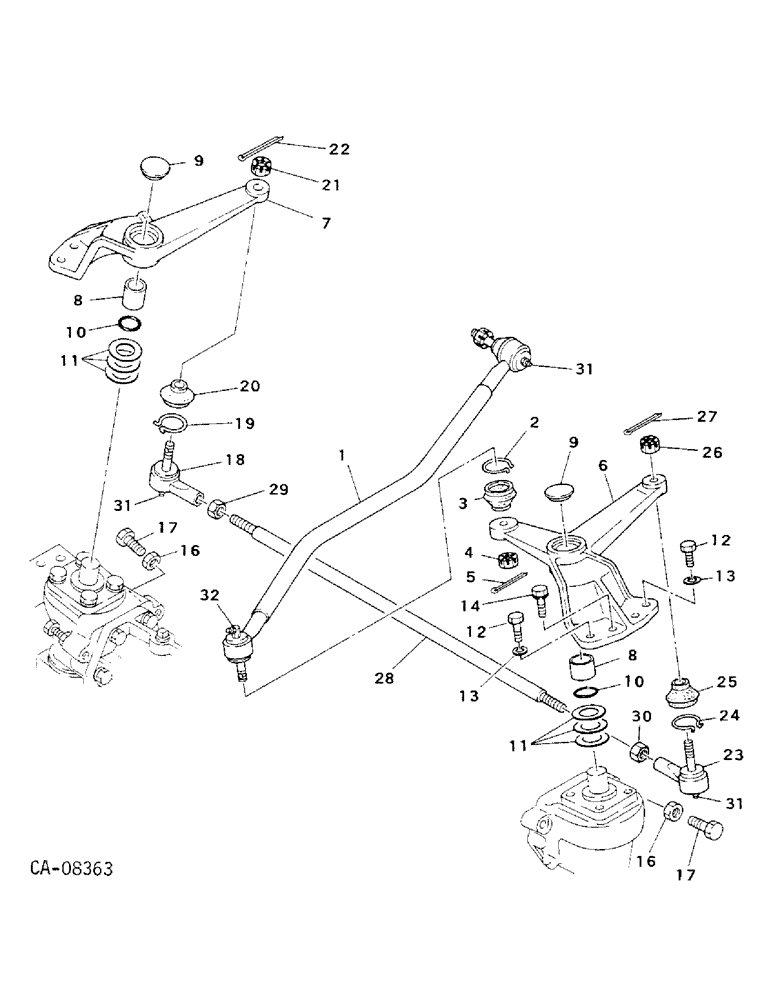

Запчасти Case IH 254 (14-23) - SUSPENSION, DRAG LINK AND TIE ROD, FOUR WHEEL DRIVE, 244 AND 254 Suspension

1

1273427C91

ROD

ASSY, drag link, manual steering, replaces 1273553C91, includes ref. nos. 2, 3, 4, 5, 31 & 32, 244 serial number 008226 & below, 254 serial number 008262 & below

1шт.

1

1287594C91

ROD ASSY.

ROD ASSY, drag link, manual steering, includes ref. nos. 2, 3, 4, 5, 31 & 32, 244 serial number 008227 & above, 254 serial number 008263 & above

1шт.

1

1275166C91

ROD

ASSY, drag link, power steering, includes ref nos 2, 3, 4, 5 and 31

1шт.

2

1273528C1

RING

snap, manual steering

2шт.

2

1275164C1

RING

snap, power steering

2шт.

3

1273527C1

COVER ASSY

COVER, dust, manual steering

2шт.

3

1275165C1

COVER ASSY

COVER, dust, power steering

2шт.

4

1271875C1

NUT

castellated, manual steering

2шт.

4

1275160C1

NUT

castellated, power steering

2шт.

5

934793R1

COTTER PIN,M3.2 x 25

PIN, 3.2 x 25mm pln cot., manual steering

2шт.

5

934792R1

COTTER PIN,M3.2 x 20

PIN, 3.2 x 20mm pln cot., power steering

2шт.

6

1273554C1

ARM

knuckle, manual steering, 244 serial number 008226 & below, 254 serial number 008262 & below

1шт.

6

1287595C1

ARM

knuckle, manual steering, 244 serial number 008227 & above, 254 serial number 008263 & above

1шт.

6

1275167C1

ARM

knuckle, power steering

1шт.

7

1273555C2

ARM

tie rod

1шт.

8

1273226C1

BUSHING

2шт.

9

172570

PLUG,Exp, 1 3/8"

1-3/8 pln expansion, replaces 1273556C1

2шт.

10

1269874C1

O-RING

O-RING

2шт.

11

1273560C1

SHIM

SET

2шт.

12

1273558C1

BOLT,Hex, M12 x 1.25 x 35mm

BOLT, reamer

4шт.

13

933966R1

LOCK WASHER,M12

WASHER, 12mm lock

4шт.

14

1269779C1

BOLT

W/WASHER

4шт.

15

(Not used in this application)

1шт.

16

825-11410

NUT,M10 x 1.25, Cl 8

2шт.

17

1269764C1

BOLT,Hex, M10 x 1.25 x 40mm

2шт.

18

1273539C91

END ASSY.

END ASSY, tie rod RH, includes ref. nos. 19, 20, 21, 22 & 31

1шт.

19

1273528C1

RING

snap

1шт.

20

1273527C1

COVER ASSY

COVER, dust

1шт.

21

1271875C1

NUT

castellated

1шт.

22

934793R1

COTTER PIN,M3.2 x 25

PIN, 3.2 x 25mm pln cot.

1шт.

23

1273540C91

END ASSY.

END ASSY, tie rod LH, includes ref. nos. 24, 25, 26, 27 & 31

1шт.

24

1273528C1

RING

snap

1шт.

25

1273527C1

COVER ASSY

COVER, dust

1шт.

26

1271875C1

NUT

castellated

1шт.

27

934793R1

COTTER PIN,M3.2 x 25

PIN, 3.2 x 25mm pln cot.

1шт.

28

1273559C1

TURNBUCKLE

tie rod

1шт.

29

825-11412

NUT,M12 x 1.25, Cl 8

1шт.

30

1269785C1

NUT

1шт.

31

1273649C1

FITTING

M6 lube

1шт.

32

17295R91

LUBE NIPPLE,90 Degree, 1/4" NPT x 1" lg

FITTING, 1/4 PTF x/short 65D lub

1шт.
