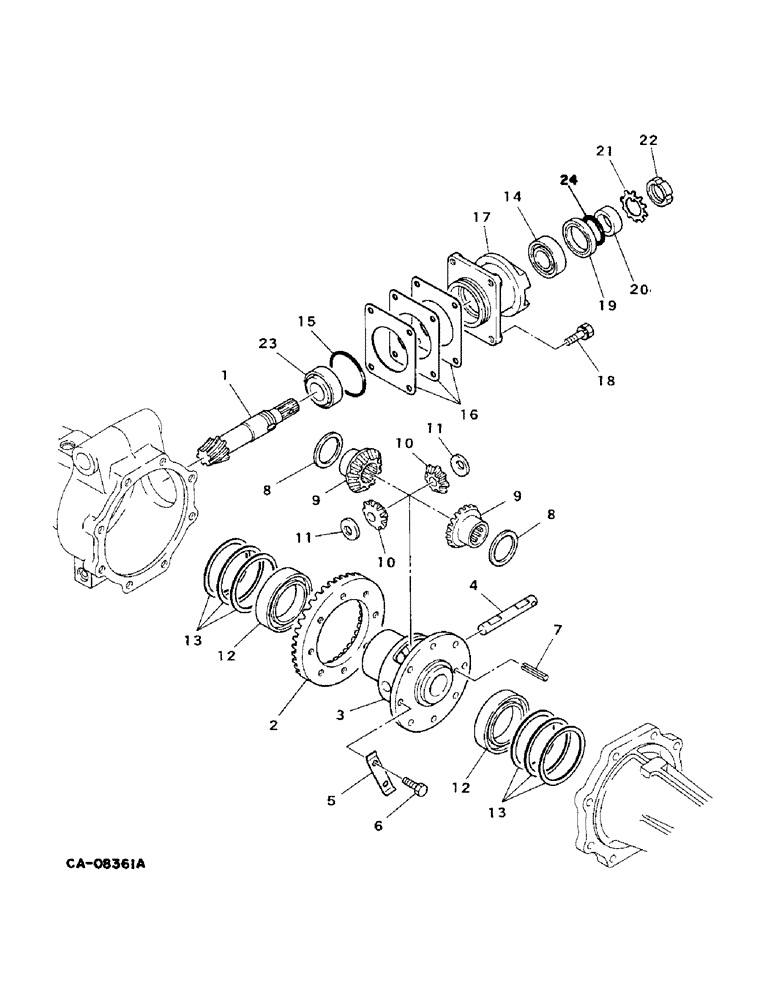

Запчасти Case IH 254 (14-21) - SUSPENSION, DIFFERENTIAL, FOUR WHEEL DRIVE, 244 AND 254 Suspension

1

1273196C1

GEAR

SHAFT, pinion

1шт.

2

1273195C1

GEAR

ring, 35T

1шт.

3

1273174C1

CASE

differential

1шт.

4

1269465C1

SHAFT HOUSING

SHAFT, pinion

1шт.

5

1273457C1

SUPPORT ASSY.

SUPPORT, lock, replaces 1269464C1

4шт.

6

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

8шт.

7

31122R1

LOCK PIN,M6 x 40, Slotted

PIN, 8 x 40mm pln slt spr

1шт.

8

1273199C1

SET OF WASHERS

SET

1шт.

9

1273194C1

GEAR

side, 16T

2шт.

10

1273193C1

GEAR

pinion mate 10T

2шт.

11

1269466C1

THRUST WASHER

thrust

2шт.

12

1271854C91

BEARING, BALL

BEARING ASSY

2шт.

13

1273173C1

SHIM

SET

2шт.

14

1273175C91

TAPERED BEARING

ASSY

1шт.

15

1269885C1

O-RING

O-RING

1шт.

16

1273172C1

SHIM

SET

1шт.

17

1273200C1

CASE

pinion

1шт.

18

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

4шт.

934309R1

LOCK WASHER,M8

WASHER, 8 mm lock

4шт.

19

1273183C1

OIL SEAL

SEAL, oil

1шт.

20

1287733C1

SPACER

bushing, also order o-ring, 1282979C1

1шт.

21

31101R1

LOCK WASHER

M25 bearing lock

1шт.

22

31099R1

LOCK NUT,M25 x 1.5, Bearing

NUT, M25 x 1.5 bearing lock

1шт.

23

1273201C91

TAPERED BEARING,25 mm ID x 52 mm OD x 19.25 mm

BEARING ASSY

1шт.

24

1282979C1

O-RING

O-RING

1шт.
