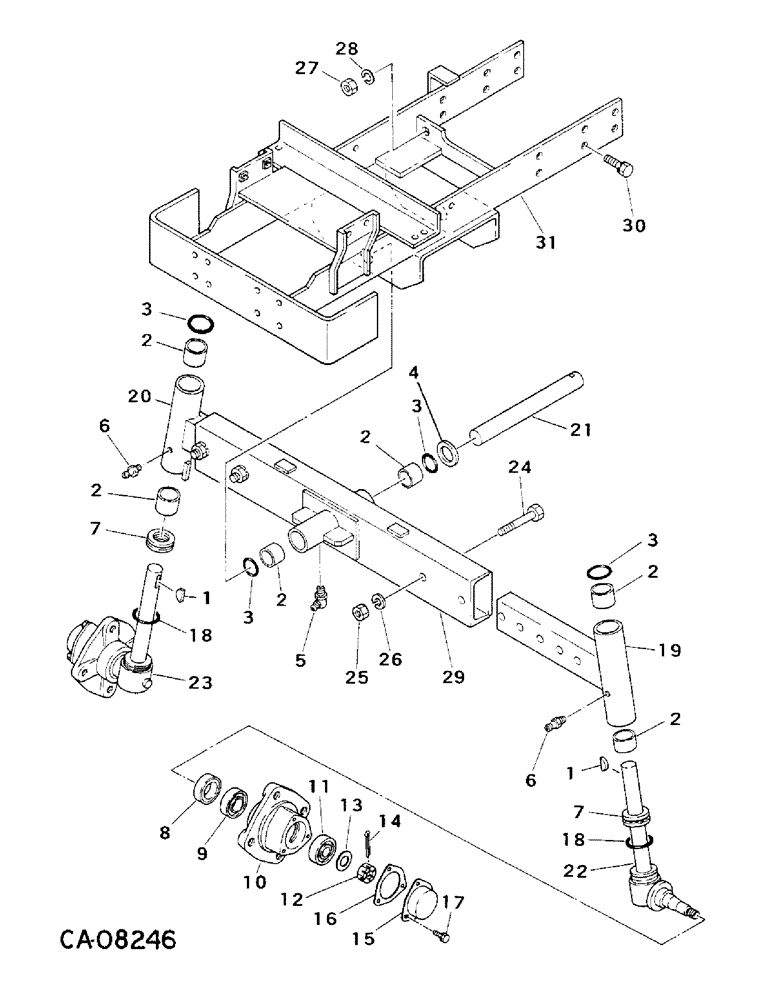

Запчасти Case IH 254 (14-15) - SUSPENSION, ADJUSTABLE FRONT AXLE, 254 Suspension

1

1271897C1

KEY

woodruff

2шт.

2

1269752C1

BUSHING

6шт.

3

1269875C1

O-RING

4шт.

4

1271896C1

WASHER

SET, spacer

1шт.

5

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8 PTF short 65D lub

1шт.

6

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

2шт.

7

1271899C91

BEARING, BALL,26 mm ID x 43.5 mm OD x 15.25 mm

BEARING ASSY

2шт.

8

1271890C1

OIL SEAL

SEAL, oil

2шт.

9

1271857C91

BEARING, BALL

BEARING ASSY

2шт.

10

1271893C1

HUB

front wheel

2шт.

11

1271862C91

BEARING, BALL

BEARING ASSY

2шт.

12

1271877C1

NUT

castellated

2шт.

13

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

17.3 x 30 x 3mm

2шт.

14

932956R1

COTTER PIN,M4 x 40

PIN, 4 x 40mm pln cot.

2шт.

15

1269749C1

CYLINDER END CAP

CAP

2шт.

16

1271891C1

GASKET

2шт.

17

86977726

BOLT,Hex, M6 x 12mm, Cl 8.8

M6 x 12 class 8.8

6шт.

933833R1

LOCK WASHER,M6

WASHER, 6 mm lock

6шт.

18

1269880C1

O-RING

O-RING

2шт.

19

1273661C2

CENTER AXLE

AXLE ASSY, LH outer, includes 2 bushings 1269752C1

1шт.

19

1282823C91

CENTER AXLE

AXLE ASSY, LH outer, w/power steering, includes 2 bushings 1269752C1

1шт.

20

1273662C2

CENTER AXLE

AXLE ASSY, RH outer, includes 2 bushings 1269752C1

1шт.

20

1282824C91

CENTER AXLE

AXLE ASSY, RH outer, w/power steering, includes 2 bushings 1269752C1

1шт.

21

1271898C1

PIN

axle pivot

1шт.

22

1273655C2

KNUCKLE

KNUCKLE, LH steering

1шт.

23

1273656C2

KNUCKLE

KNUCKLE, RH steering

1шт.

24

30406R1

SCREW,Hex, M14 x 70, 10.9

Hex, M14 x 70, 10.9

4шт.

25

1282721C1

NUT

replaces 1269786C1

4шт.

26

933967R1

LOCK WASHER,M14

WASHER, 14mm lock

4шт.

27

1282721C1

NUT

replaces 1269786C1

2шт.

28

933967R1

LOCK WASHER,M14

WASHER, 14mm lock

2шт.

29

1273648C92

SUPPORT

axle center, includes 2 bushings 1269752C1

1шт.

30

1269780C1

BOLT

12шт.

31

1271895C1

FRAME

front

1шт.
