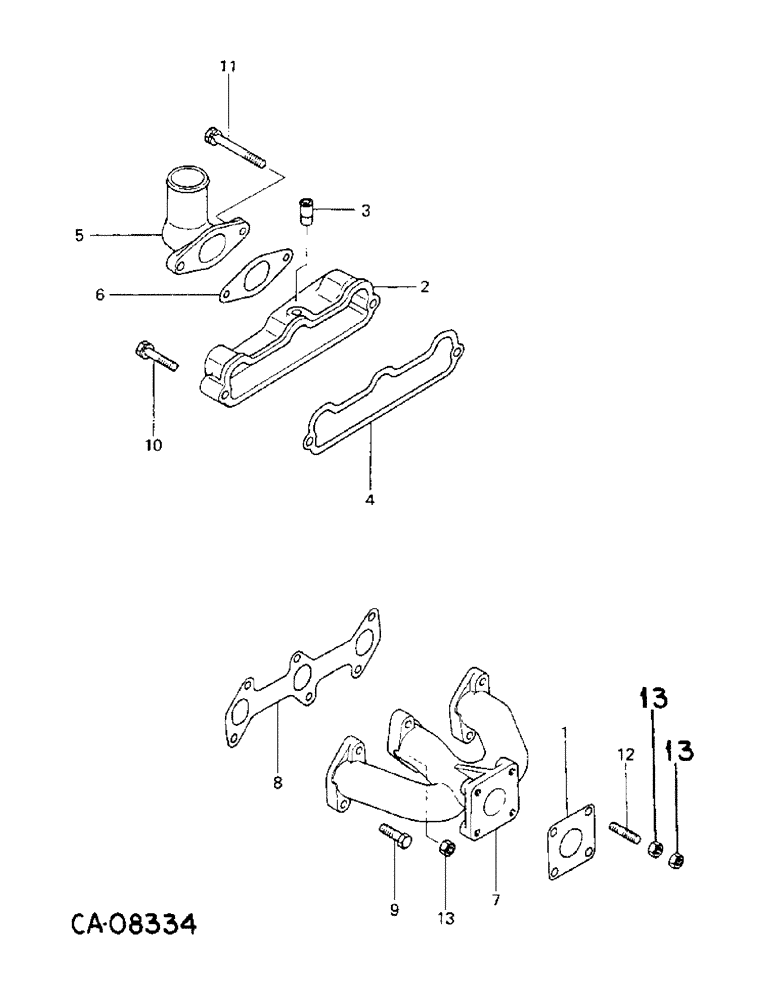

Запчасти Case IH 254 (12-32) - POWER, INTAKE AND EXHAUST MANIFOLDS Power

1

1273104C1

GASKET

1шт.

2

1273106C91

MANIFOLD

S, intake

1шт.

3

PIPE, not serviced separately, part of intake manifold 1273106C91

1шт.

4

1273107C1

MANIFOLD GASKET

intake manifold

1шт.

5

1273108C1

ELBOW UNION

ELBOW, inlet

1шт.

6

1273109C1

GASKET

inlet elbow

1шт.

7

1273110C1

MANIFOLD

exhaust, 234

1шт.

7

1282571C1

MANIFOLD

exhaust, 244 and 254

1шт.

8

1273111C1

MANIFOLD GASKET

exhaust manifold

1шт.

9

30004R1

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

M8 x 30 PHC class 10.9

5шт.

10

16044024

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8

1шт.

934309R1

LOCK WASHER,M8

WASHER, 8 mm lock

1шт.

11

7120024

BOLT

M8 x 70mm class 8.8

2шт.

934309R1

LOCK WASHER,M8

WASHER, 8 mm lock

2шт.

12

1273129C1

STUD

M8 x 25

4шт.

13

1282956C1

NUT

manifold

9шт.

351009R1

CLIP

tachometer cable

1шт.
