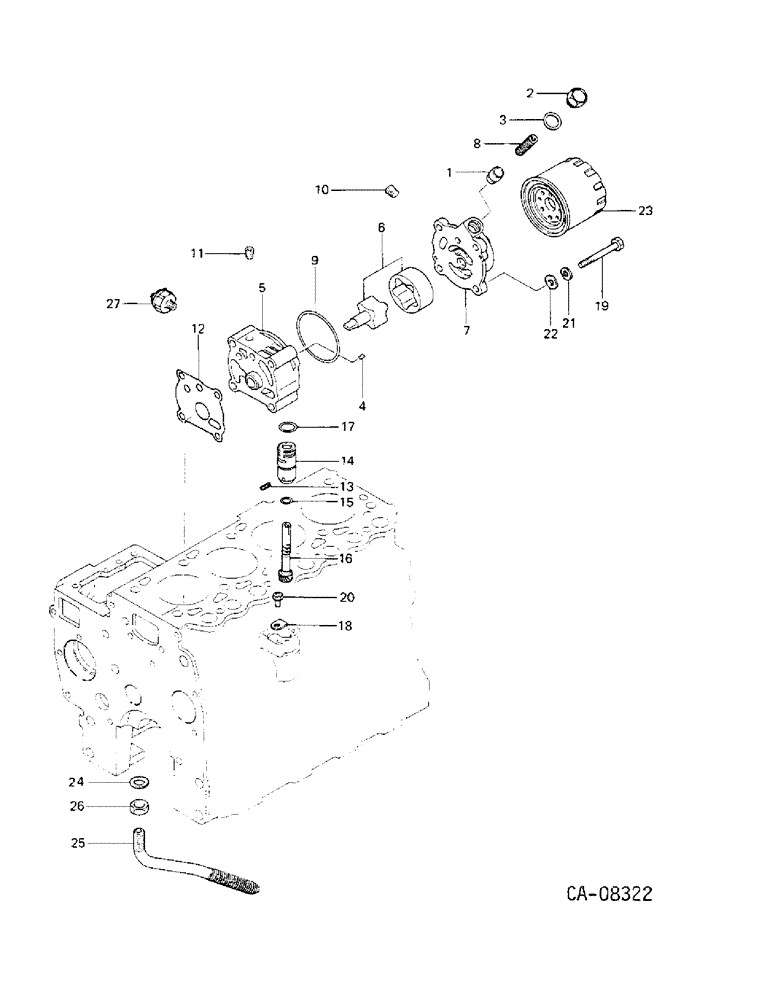

Запчасти Case IH 254 (12-26) - POWER, OIL PUMP, OIL FILTER AND CONNECTIONS Power

1273056C91

PUMP, ENGINE OIL

PUMP ASSY, oil, consists of ref 1 - 11

1шт.

1

PLUNGER, relief valve

1шт.

Not serviced separately, order pump assy 1273056C91 or relief valve kit 1273080C1

1шт.

2

PLUG

1шт.

Not serviced separately, order pump assy 1273056C91 or relief valve kit 1273080C1

1шт.

3

GASKET

1шт.

Not serviced separately, order pump assy 1273056C91 or relief valve kit 1273080C1

1шт.

4

PIN, dowel

1шт.

Not serviced separately order pump assy 1273056C91

1шт.

5

BODY, oil pump

1шт.

Not serviced separately order pump assy 1273056C91

1шт.

6

ROTOR ASSY

1шт.

Not serviced separately order pump assy 1273056C91 or rotor kit 1273081C1

1шт.

7

COVER, oil pump

1шт.

Not serviced separately order pump assy 1273056C91

1шт.

8

SPRING, relief

1шт.

Not serviced separately, order pump assy 1273056C91 or relief valve kit 1273080C1

1шт.

9

O-RING

1шт.

Not serviced separately order pump assy 1273056C91 or rotor kit 1273081C1

1шт.

10

PLUG, taper

1шт.

Not serviced separately order pump assy 1273056C91

1шт.

11

PLUG, taper

1шт.

Not serviced separately order pump assy 1273056C91

1шт.

12

1273064C1

GASKET

oil pump body, part of rotor kit 1273081C91

1шт.

13

PIN, spring

1шт.

Not serviced separately order speedo drive assy 1273065C91

1шт.

14

SLEEVE, gear

1шт.

Not serviced separately order speedo drive assy 1273065C91

1шт.

15

1271834C1

O-RING,10.3mm ID x 2.4mm Width

O-RING

1шт.

16

GEAR, driven

1шт.

Not serviced separately order speedo drive assy 1273065C91

1шт.

17

1269871C1

O-RING,17.8mm ID x 2.4mm Width

1шт.

18

1273068C1

BAR

speedometer drive locking

1шт.

19

300510

BOLT,Hex, M8 x 65mm, Cl 8.8

M8 x 65mm class 8.8

4шт.

20

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

M6 x 16 class 8.8

1шт.

933833R1

LOCK WASHER,M6

WASHER, 6 mm lock

1шт.

21

934309R1

LOCK WASHER,M8

WASHER, 8 mm lock

4шт.

22

934675R1

WASHER,M8 x 16 x 1.6

8.8 x 17 x 1.6mm

3шт.

23

1275229C1

FILTER, ELEMENT

FILTER ASSY, oil, replaces 1273069C1

1шт.

24

1273070C1

SEALING WASHER

SEAL, washer

1шт.

25

1273071C1

TUBE,143, 92 mm Length

W/NUT, 1269796C1, oil screen, 234 w/engine serial no. 33453 and below, 244 w/engine serial no. 14642 and below, 254 w/engine serial no. 1944 and below

1шт.

25

1282962C1

TUBE,140, 90 mm Length

W/NUT, 1269797C1, oil screen, 234 w/engine serial no. 33454 and above

1шт.

25

1282963C1

TUBE,143, 110 mm Length

W/NUT, 1269797C1, oil screen, 244 w/engine serial no. 14643 and above, 254 w/engine serial no. 1945 and above

1шт.

26

1269796C1

TUBE NUT

NUT, M14 jam, for tube, 1273071C1

1шт.

26

1269797C1

TUBE NUT

NUT, M16 jam, for tubes, 1282962C1 and 1282963C1

1шт.

27

1273073C1

SWITCH

ASSY

1шт.

1273080C1

KIT

relief valve service, includes ref nos. 1, 2, 3 & 8

1шт.

1273081C91

KIT

rotor service, includes ref nos. 6, 9 & 12

1шт.

1273065C91

DRIVE ASSY.

DRIVE ASSY, speedometer, includes ref nos. 13 - 17

1шт.
