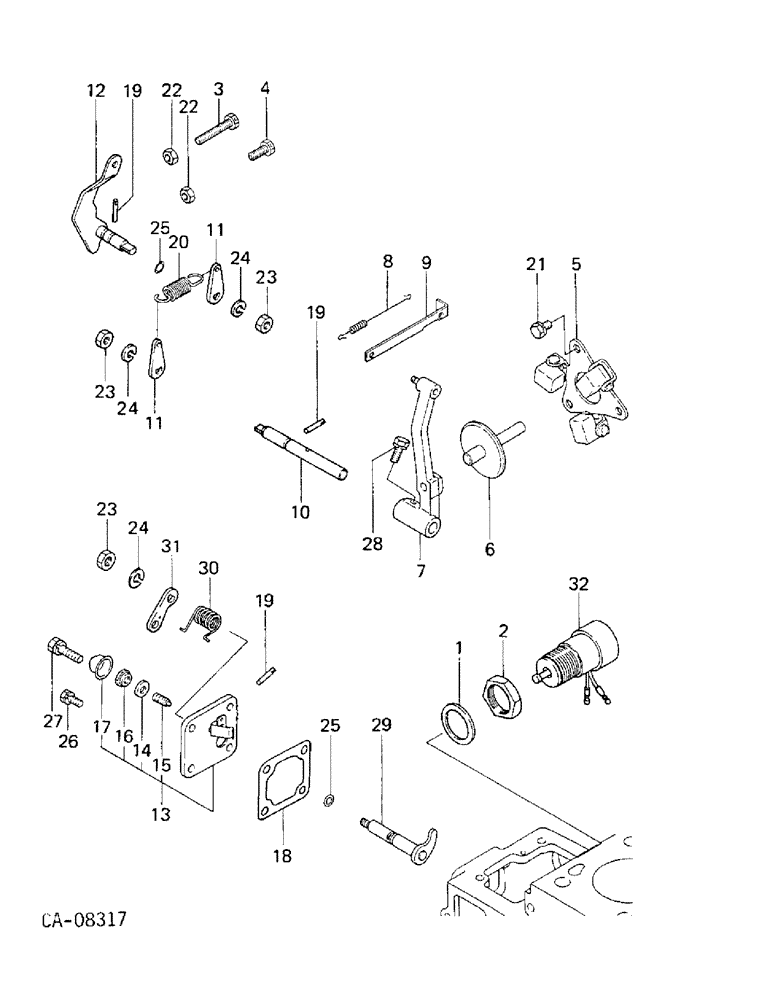

Запчасти Case IH 254 (12-24) - POWER, GOVERNOR CONTROLS Power

1

1273054C1

GASKET

1шт.

2

1273055C1

NUT

1шт.

3

1271819C1

BOLT,Set, Drilled Hex Hd, M6 x 1 x 35mm

BOLT, high speed set

1шт.

4

1271830C1

BOLT,Set, Drilled Hex Hd, M6 x 1 x 20mm

BOLT, M6 x 20 drilled hd

1шт.

5

1273034C1

WEIGHT

ASSY

1шт.

6

1273035C1

SHAFT HOUSING

SHAFT ASSY, sliding

1шт.

7

1273036C1

LEVER

ASSY

1шт.

8

1273037C1

VALVE SPRING

SPRING, tie rod

1шт.

9

1273038C1

SUPPORT ASSY.

SUPPORT, tie, rod

1шт.

10

1273039C1

SHAFT HOUSING

SHAFT

1шт.

11

1273040C1

ARM

spring, lever

2шт.

12

1273042C1

LEVER

ASSY, speed control, replaces 1273041C1

1шт.

13

1273043C92

COVER ASSY

tie rod

1шт.

14

1273044C1

SEALING WASHER

SEAL, washer

1шт.

15

1273045C1

ADJUSTMENT SCREW,M6 x 17mm

SCREW, adjusting

1шт.

16

1273046C1

NUT

M6 x 1.0 special

1шт.

17

1273047C1

CYLINDER END CAP

CAP, sealing

1шт.

18

1273048C1

GASKET

cover

1шт.

19

1271831C1

AXLE PIN

PIN, grooved

3шт.

20

1273049C1

VALVE SPRING

SPRING

1шт.

21

86977726

BOLT,Hex, M6 x 12mm, Cl 8.8

M6 x 12 class 8.8

3шт.

933833R1

LOCK WASHER,M6

WASHER, 6 mm lock

3шт.

22

30281R1

NUT,M6, Cl 10

M6 class 10

2шт.

23

30382R1

NUT,M8 x 1.25, Cl 10

M8 phc p/t class 10

3шт.

24

934309R1

LOCK WASHER,M8

WASHER, 8 mm lock

3шт.

25

1271836C1

O-RING,6.8mm ID x 1.9mm Width

O-RING

2шт.

26

931828R1

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

3шт.

933833R1

LOCK WASHER,M6

WASHER, 6 mm lock

3шт.

27

87317695

BOLT,Hex, M6 x 30mm, Cl 10.9, Full Thd

M6 x 30 class 8.8

1шт.

933833R1

LOCK WASHER,M6

WASHER, 6 mm lock

1шт.

28

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

M6 x 16 class 8.8

1шт.

933833R1

LOCK WASHER,M6

WASHER, 6 mm lock

1шт.

934948R1

WASHER,M6

6.4 x 12.5 x 1.6mm

1шт.

29

1273050C1

LEVER

ASSY, stop

1шт.

30

1273051C1

VALVE SPRING

SPRING, return

1шт.

31

1273052C2

ARM

stop

1шт.

32

1273053C1

RELAY

solenoid

1шт.
