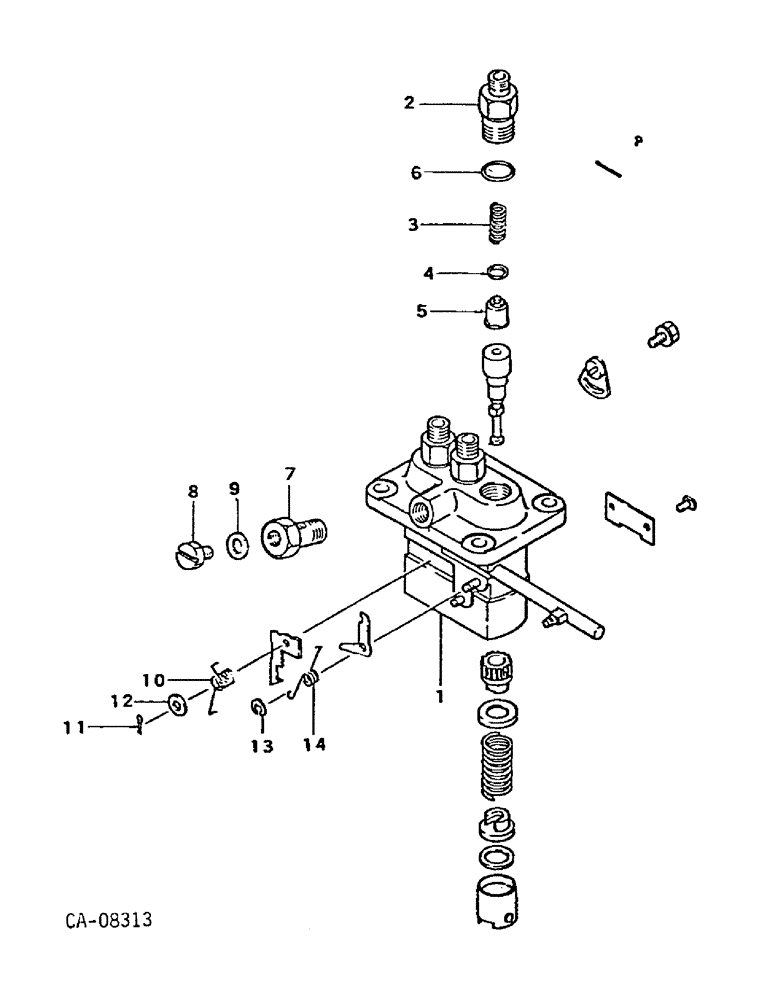

Запчасти Case IH 254 (12-23) - POWER, FUEL INJECTION PUMP Power

1271995C91

PUMP

ASSY, fuel injection, 234, includes ref nos. 1 - 14

1шт.

1273136C91

PUMP

ASSY, fuel injection, 244, includes ref nos. 1 - 14

1шт.

1273137C91

PUMP

ASSY, fuel injection, 254, includes ref nos. 1 - 14

1шт.

1

HOUSING ASSY, not serviced separately order pump assy

1шт.

2

1273499C1

NOZZLE HOLDER

HOLDER, delivery valve

3шт.

3

1273500C1

VALVE SPRING

SPRING, delivery valve

3шт.

4

1273501C1

GASKET

delivery valve

3шт.

5

1273502C1

LOCK VALVE

VALVE ASSY, delivery, 234 & 244

3шт.

5

1273503C1

LOCK VALVE

VALVE ASSY, delivery, 254

3шт.

6

1273511C1

O-RING

O-RING

3шт.

7

1273516C1

SCREW

air bleeder

1шт.

8

1273517C1

SCREW

hollow

1шт.

9

1273518C1

WASHER

1шт.

10

1273519C1

VALVE SPRING

SPRING, return

1шт.

11

934787R1

COTTER PIN,M1.6 x 10

PIN, split, replaces 1273357C1

1шт.

12

1273358C1

WASHER

plate

1шт.

13

1273359C1

RING

E-Ring

1шт.

14

1273360C1

VALVE SPRING

SPRING, set

1шт.
