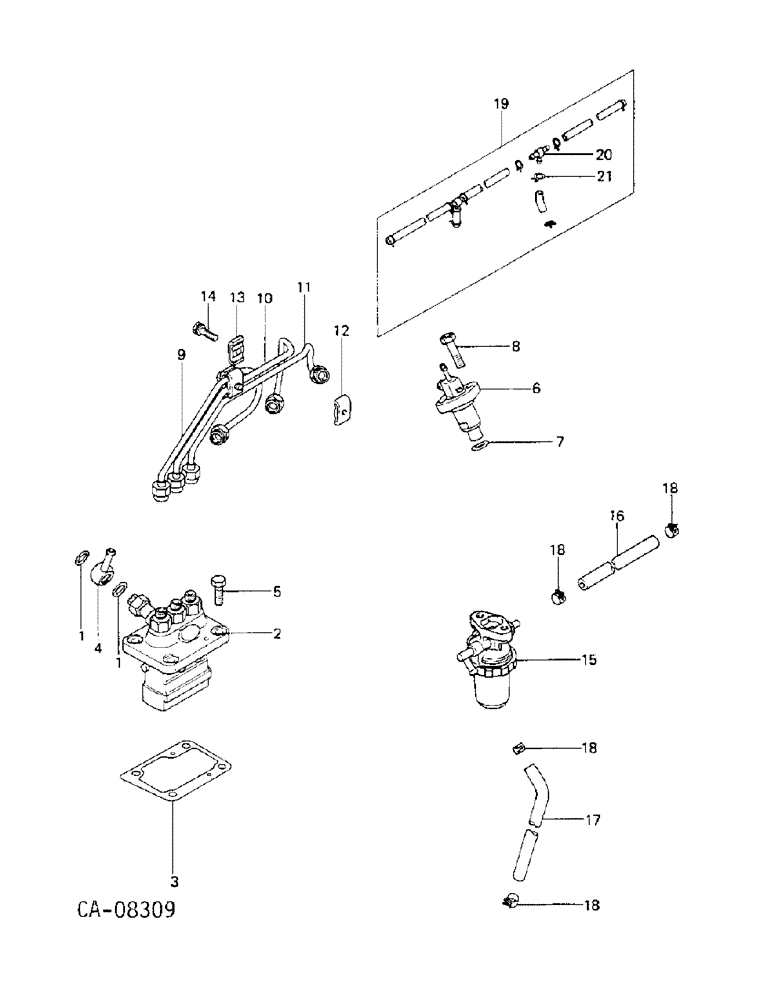

Запчасти Case IH 254 (12-21) - POWER, FUEL SUPPLY, FUEL INJECTION PUMP, NOZZLES, FUEL FILTER AND FITTED PARTS Power

1

1271994C1

SEALING WASHER

SEAL, washer

2шт.

2

1271995C91

PUMP

ASSY, fuel injection, 234, for serviceable components see fuel injection pump elsewhere this group

1шт.

2

1275091C91

PUMP

ASSY, fuel injection, 234, renewed

1шт.

2

1273136C91

PUMP

ASSY, fuel injection, 244, for serviceable components see fuel injection pump elsewhere this group

1шт.

2

1275092C91

PUMP

ASSY, fuel injection, 244, renewed

1шт.

2

1273137C91

PUMP

ASSY, fuel injection, 254, for serviceable components see fuel injection pump elsewhere this unit

1шт.

2

1275093C91

PUMP

ASSY, fuel injection, 254, renewed

1шт.

3

1275096C1

KIT

injection pump adjusting shim, consists of, shim, adjusting 0.2mm (NSS), shim, adjusting 0.3mm (NSS), shim, adjusting 0.4mm (NSS), shim, adjusting 0.8mm (NSS)

1шт.

4

1271998C1

TEE

union collar

1шт.

5

628-8020

BOLT,Hex, M8 x 20, 10.9, Full Thd

M8 x 20 class 8.8

4шт.

6

1271999C1

NOZZLE INJECTION

NOZZLE ASSY

3шт.

6

1275094C1

NOZZLE INJECTION

NOZZLE & NOZZLE HOLDER, renewed

3шт.

7

1273000C1

GASKET

nozzle holder

3шт.

8

412479

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

M8 x 35 class 8.8

6шт.

9

1273001C1

FUEL TUBE

TUBE ASSY, #1 fuel injection

1шт.

10

1273002C1

FUEL TUBE

TUBE ASSY, #2 fuel injection

1шт.

11

1273003C1

FUEL TUBE

TUBE ASSY, #3 fuel injection

1шт.

12

1273004C1

CLAMP

2шт.

13

1273005C1

CLAMP

2шт.

14

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

M6 x 25 class 8.8

2шт.

933833R1

LOCK WASHER,M6

WASHER, 6 mm lock

2шт.

934948R1

WASHER,M6

6.4 x 12.5 x 1.6mm

2шт.

15

1273027C91

FILTER CARTRIDGE

FILTER ASSY

1шт.

1273082C1

KIT

fuel filter element, consists of element, fuel filter (NSS), o-ring, element (NSS), o-ring, filter cup (NSS)

1шт.

Ref. 15 p/n 1273027C91. cup only is p/n 1981528C1.

1шт.

16

HOSE, fuel, 234, furnish 4.73 in./120mm from bulk roll marked 427683C1

1шт.

16

HOSE, fuel, 244 & 254, furnish 8.66 in./220mm from bulk roll marked 427683C1

1шт.

17

HOSE, fuel, 234, furnish 14.17 in./360mm from bulk roll marked 427683C1

1шт.

17

HOSE, fuel, 244 & 254, furnish 17.72 in./450mm from bulk roll marked 427683C1

1шт.

18

299486R1

HOSE CLAMP,#7, 7/16", Spring

CLAMP, no. 7 type E spring wire hose

4шт.

19

1273010C91

PIPE CLAMP

HOSE ASSY, fuel return, pipe, includes ref nos. 20 & 21

1шт.

20

1273011C1

TEE

2шт.

21

28068R1

HOSE CLAMP,#4, 1/4", Spring

CLAMP, no. 4 type E spring wire hose

10шт.
