Запчасти Case IH 254 (12-19) - POWER, CAMSHAFT, VALVES, GEARS AND CONNECTIONS Power

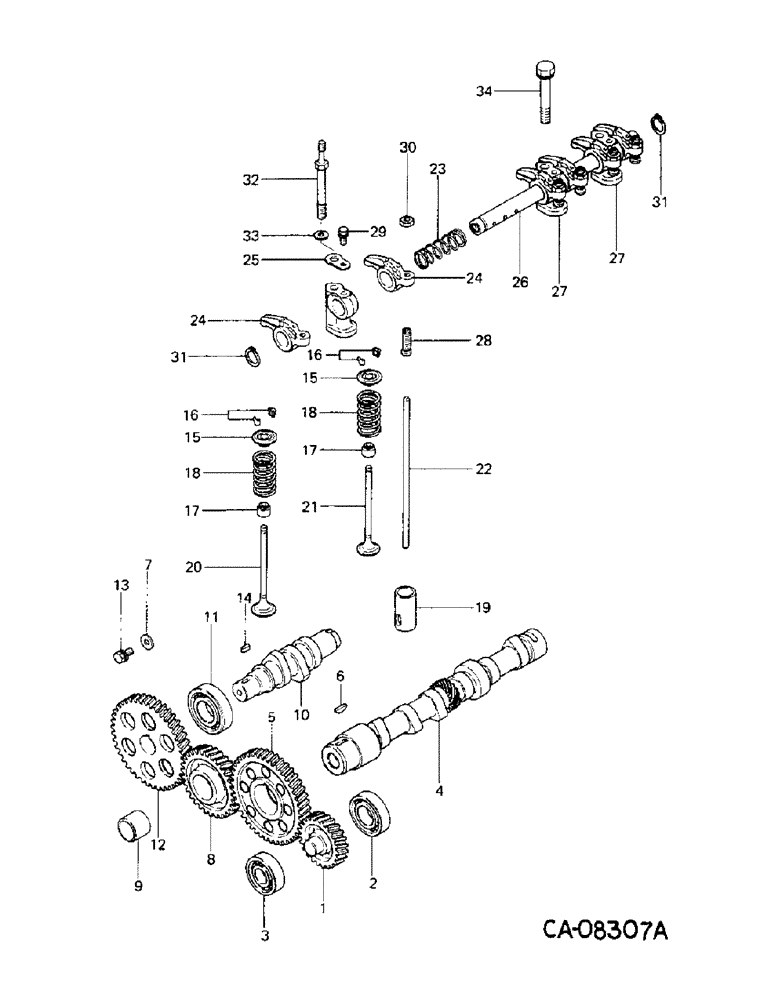

Схема запчастей Case IH 254 - (12-19) - POWER, CAMSHAFT, VALVES, GEARS AND CONNECTIONS Power
7
18
14
12
33
15
18
3
34
20
1
2
24
32
13
30
17
15
29
28
27
23
24
19
11
4
26
22
21
9
16
31
6
5
27
25
10
17
16
31
8

Артикул

Название

Примечание

Количество

1

1271970C1

GEAR

oil pump, tang drive, 234 gear drive tractors with serial no. 008683 and below, 234 hydrostatic drive tractors with serial no. 008122 and below

1шт.

1

1271971C1

GEAR WHEEL

GEAR, oil pump, spline drive, 234 gear drive tractors with serial no. 008684 and above, 234 hydrostatic drive tractors with serial no. 008123 and above, 244 and 254 tractors

1шт.

2

1273146C91

BEARING, BALL,25 mm ID x 52 mm OD x 15 mm

1шт.

3

1273145C91

BALL BEARING,20 mm ID x 47 mm OD x 14 mm

BEARING, ball

1шт.

4

1271972C1

CAMSHAFT

1шт.

5

1271973C1

GEAR WHEEL

GEAR, camshaft

1шт.

6

1271974C1

KEY

5 x 19 woodruff

1шт.

7

30326R1

WASHER,M8 x 17.5 x 2, HT

8.8 x 17 x 2mm

1шт.

8

1271975C1

GEAR WHEEL

GEAR ASSY, idler

1шт.

9

(Not serviced separately)

1шт.

10

1271976C1

CAMSHAFT

inj pump

1шт.

11

1273356C91

BEARING, BALL,28 mm ID x 58 mm OD x 16 mm

1шт.

12

1271977C1

GEAR WHEEL

GEAR, inj pump

1шт.

13

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

1шт.

934309R1

LOCK WASHER,M8

WASHER, 8 mm lock

1шт.

14

1271978C1

BAR

5 x 12 sunk key

1шт.

15

1271979C1

RETAINER

valve spring

6шт.

16

1271980C1

KEY

valve spring ret lock

12шт.

17

1271981C1

SEAL

SEAL, valve stem

6шт.

18

1271982C1

VALVE SPRING

SPRING, valve

6шт.

19

1271983C1

TAPPET

6шт.

20

1271984C1

LOCK VALVE

VALVE, intake

3шт.

21

1271985C1

LOCK VALVE

VALVE, exhaust

3шт.

22

1271986C1

AXLE PIN

PIN, push rod

6шт.

23

1271987C1

VALVE SPRING

SPRING, LH rocker shaft

2шт.

24

1271988C1

ARM

rocker

6шт.

25

1271989C1

WASHER

seat

2шт.

26

1271990C1

SHAFT HOUSING

SHAFT ASSY, rocker

1шт.

27

1271991C1

BRACKET

rocker, stay

3шт.

28

1271992C1

ADJUSTMENT SCREW,M10 x 1.25 x 34mm

SCREW, adjusting

6шт.

29

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

M6 x 16 class 8.8

2шт.

933833R1

LOCK WASHER,M6

WASHER, 6 mm lock

2шт.

30

1269793C1

NUT

jam

6шт.

31

933081R1

SNAP RING,M19, Ext

RING, 17.14 mm ext ret

2шт.

32

1273141C1

STUD,M10 x 1.25 - M8 x 1.25 x 108mm L

bolt

2шт.

33

933965R1

LOCK WASHER,M10

2шт.

34

1273143C1

BOLT,Hex, M10 x 1.25 x 70mm

BOLT

1шт.

Выбрано товаров: 37
