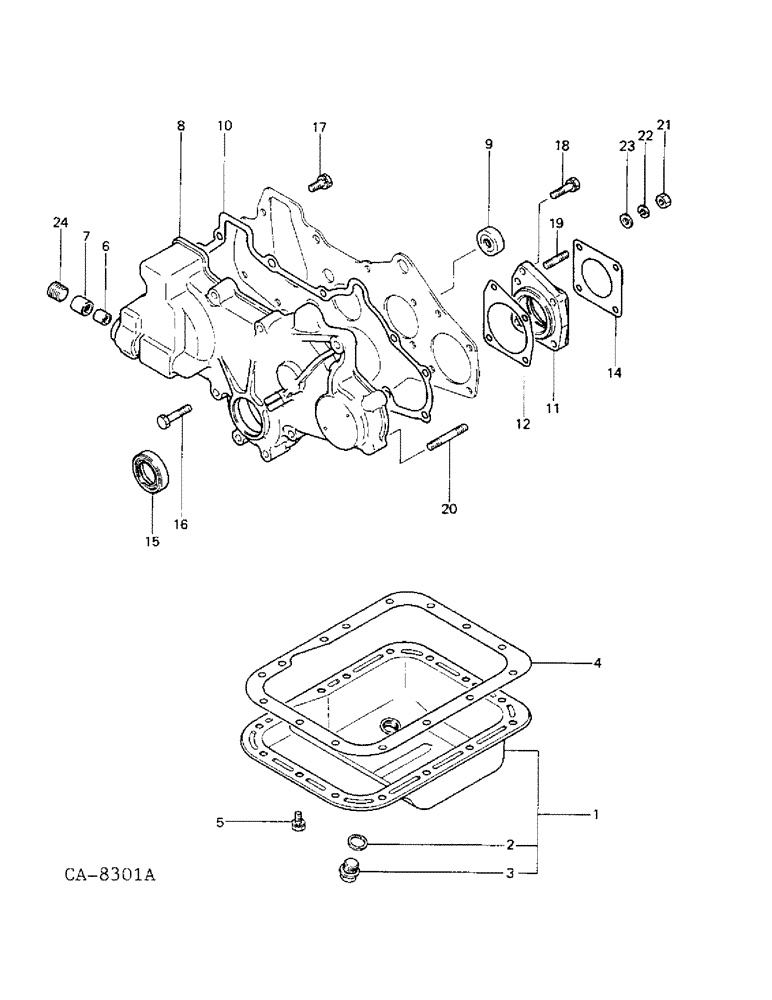

Запчасти Case IH 254 (12-15) - POWER, OIL PAN AND GEAR CASE Power

1

1271903C91

PAN ASSY.

PAN ASSY, oil, 234

1шт.

1

1271904C91

PAN ASSY.

PAN ASSY, oil, 244 & 254

1шт.

2

1271905C1

GASKET

drain plug

1шт.

3

1271906C1

PLUG

oil drain

1шт.

4

1271907C1

OIL PAN GASKET SET

oil pan

1шт.

5

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

15шт.

934309R1

LOCK WASHER,M8

WASHER, 8 mm lock

15шт.

6

1273346C91

NEEDLE BEARING

BEARING, needle

1шт.

7

1273347C91

NEEDLE BEARING

BEARING, needle

1шт.

8

1271908C91

CASE

ASSY, gear, includes ref no. 9

1шт.

9

1273077C1

PLUG

thrust

1шт.

10

1271909C1

GASKET

gear case

1шт.

11

1271910C1

HOUSING

pump gear brg

1шт.

12

1271911C1

GASKET

housing

1шт.

13

(Not used this application)

1шт.

14

1271913C1

GASKET

oil pump

1шт.

15

1273348C1

OIL SEAL

SEAL, oil

1шт.

16

934299R1

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

M8 x 45 class 8.8

8шт.

17

628-8020

BOLT,Hex, M8 x 20, 10.9, Full Thd

M8 x 20 class 8.8

2шт.

934309R1

LOCK WASHER,M8

WASHER, 8 mm lock

2шт.

18

30004R1

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

M8 x 30 PHC class 10.9

1шт.

934309R1

LOCK WASHER,M8

WASHER, 8 mm lock

1шт.

19

1273129C1

STUD

M8 x 25, 234

1шт.

19

1273130C1

STUD

M8 x 22, 244 & 254

1шт.

20

1273128C1

STUD

M8 x 45

3шт.

21

30167R1

NUT,M8, Cl 10

M8 PHC class 10

4шт.

22

934309R1

LOCK WASHER,M8

WASHER, 8 mm lock

4шт.

23

934675R1

WASHER,M8 x 16 x 1.6

8.8 x 17 x 1.6 mm

4шт.

24

444705

PLUG,Hex Soc, 1/2"-14, Brass

1/2-14 pln hex/skt auto pipe

1шт.
