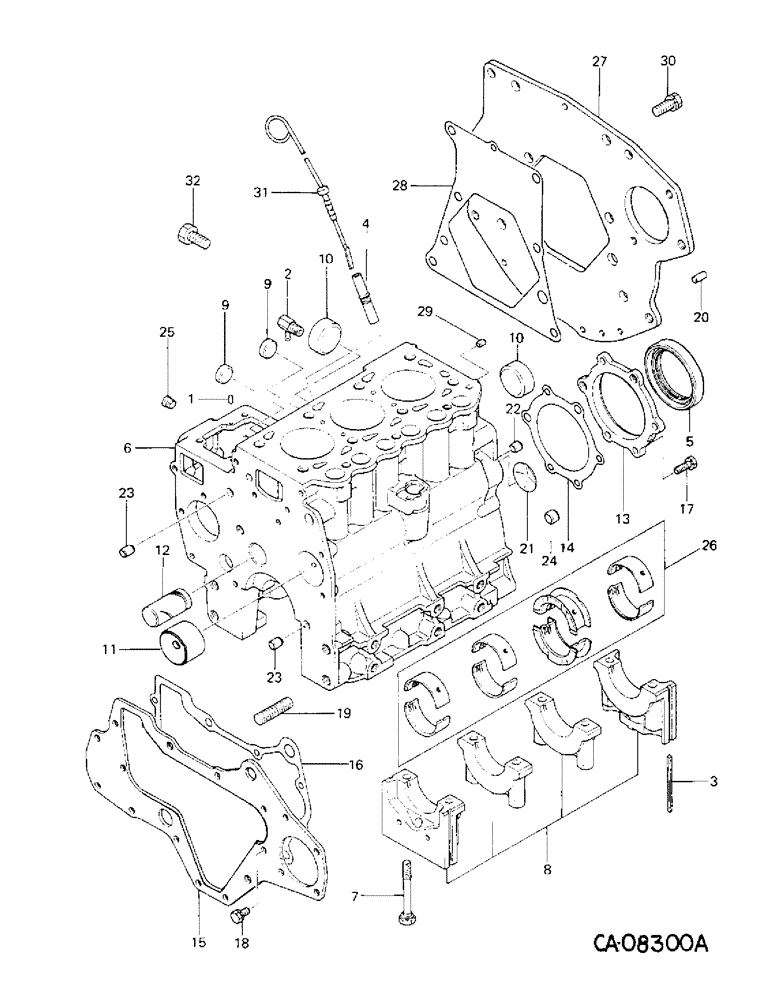

Запчасти Case IH 254 (12-13) - POWER, CYLINDER BLOCK AND CONNECTIONS Power

1

1271832C1

PIN

dowel

2шт.

2

1271724C1

ELBOW UNION

ELBOW, water drain

1шт.

3

1271776C1

SEAL

SEAL, end brg cap side

4шт.

4

1271777C1

TUBE,9.6 mm ID, 12 mm OD, 50 mm Length

oil level gage guide

1шт.

5

1273127C1

OIL SEAL

SEAL, oil

1шт.

6

1287753C91

SKELETON ENGINE

BLOCK SUB ASSY, cylinder, 234 tractors, for tractors w/engine serial no. 33453 and below, also order tube, 1282962C1, includes ref nos 7 thru 11

1шт.

6

1287754C91

BLOCK

SUB ASSY, cylinder, 244 tractors, for tractors w/engine serial no. 14642 and below, also order tube, 1282963C1, includes ref nos 7 thru 11

1шт.

6

1287755C91

BLOCK

SUB ASSY, cylinder, 254 tractors, for tractors w/engine serial no. 1944 and below, also order tube, 1282963C1

1шт.

7

1271825C1

BOLT,Hex, M10 x 1.25 x 81mm

BOLT, brg cap

8шт.

8

(Not serviced separately)

1шт.

9

30591R1

PLUG,M25, Tapered

25 mm tapered cup

2шт.

10

30734R1

PLUG,M45, Tapered

45 mm tapered cup

2шт.

11

1271780C1

SPACER

camshaft

1шт.

12

1271781C1

SHAFT HOUSING

SHAFT, idler, 234 & 244

1шт.

12

1273381C1

SHAFT

idler, 254

1шт.

13

1271782C1

RETAINER

oil seal

1шт.

14

1271783C1

GASKET

oil seal

1шт.

15

1271784C1

PLATE ASSY.

PLATE, front

1шт.

16

1271785C1

GASKET

front plate

1шт.

17

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

6шт.

934309R1

LOCK WASHER,M8

WASHER, 8 mm lock

6шт.

18

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

3шт.

934309R1

LOCK WASHER,M8

WASHER, 8 mm lock

3шт.

19

1273132C1

STUD

M14 x 30

2шт.

20

1271835C1

AXLE PIN

PIN, dowel

1шт.

21

1288305C1

PLUG

expansion

1шт.

22

1271786C1

SPACER

bushing

2шт.

23

1271787C1

SPACER

bushing

2шт.

24

1271788C1

SPACER

bushing

1шт.

25

444693

PLUG,Hex Soc, 1/4"-18, Brass

1/4-18 pln hex/skt auto pipe

3шт.

26

1271789C1

CRANKSHAFT BEARING

crankshaft, std, 234 & 244

1шт.

26

1271790C1

CRANK

BEARING SET, crankshaft, 0.25 mm U/S

1шт.

26

1271791C1

BEARING SET

crankshaft, 0.50 mm U/S

1шт.

26

1271792C1

BEARING SET

crankshaft, 0.75 mm U/S

1шт.

26

1271793C1

CRANK

BEARING SET, crankshaft, std, 254

1шт.

26

1271794C1

CRANKSHAFT BEARING

crankshaft, 0.25 mm U/S

1шт.

26

1271795C1

CRANKSHAFT BEARING

crankshaft, 0.50 mm U/S

1шт.

26

1271796C1

CRANKSHAFT BEARING

crankshaft, 0.75 mm U/S

1шт.

27

1271797C1

PLATE ASSY.

PLATE, rear, 234

1шт.

27

1271798C1

PLATE ASSY.

PLATE, rear, 244 & 254

1шт.

28

1271799C1

GASKET

rear plate, 234

1шт.

28

1271900C1

GASKET

rear plate, 244 & 254

1шт.

29

1271827C1

AXLE PIN

PIN, dowel

1шт.

30

1273131C1

BOLT,Hex, M10 x 1.25 x 40mm

BOLT, M12 x 28 w/washer

6шт.

31

1275231C1

GAUGE ASSY.

GAGE, oil level, 234, replaces 1271901C1

1шт.

31

1275232C1

GAUGE ASSY.

GAGE, oil level, 244 & 254, replaces 1271902C1

1шт.

32

1273144C1

BOLT,Hex, M12 x1.25 x 25mm

BOLT, M12 x 25

4шт.

complete engine is 80242C91 3 cyl diesel 59.75 cu.in.979cc for the 244 and 245 tractors

1шт.
