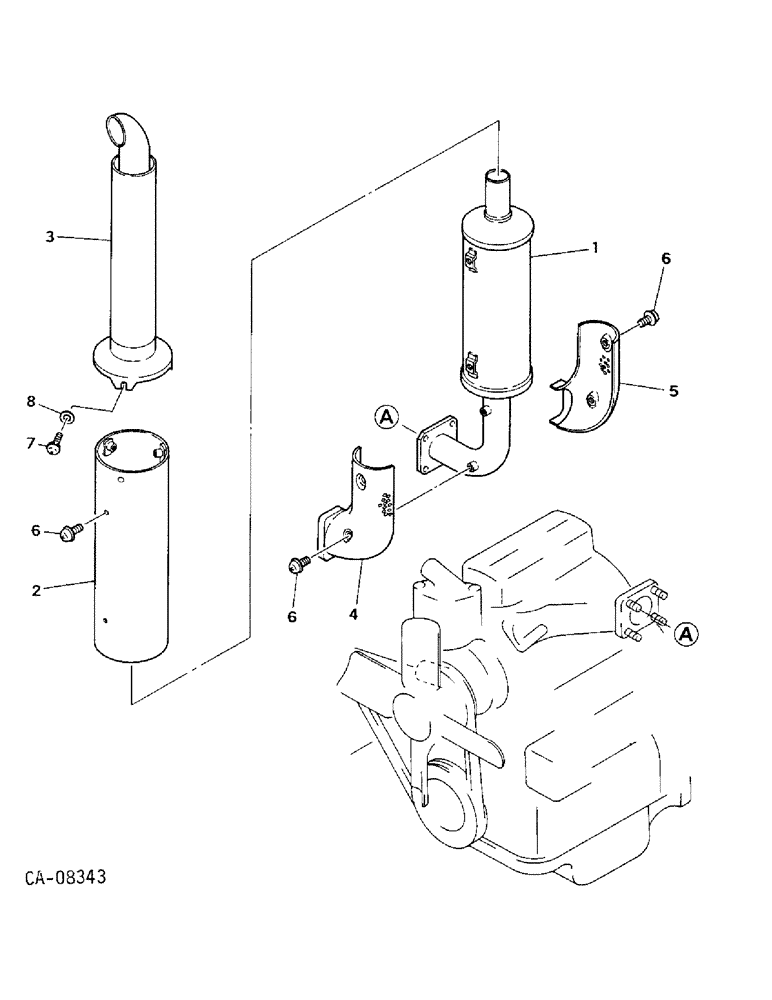

Запчасти Case IH 254 (12-04) - POWER, EXHAUST SYSTEM, VERTICAL Power

1

1269756C2

MUFFLER

ASSY

1шт.

2

1269757C1

HOUSING

BODY, muffler cover

1шт.

3

1273016C2

PIPE

vertical exhaust

1шт.

4

1269759C2

COVER ASSY

COVER, front exhaust pipe

1шт.

5

1269798C2

COVER ASSY

COVER, rear exhaust pipe

1шт.

6

30497R1

SCREW,Cross Pan Hd, M6 x 12

M6 x 12 class 4.8 P/HDCR

8шт.

933833R1

LOCK WASHER,M6

WASHER, 6 mm lock

8шт.

933348R1

WASHER,M10 x 20 x 2

10.8 x 21 x 2 mm pln

8шт.

7

30497R1

SCREW,Cross Pan Hd, M6 x 12

M6 x 12 class 4.8 P/HDCR

3шт.

933833R1

LOCK WASHER,M6

WASHER, 6 mm lock

3шт.

8

30325R1

WASHER,M6 x 13 x 2, HT

- M6 x 13 x 2, HT

3шт.
