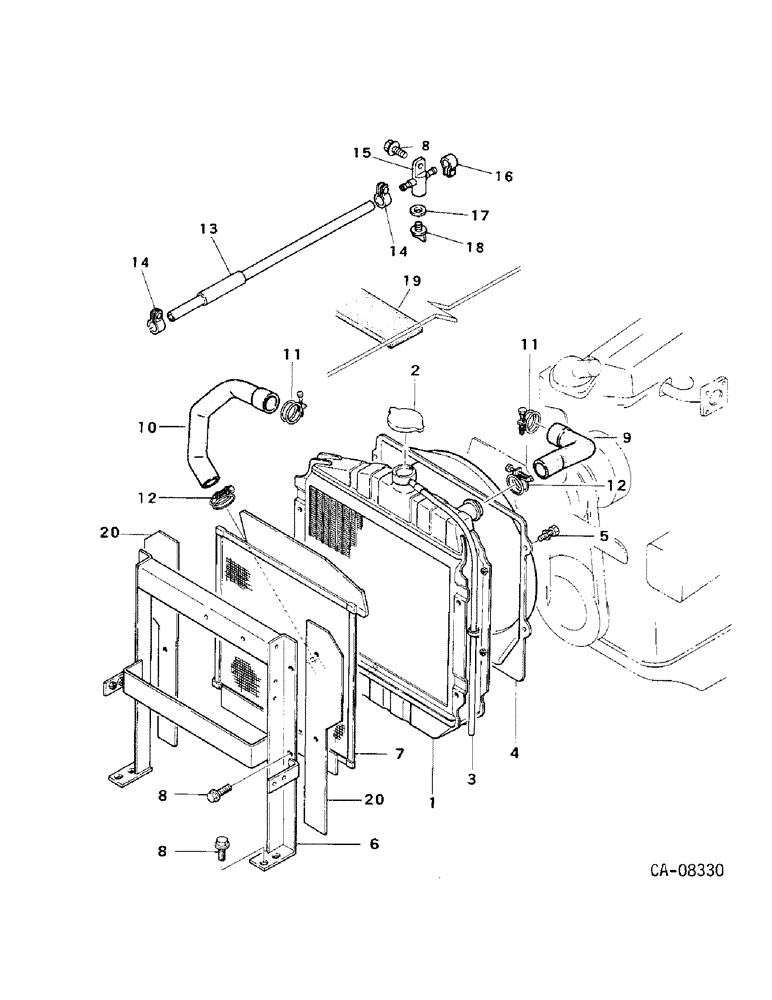

Запчасти Case IH 254 (06-03) - COOLING, RADIATOR AND CONNECTIONS, 244 AND 254 Cooling

1

1275079C1

RADIATOR

less cap

1шт.

2

1269639C1

CAP

radiator

1шт.

3

PIPE, vinyl overflow, furnish 24.5 in./622 mm from bulk roll marked 87769C1

1шт.

4

1269646C1

SHROUD

fan

1шт.

5

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

4шт.

934309R1

LOCK WASHER,M8

WASHER, 8 mm lock

4шт.

934675R1

WASHER,M8 x 16 x 1.6

8.8 x 17 x 1.6 mm

4шт.

6

1269617C1

BRACKET

radiator mounting

1шт.

7

1269618C1

SCREEN

radiator

1шт.

8

628-8020

BOLT,Hex, M8 x 20, 10.9, Full Thd

M8 x 20 class 8.8

8шт.

934309R1

LOCK WASHER,M8

WASHER, 8 mm lock

8шт.

30326R1

WASHER,M8 x 17.5 x 2, HT

8.8 x 17 x 2 mm

8шт.

9

1269619C1

RADIATOR HOSE,32.00 mm ID, 35.00 mm ID x 130.00 mm

Upper 32.00 mm ID, 35.00 mm ID x 130.00 mm

1шт.

10

1269620C1

RADIATOR HOSE,35.00 mm ID x 130.00 mm

Lower 35.00 mm ID x 130.00 mm

1шт.

11

279024R91

HOSE CLAMP,#24, 1.06/2.00 Type F Worm

CLAMP, no. 24 type f hose

2шт.

12

279024R91

HOSE CLAMP,#24, 1.06/2.00 Type F Worm

CLAMP, no. 24 type f hose

2шт.

13

PIPE, water, furnish 12.6 in./320 mm from bulk roll marked 389997C1

1шт.

14

27860R1

HOSE CLAMP,#06, .44/.78 Type F Worm, W/liner

CLAMP, no. 6 shoe type f hose

2шт.

15

1269622C1

TEE

1шт.

16

27860R1

HOSE CLAMP,#06, .44/.78 Type F Worm, W/liner

CLAMP, no. 6 shoe type f hose

1шт.

17

1275077C1

GASKET

PACKING, drain cock valve

1шт.

18

1275078C1

LOCK VALVE

VALVE, drain cock

1шт.

19

(Not used this application)

1шт.

20

1269624C1

SUPPORT

radiator plate

2шт.
