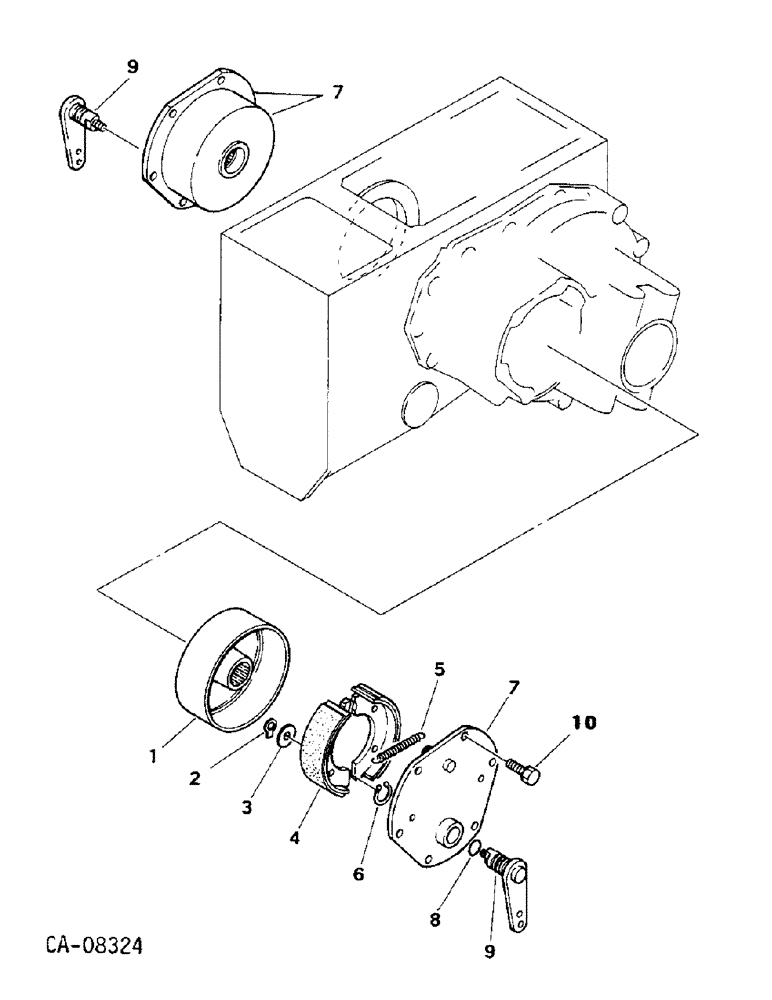

Запчасти Case IH 254 (04-02) - BRAKES, MASTER BRAKES, 244 AND 254 (5.1) - BRAKES

1

1269568C1

DRUM HUB

DRUM, brake

2шт.

2

1269569C1

RING

retaining

2шт.

3

1269570C1

WASHER

stop plate

2шт.

4

1269571C1

SHOE (ASSY)

SHOE, brake

4шт.

5

1269572C1

VALVE SPRING

SPRING, return

4шт.

6

933105R1

SNAP RING,M22, Ext

RING, 20.08 mm ext ret

2шт.

7

1269573C1

PLATE

torque

2шт.

8

1269871C1

O-RING,17.8mm ID x 2.4mm Width

2шт.

9

1271774C1

ARM ASSY.

ARM, cam shaft

2шт.

10

1269790C1

BOLT,Hex M10 x 25mm

BOLT w/washer

12шт.
