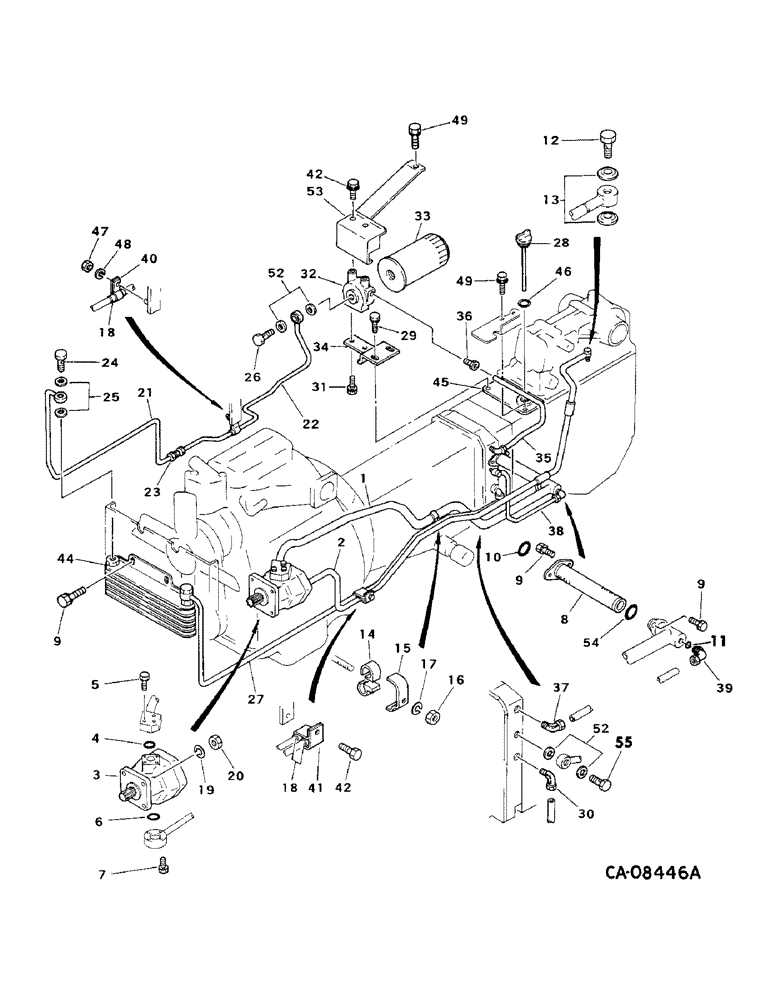

Запчасти Case IH 234 (10-03) - HYDRAULICS, HYDRAULIC SUPPLY, 234 WITH HYDROSTATIC TRANSMISSION (07) - HYDRAULICS

1

1288263C1

TUBE

SUCTION, replaces tube, 1273769C2 on tractors w/serial no. 008462 and below by also ordering tube, 1288264C1, elbow, 1288265C1, o-ring, 1269871C1 and bolt, 1288266C1

1шт.

2

1273770C1

TUBE

pressure

1шт.

3

1273401C91

PUMP

ASSY, hydraulic, tang drive, serial no. 008122 and below, only serviceable ref is kit, 1273407C1

1шт.

3

1282525C91

PUMP

ASSY, hydraulic, spline drive, serial no. 008123 and above, only serviceable ref is kit, 1273407C1

1шт.

1273407C1

SEAL KIT

seal repair

1шт.

4

1269872C1

O-RING

1шт.

5

86977789

BOLT,Hex, M6 x 1.0 x 35mm, Cl 8.8

3шт.

933833R1

LOCK WASHER,M6

WASHER, 6 mm lock

3шт.

6

1269871C1

O-RING,17.8mm ID x 2.4mm Width

1шт.

7

87317695

BOLT,Hex, M6 x 30mm, Cl 10.9, Full Thd

M6 x 30 class 8.8

4шт.

933833R1

LOCK WASHER,M6

WASHER, 6 mm lock

4шт.

8

1273771C1

FILTER

suction

1шт.

9

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

6шт.

934309R1

LOCK WASHER,M8

WASHER, 8 mm lock

6шт.

10

1273792C1

O-RING

O-RING

1шт.

11

1273793C1

O-RING

O-RING, serial no. 008462 and below

1шт.

11

1269871C1

O-RING,17.8mm ID x 2.4mm Width

serial no. 008463 and above

1шт.

12

1273402C1

BOLT,Hex, M14 x 42mm, Drilled

BOLT

1шт.

13

1273403C1

SEALING WASHER

SEAL, washer

2шт.

14

1273404C1

INSULATOR

tube

1шт.

15

1273794C1

CLAMP

1шт.

16

30281R1

NUT,M6, Cl 10

M6 class 10

1шт.

17

933833R1

LOCK WASHER,M6

WASHER, 6 mm lock

1шт.

18

SPACER, rubber, 3/8 ID x 11/16 OD, furnish 1.57 in./40 mm from bulk roll, 364357C1

9шт.

19

934309R1

LOCK WASHER,M8

WASHER, 8 mm lock

4шт.

20

30167R1

NUT,M8, Cl 10

M8 PHC class 10

4шт.

21

1273772C1

TUBE

oil cooler inlet

1шт.

22

1273773C1

TUBE

return

1шт.

23

1273774C1

UNION

1шт.

24

1282526C1

BOLT,M16 x 1.5 x 30mm

BOLT, union

2шт.

25

1273775C1

SEALING WASHER

seal

4шт.

26

1273776C1

BOLT,M16.6 x 35mm

BOLT, eye

1шт.

27

1273777C1

TUBE

oil cooler outlet

1шт.

28

1273778C2

PLUG

oiling

1шт.

29

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

934309R1

LOCK WASHER,M8

WASHER, 8 mm lock

2шт.

30

1273779C1

ELBOW

1шт.

31

1269760C1

BOLT,Hex, M10 x 1.25 x 16mm

W/WASHER

2шт.

933965R1

LOCK WASHER,M10

2шт.

32

1273781C2

HEAD (CYLINDER)

HEAD, filter

1шт.

33

1282528C1

FILTER, ELEMENT

FILTER, oil

1шт.

34

1273780C2

SUPPORT

filter

1шт.

35

1273783C2

TUBE

filter inlet

1шт.

36

1275158C1

COUPLING

NIPPLE, replaces 1273795C1

1шт.

37

1273784C1

ELBOW

1шт.

38

1288264C1

TUBE

hydrostatic transmission inlet, replaces tube, 1273785C1 on tractors w/serial no. 008462 and below by also ordering tube, 1288263C1, elbow, 1288265C1, o-ring, 1269871C1 and bolt, 1288266C1

1шт.

39

1273786C1

ELBOW

serial no. 008462 and below

1шт.

39

1288265C1

ELBOW UNION

ELBOW, serial no. 008463 and above

1шт.

40

1273796C1

CLAMP

1шт.

41

1282529C1

CLAMP

1шт.

42

628-8020

BOLT,Hex, M8 x 20, 10.9, Full Thd

M8 x 20 class 8.8

4шт.

934309R1

LOCK WASHER,M8

WASHER, 8 mm lock

4шт.

934675R1

WASHER,M8 x 16 x 1.6

8.8 x 17 x 1.6 mm

4шт.

43

(Not used this application)

1шт.

44

1273788C1

COOLER ASSY.

COOLER ASSY, oil

1шт.

45

1273789C1

COVER ASSY

COVER

1шт.

46

1269877C1

O-RING

1шт.

47

825-11410

NUT,M10 x 1.25, Cl 8

1шт.

48

933965R1

LOCK WASHER,M10

1шт.

49

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

3шт.

934309R1

LOCK WASHER,M8

WASHER, 8 mm lock

3шт.

934675R1

WASHER,M8 x 16 x 1.6

8.8 x 17 x 1.6 mm

3шт.

50

(Not used this application)

1шт.

51

(Not used this application)

1шт.

52

1282532C1

SEALING WASHER

seal

4шт.

53

1282530C1

COVER ASSY

COVER, filter

1шт.

54

1282531C1

O-RING

O-RING

1шт.

55

1273776C1

BOLT,M16.6 x 35mm

BOLT, eye, serial no. 008462 and below

1шт.

55

1288266C1

BOLT,M16.62 x 43mm

BOLT, eye, serial no. 008463 and above

1шт.
