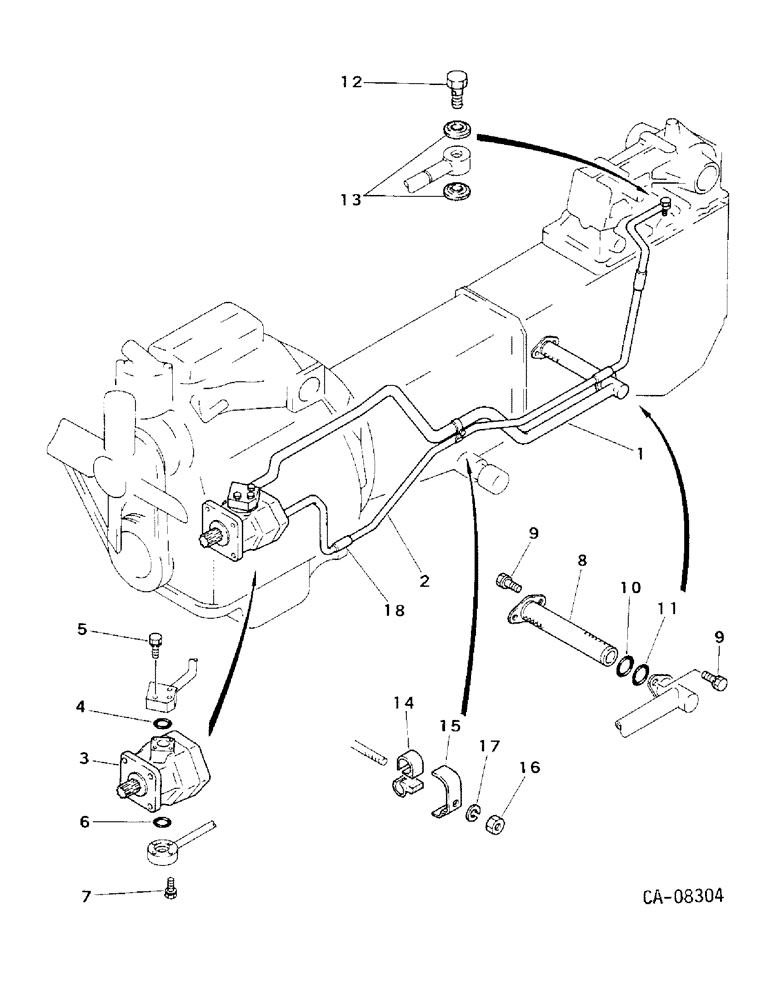

Запчасти Case IH 234 (10-01) - HYDRAULICS, HYDRAULIC SUPPLY, 234 WITH GEAR DRIVE TRANSMISSION (07) - HYDRAULICS

1

1273399C1

TUBE

suction

1шт.

2

1273400C1

TUBE

supply

1шт.

3

1273401C91

PUMP

ASSY, hydraulic, tang drive, serial no. 008683 and below, only serviceable ref is kit, 1273407C1

1шт.

3

1282525C91

PUMP

ASSY, hydraulic, spline drive, serial no. 008684 and above, only serviceable ref is kit, 1273407C1

1шт.

934309R1

LOCK WASHER,M8

WASHER, 8 mm lock

4шт.

30167R1

NUT,M8, Cl 10

M8 PHC class 10

4шт.

1273407C1

SEAL KIT

seal repair

1шт.

4

1269872C1

O-RING

1шт.

5

86977789

BOLT,Hex, M6 x 1.0 x 35mm, Cl 8.8

3шт.

933833R1

LOCK WASHER,M6

WASHER, 6 mm lock

3шт.

6

1269871C1

O-RING,17.8mm ID x 2.4mm Width

1шт.

7

87317695

BOLT,Hex, M6 x 30mm, Cl 10.9, Full Thd

M6 x 30 class 8.8

4шт.

933833R1

LOCK WASHER,M6

WASHER, 6 mm lock

4шт.

8

1273135C1

STRAINER ASSY.

FILTER, suction

1шт.

9

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

4шт.

934309R1

LOCK WASHER,M8

WASHER, 8 mm lock

4шт.

10

1269893C1

O-RING

O-RING

1шт.

11

1269892C1

O-RING

O-RING

1шт.

12

1273402C1

BOLT,Hex, M14 x 42mm, Drilled

BOLT, special

1шт.

13

1273403C1

SEALING WASHER

SEAL, washer

2шт.

14

1273404C1

INSULATOR

tube

1шт.

15

1273405C1

SUPPORT ASSY.

SUPPORT, tube

1шт.

16

30281R1

NUT,M6, Cl 10

M6 class 10

1шт.

17

933833R1

LOCK WASHER,M6

WASHER, 6 mm lock

1шт.

18

SPACER, rubber, furnish 1.57 in./40 mm from a bulk roll marked, 364357C1, replaces 1273406C1

1шт.
