Запчасти Case IH 234 (13-13) - SUPERSTRUCTURE, SEAT, TOOL BOX AND SUPPORTS, 234 (05) - SUPERSTRUCTURE

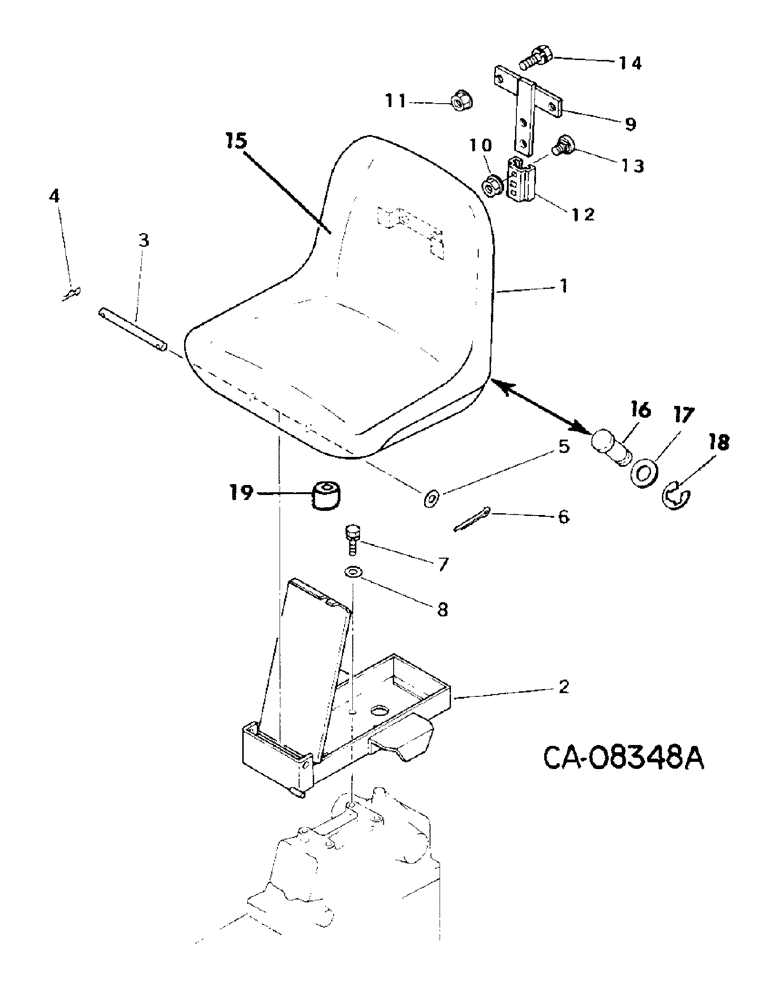

Схема запчастей Case IH 234 - (13-13) - SUPERSTRUCTURE, SEAT, TOOL BOX AND SUPPORTS, 234 (05) - SUPERSTRUCTURE
6
4
13
11
8
5
10
14
18
15
7
17
16
3
2
19
9
12
1

Артикул

Название

Примечание

Количество

1

81002C91

SEAT

ASSY, includes ref nos 15 - 18, replaces 1273599C91 by also ordering seat stop 1288339C1

1шт.

2

1269718C1

BOX

TOOL BOX

1шт.

3

1269719C1

PIN

seat hinge

1шт.

4

1269735C1

AXLE PIN

PIN, snap

1шт.

5

934675R1

WASHER,M8 x 16 x 1.6

8.8 x 17 x 1.6mm

1шт.

6

31113R1

PIN, 2.5 x 20mm pln cot

1шт.

7

1269777C1

BOLT,M10 x 30mm

W/WASHER

4шт.

8

30282R1

WASHER,M10 x 20 x 2

10.8 x 21 x 2mm

4шт.

9

1269720C1

SUPPORT

SMV, bracket

1шт.

10

30167R1

NUT,M8, Cl 10

M8 PHC class 10

4шт.

11

31109R1

NUT,M6 x 1, Flg, Cl 8

M6 class 10 flg

2шт.

12

398976R1

BRACKET

SUPPORT, SMV

1шт.

13

30473R1

CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 16mm, Cl 8.8

BOLT, M8 x 16 crg class 8.8

2шт.

14

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

M6 x 16 class 8.8

2шт.

933833R1

LOCK WASHER,M6

WASHER, 6 mm lock

2шт.

15

COVER ASSY, seat, order kit, 1273439C91

1шт.

16

1273593C1

PIN

retaining

2шт.

17

933571R1

WASHER,M14 x 28 x 2.5

15.3 x 28 x 2.5mm

2шт.

18

1273592C1

CIRCLIP,M11

RING, snap

2шт.

19

1288339C1

STOP

seat

1шт.

1273439C91

PACKAGE

KIT, seat covering service, provides all material and hardware required to re-upholster one seat

1шт.

Выбрано товаров: 21
