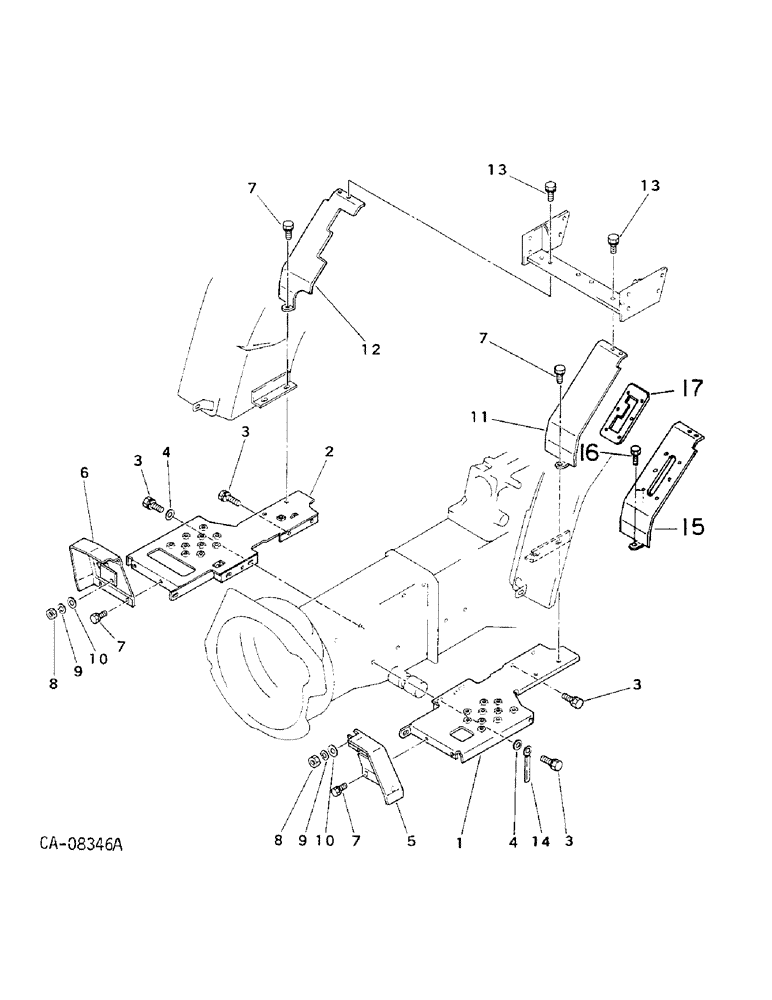

Запчасти Case IH 234 (13-10) - SUPERSTRUCTURE, STEPS AND SUPPORT, 234 (05) - SUPERSTRUCTURE

1

1269671C2

PLATE ASSY.

PLATE, LH step

1шт.

2

1269672C2

PLATE ASSY.

PLATE, RH step

1шт.

3

1269790C1

BOLT,Hex M10 x 25mm

BOLT W/WASHER

8шт.

4

30282R1

WASHER,M10 x 20 x 2

10.8 x 21 x 2mm

5шт.

5

1273598C1

SUPPORT ASSY.

SUPPORT, LH step plate

1шт.

6

1269674C1

SUPPORT ASSY.

SUPPORT, RH step plate

1шт.

7

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

6шт.

934309R1

LOCK WASHER,M8

WASHER, 8 mm lock

6шт.

30326R1

WASHER,M8 x 17.5 x 2, HT

8.8 x 17 x 2mm

6шт.

8

825-11412

NUT,M12 x 1.25, Cl 8

2шт.

9

933966R1

LOCK WASHER,M12

WASHER, 12mm lock

2шт.

10

933587R1

WASHER,M12 x 24 x 2.5

13.3 x 24 x 2.5mm

2шт.

11

1269675C1

SUPPORT

LH rear fender

1шт.

12

1269676C1

SUPPORT ASSY.

SUPPORT, RH rear fender

1шт.

13

628-8020

BOLT,Hex, M8 x 20, 10.9, Full Thd

M8 x 20 class 8.8

4шт.

934309R1

LOCK WASHER,M8

WASHER, 8 mm lock

4шт.

14

1273580C1

CLAMP

1шт.

15

1273437C1

SUPPORT

LH rear fender, hydrostatic transmission only

1шт.

16

1273438C1

SUPPORT

PLATE, support, hydrostatic transmission only

1шт.

17

30422R1

SCREW,Cross Pan Hd, M6 x 16

M6 x 16 class 4.8 pln F/HDCR, hydrostatic transmission only

6шт.

933833R1

LOCK WASHER,M6

WASHER, 6 mm lock

6шт.

934948R1

WASHER,M6

6.4 x 12.5 x 1.6mm

6шт.

1269789C1

BOLT,Hex M10 x 20mm

BOLT W/WASHER

2шт.
