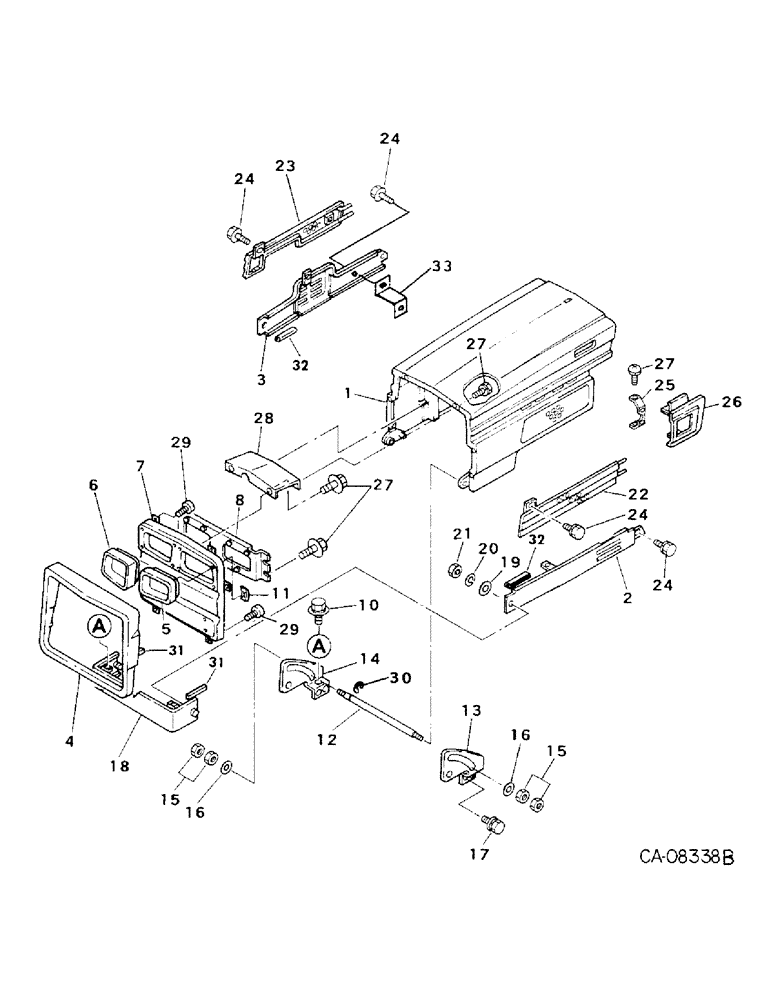

Запчасти Case IH 234 (13-01) - SUPERSTRUCTURE, HOOD, PANELS, GRILLE AND SUPPORTS, 234 (05) - SUPERSTRUCTURE

1

1273602C3

HOOD

bonnet

1шт.

2

1273604C1

PANEL

LH hood (cover)

1шт.

3

1273605C1

PANEL

RH hood (cover)

1шт.

4

1273607C1

GRILLE

housing

1шт.

5

1269699C1

BEZEL & GASKET

BEZEL, LH headlight

1шт.

6

1269700C1

BEZEL

RH headlight

1шт.

7

1273608C1

SCREEN

grille

1шт.

8

1269702C1

HOUSING

headlight

1шт.

9

(Not used this application)

1шт.

10

628-8020

BOLT,Hex, M8 x 20, 10.9, Full Thd

M8 x 20 class 8.8

2шт.

934309R1

LOCK WASHER,M8

WASHER, 8 mm lock

2шт.

934675R1

WASHER,M8 x 16 x 1.6

8.8 x 17 x 1.6mm

2шт.

11

445165

NUT,5/32", Push-on

5/32 med PHC spr style I

8шт.

12

1273609C1

ROD

hood pivot, bar

1шт.

13

1273610C1

SUPPORT

LH hinge, bracket

1шт.

14

1273611C1

SUPPORT

RH hinge, bracket

1шт.

15

1269793C1

NUT

special jam

4шт.

16

30282R1

WASHER,M10 x 20 x 2

10.8 x 21 x 2mm

2шт.

17

628-8020

BOLT,Hex, M8 x 20, 10.9, Full Thd

M8 x 20 class 8.8

3шт.

17

930294R1

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

M8 x 30 pln class 8.8

1шт.

934309R1

LOCK WASHER,M8

WASHER, 8 mm lock

4шт.

18

1273612C1

SUPPORT

lower frt grille

1шт.

19

(Not used this application)

1шт.

20

(Not used this application)

1шт.

21

31082R1

NUT,M8 x 1.25, Flg, Cl 8

M8 class 10 PHC flg

2шт.

22

1269707C1

PANEL

LH side

1шт.

23

1269708C1

PANEL

RH side

1шт.

24

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

5шт.

24

931829R1

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

2шт.

934309R1

LOCK WASHER,M8

WASHER, 8 mm lock

7шт.

934675R1

WASHER,M8 x 16 x 1.6

8.8 x 17 x 1.6mm

7шт.

25

1269709C1

SUPPORT ASSY.

SUPPORT, rear side cover

1шт.

26

1269710C1

COVER ASSY

COVER, rear side

1шт.

27

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

M6 x 16 class 8.8

14шт.

933833R1

LOCK WASHER,M6

WASHER, 6 mm lock

14шт.

934948R1

WASHER,M6

6.4 x 12.5 x 1.6mm

14шт.

28

1273615C1

BRACKET

1шт.

29

1273616C1

SELF-TAP SCREW,Phil, M5 x 16mm

SCREW, tapping

4шт.

30

1271817C1

CIRCLIP,M9

RING, snap

1шт.

31

CUSHION, 20mm x 20mm x 100mm long, furnish 3.94 in./100mm from bulk roll marked, 73213C1, 234 gear drive tractors w/serial no. 008912 and above, 234 hydrostatic drive tractors with serial no. 008463 and above

2шт.

32

SEAL, rubber, furnish 1.85 in./47mm from bulk roll marked, 198578C1, 234 gear drive tractors w/serial no. 008912 and above, 234 hydrostatic drive tractors with serial no. 008463 and above

2шт.

33

1288467C1

SUPPORT

RH hood panel, 234 gear drive tractors w/serial no. 008684 and above, 234 hydrostatic drive tractor with serial number 008003 & above

1шт.
