(07-70) - DRIVE TRAIN, HYDROSTATIC TRANSMISSION, 234, FOUR WHEEL DRIVE CONTROLS

Запчасти Case IH 234 (07-70) - DRIVE TRAIN, HYDROSTATIC TRANSMISSION, 234, FOUR WHEEL DRIVE CONTROLS (04) - Drive Train

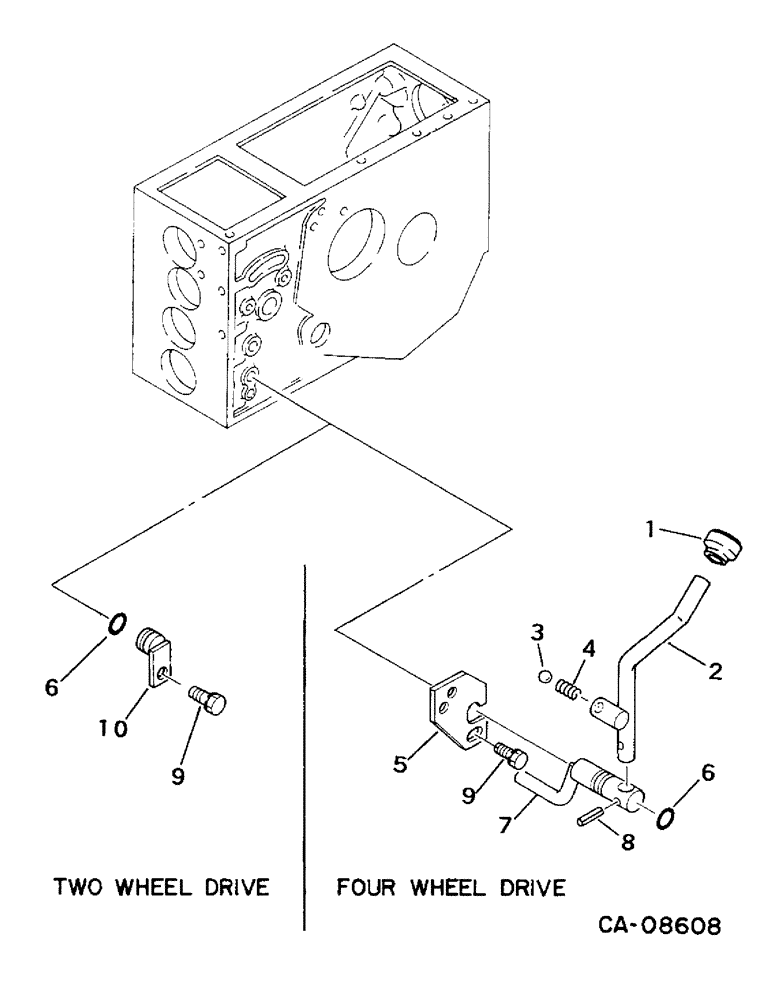

Схема запчастей Case IH 234 - (07-70) - DRIVE TRAIN, HYDROSTATIC TRANSMISSION, 234, FOUR WHEEL DRIVE CONTROLS (04) - Drive Train
4
6
8
9
10
2
6
5
9
3
7
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1273497C1

KNOB

1шт.

2

1282521C1

LEVER

four wheel drive

1шт.

3

17011R1

BALL

11/32 grade 25 metal

1шт.

4

1273456C1

VALVE SPRING

SPRING, lever

1шт.

5

1282522C1

PLATE ASSY.

PLATE, four wheel drive

1шт.

6

1269871C1

O-RING,17.8mm ID x 2.4mm Width

1шт.

7

1282523C1

LEVER

shifter

1шт.

8

31123R1

LOCK PIN,M5 x 22, Slotted

PIN, 5 x 22 mm pln slt spr

1шт.

9

628-8020

BOLT,Hex, M8 x 20, 10.9, Full Thd

M8 x 20 class 8.8

1шт.

934309R1

LOCK WASHER,M8

WASHER, 8 mm lock

1шт.

10

1282524C1

PLUG

1шт.
