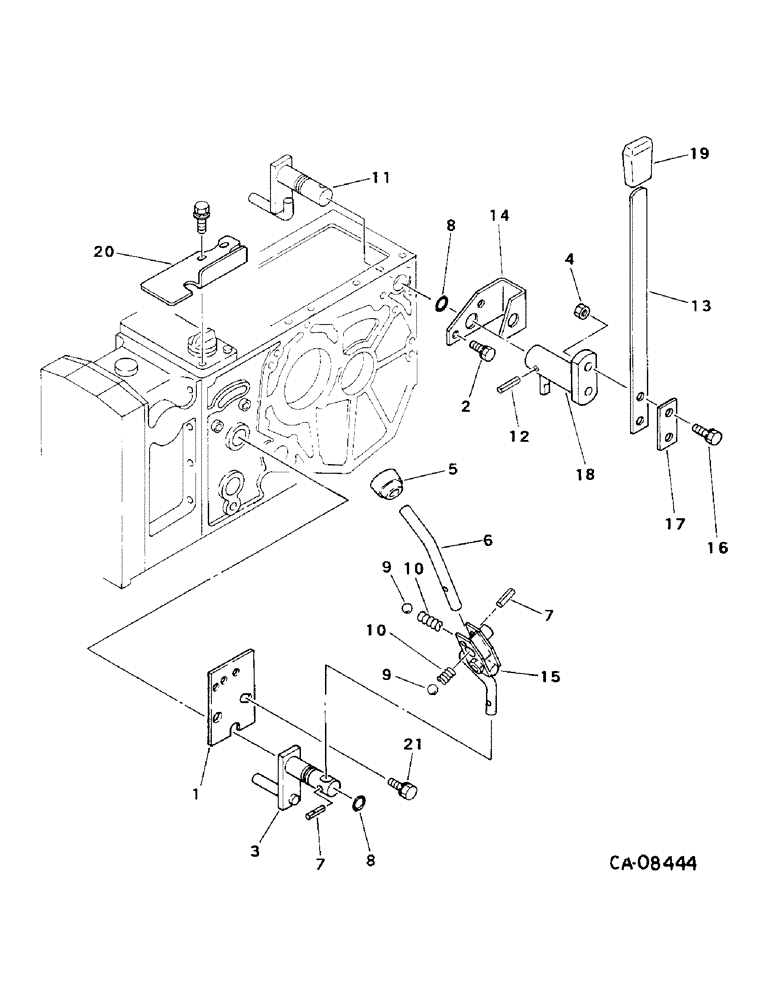

Запчасти Case IH 234 (07-66) - DRIVE TRAIN, HYDROSTATIC TRANSMISSION, 234, TRANSMISSION CONTROLS (04) - Drive Train

1

1265371C1

LARGE PLATE

PLATE

1шт.

2

628-8020

BOLT,Hex, M8 x 20, 10.9, Full Thd

M8 x 20 class 8.8

2шт.

934309R1

LOCK WASHER,M8

WASHER, 8 mm lock

2шт.

3

1265372C1

LEVER

shifter

1шт.

4

30167R1

NUT,M8, Cl 10

M8 PHC class 10

1шт.

5

1265380C1

KNOB

grip

1шт.

6

1265373C1

LEVER

range

1шт.

7

30320R1

PIN,M5 x 33, Coiled

5 x 32 mm pln cld spr

2шт.

8

1269871C1

O-RING,17.8mm ID x 2.4mm Width

2шт.

9

17011R1

BALL

11/32 grade 25 metal

2шт.

10

1273456C1

VALVE SPRING

SPRING

2шт.

11

1265374C1

LEVER

PTO, shifter

1шт.

12

31124R1

LOCK PIN,M5 x 32, Slotted

PIN, 5 x 32 mm pln slt spr

1шт.

13

1265375C1

LEVER

PTO

1шт.

14

1265376C1

BRACKET

switch

1шт.

15

1273766C1

BRACKET

engine start switch

1шт.

16

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

934309R1

LOCK WASHER,M8

WASHER, 8 mm lock

2шт.

17

1265379C1

PLATE ASSY.

PLATE

1шт.

18

1265378C1

ARM

PTO

1шт.

19

1273379C1

KNOB

grip

1шт.

20

1265377C1

GUIDE

range lever

1шт.

628-8020

BOLT,Hex, M8 x 20, 10.9, Full Thd

M8 x 20 class 8.8

2шт.

934309R1

LOCK WASHER,M8

WASHER, 8 mm lock

2шт.

934675R1

WASHER,M8 x 16 x 1.6

8.8 x 17 x 1.6 mm

2шт.

21

628-8020

BOLT,Hex, M8 x 20, 10.9, Full Thd

M8 x 20 class 8.8

2шт.

934309R1

LOCK WASHER,M8

WASHER, 8 mm lock

2шт.
