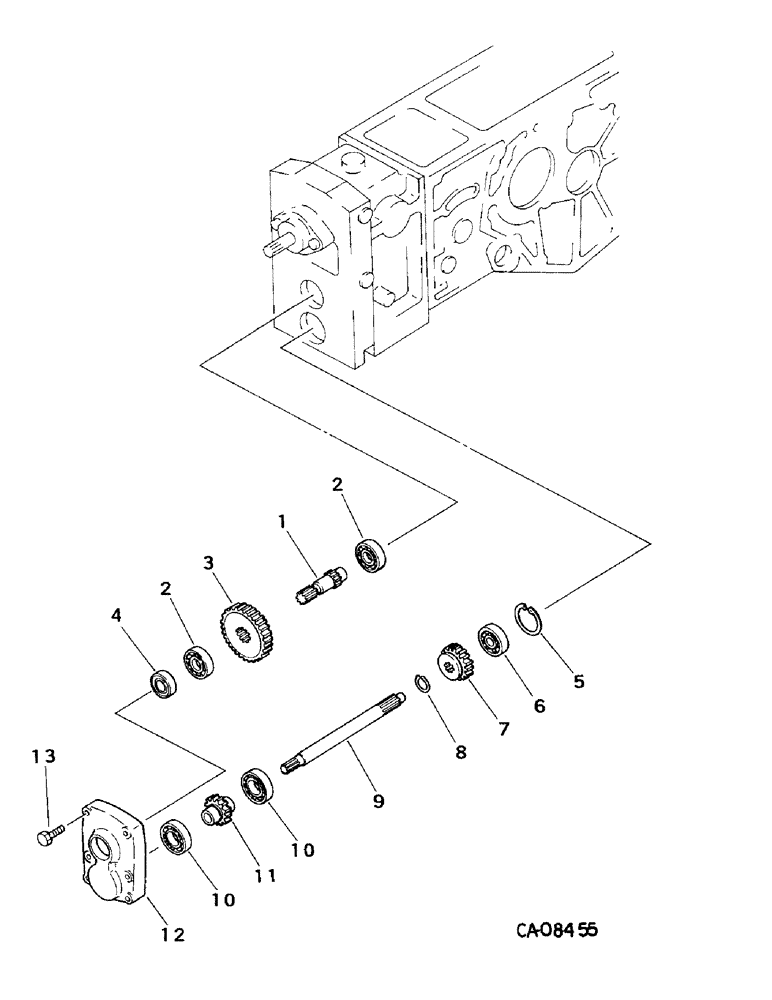

Запчасти Case IH 234 (07-64) - DRIVE TRAIN, HYDROSTATIC TRANSMISSION, 234, FRONT DRIVE POWER TAKE OFF (04) - Drive Train

1

1273752C1

SHAFT HOUSING

SHAFT

1шт.

2

1271855C91

BEARING, BALL

BEARING

2шт.

3

1273753C1

GEAR

33 teeth

1шт.

4

1273179C1

OIL SEAL

SEAL, oil

1шт.

5

933235R1

SNAP RING,M40, Int

RING, 43.11 mm int ret

1шт.

6

1273764C91

BALL BEARING

BEARING

1шт.

7

1273754C1

GEAR WHEEL

GEAR, 20 teeth

1шт.

8

933123R1

SNAP RING,M20, Ext

RING, 18.08 mm ext ret

1шт.

9

1273755C1

SHAFT HOUSING

SHAFT

1шт.

10

1271857C91

BEARING, BALL

BEARING

2шт.

11

1273756C1

GEAR

15 teeth

1шт.

12

1273757C1

HOLDER

bearing

1шт.

13

16044024

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8

6шт.

934309R1

LOCK WASHER,M8

WASHER, 8 mm lock

6шт.
