(07-60) - DRIVE TRAIN, HYDROSTATIC TRANSMISSION, 234, RANGE GEARS

Запчасти Case IH 234 (07-60) - DRIVE TRAIN, HYDROSTATIC TRANSMISSION, 234, RANGE GEARS (04) - Drive Train

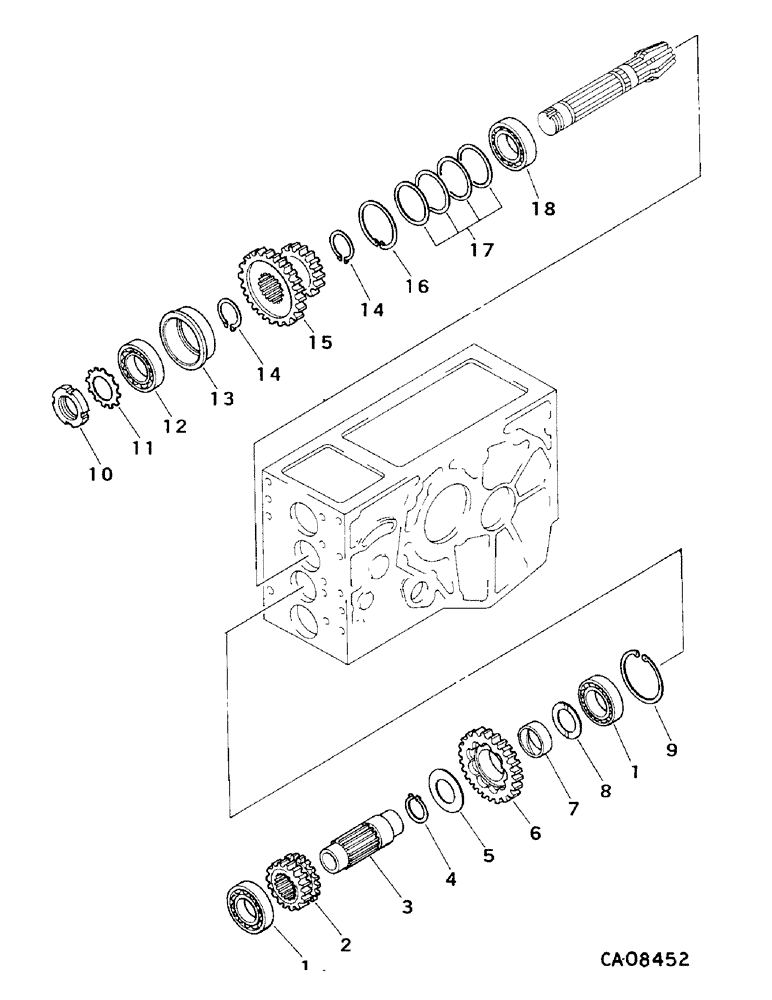

Схема запчастей Case IH 234 - (07-60) - DRIVE TRAIN, HYDROSTATIC TRANSMISSION, 234, RANGE GEARS (04) - Drive Train
2
11
3
16
9
7
14
10
13
6
7
8
15
4
5
18
1
17
12
14
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1271857C91

BEARING, BALL

2шт.

2

1273725C1

GEAR WHEEL

GEAR, 18 teeth

1шт.

3

1273726C1

SHAFT HOUSING

COUNTERSHAFT

1шт.

4

933086R1

SNAP RING,M30, Ext

27.48 mm ext ret

1шт.

5

1273731C1

WASHER

1шт.

6

1273727C1

GEAR WHEEL

GEAR, 29 teeth

1шт.

7

1963255C1

BUSHING

replaces 1273728C1 and 1280999C1

1шт.

8

1273729C2

WASHER

1шт.

9

933032R1

SNAP RING,M52, Int

RING, 55.74 mm int ret

1шт.

10

31099R1

LOCK NUT,M25 x 1.5, Bearing

NUT, M25 x 1.5 bearing lock

1шт.

11

1273562C1

WASHER

M25 lock

1шт.

12

1273175C91

TAPERED BEARING

taper

1шт.

13

1269456C1

WASHER

HOLDER

1шт.

14

933074R1

SNAP RING,M28, Ext

RING, 25.48 mm ext ret

2шт.

15

1273730C1

GEAR WHEEL

GEAR, 31 and 20 teeth

1шт.

16

1273565C1

RING

snap

1шт.

17

1273570C1

SHIM

SET, drive pinion

1шт.

18

1273567C91

TAPERED BEARING

BEARING, taper roller

1шт.

The 1280999C1 fits on Screen used on English Tractors.

1шт.
