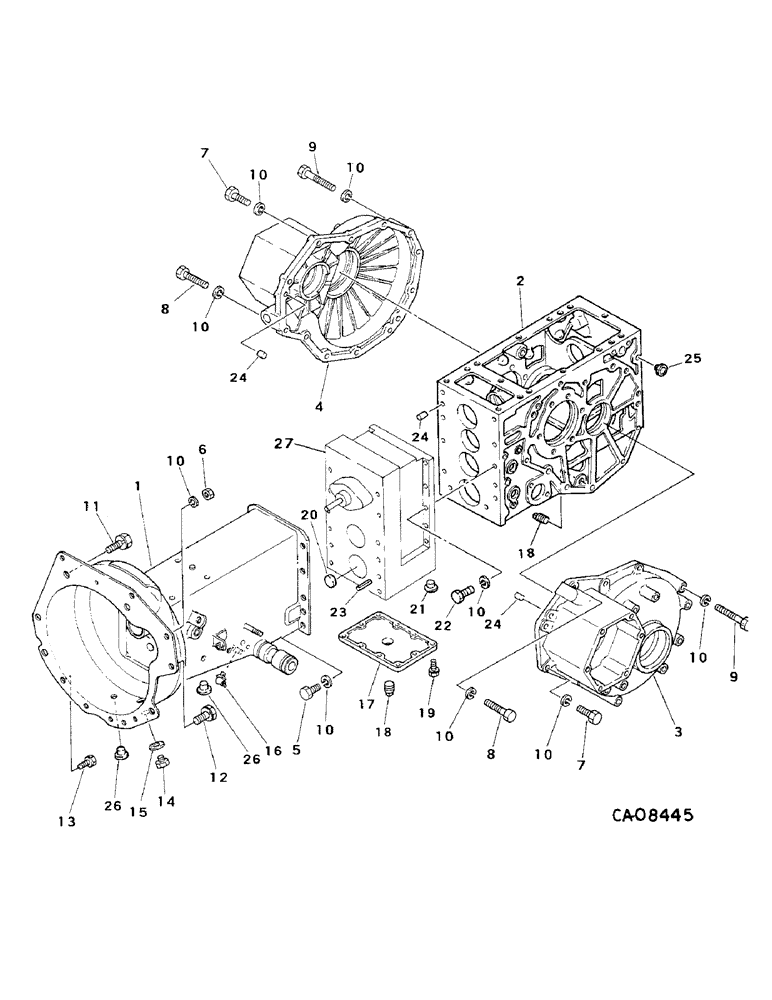

Запчасти Case IH 234 (07-55) - DRIVE TRAIN HYDROSTATIC TRANS., 234, CLUTCH HOUSING, TRANS. CASE, TRANS. ASSY AND CONNECTIONS (04) - Drive Train

1

1282587C1

HOUSING

clutch, replaces 1273715C1

1шт.

2

1273716C2

CASE

transmission

1шт.

3

1269444C1

CASE

final drive LH

1шт.

4

1269443C1

CASE

final drive RH

1шт.

5

1273394C1

BOLT,Hex, M10 x 1.25 x 25mm

M10 x 25

10шт.

6

825-11410

NUT,M10 x 1.25, Cl 8

1шт.

7

1273387C1

BOLT,Hex, M10 x 1.25 x 35mm, Half Thd

M10 x 35

12шт.

8

1273388C1

BOLT,Hex, M10 x 1.25 x 55mm, Half Thd

M10 x 55

2шт.

9

1273389C1

BOLT,Hex, M10 x 1.25 x 70mm, Half Thd

M10 x 70

10шт.

10

933965R1

LOCK WASHER,M10

44шт.

11

1269781C1

BOLT,Hex, M12 x 35mm

BOLT W/WASHER, M12 x 35

4шт.

12

1269791C1

BOLT,Hex M12 x 20mm

W/WASHER, M12 x 20

2шт.

13

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

4шт.

934309R1

LOCK WASHER,M8

WASHER, 8 mm lock

4шт.

14

1273396C1

BOLT,Hex, M12 x 1.25 x 20mm

1шт.

15

1269439C1

SEALING WASHER

WASHER, seal

1шт.

16

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8 PTF short 65D lub

1шт.

17

1273717C1

COVER ASSY

COVER, under

1шт.

18

103885

PLUG,Slotted, 3/8" NPT

3/8 pln slt/hdl pipe

3шт.

19

931828R1

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

10шт.

933833R1

LOCK WASHER,M6

WASHER, 6 mm lock

10шт.

20

1269521C1

PLUG

two wheel drive tractors only

1шт.

21

PLUG (NSS)

6шт.

22

1273721C1

BOLT,M10 x 1.25 x 30mm

M10 x 30

10шт.

23

30721R1

DOWEL,M10 x 35

PIN, 10 x 35 mm pln hdn dowel

2шт.

24

30346R1

DOWEL,M10 x 20

PIN, 10 x 20 mm pln hdn dowel

6шт.

25

1271889C1

CYLINDER END CAP

CAP, rubber

6шт.

26

1265383C1

CAP

1шт.

27

1275188C91

MOTOR

TRANSMISSION ASSY, hydrostatic, for components see list of parts under details of hydrostatic transmission assy

1шт.
