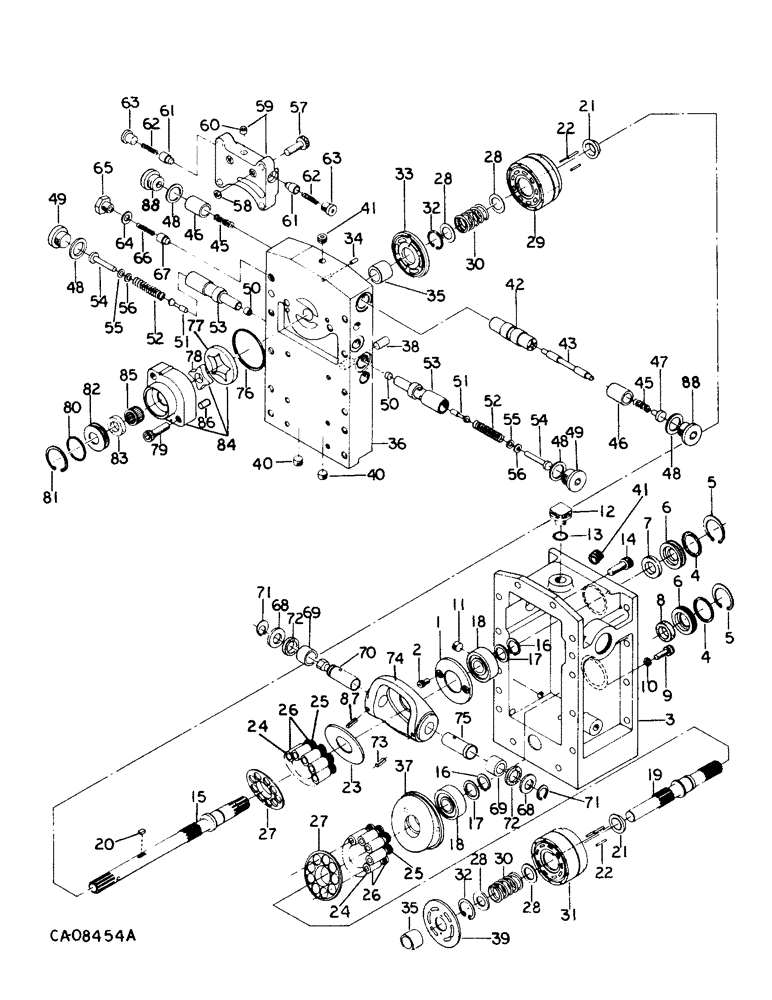

Запчасти Case IH 234 (07-52) - DRIVE TRAIN, HYDROSTATIC TRANSMISSION, 234, TRANSMISSION ASSY (04) - Drive Train

1275188C91

MOTOR

TRANSMISSION ASSY, hydrostatic

1шт.

1

1275280C1

PLATE ASSY.

PLATE

1шт.

2

31260R1

HEX SOC SCREW,M6 x 10mm, Cl 12.9

BOLT, M6 x 10, replaces 1275281C1

2шт.

3

HOUSING (NSS), furnish trans. assy

1шт.

4

O-RING (NSS), furnish kit 98976C91

2шт.

5

933235R1

SNAP RING,M40, Int

RING, 43.11 mm int ret

2шт.

6

COVER, oil seal (NSS), furnish kit 98976C91

2шт.

7

SEAL, oil (NSS), furnish kit 98976C91

1шт.

8

SEAL, oil (NSS), furnish kit 98976C91

1шт.

9

31261R1

HEX SOC SCREW,M8 x 35mm, Cl 12.9

SCREW, M8 x 35 PHC h/shd cap, replaces 1275283C1

2шт.

10

WASHER, seal (NSS), furnish kit 98976C91

3шт.

11

103884

PLUG,Slotted, 1/4" NPT

1/4 pln slt/hdl pipe

1шт.

12

1275185C1

PLUG

housing

1шт.

13

1275181C1

O-RING

O-RING, plug, also part of kit 98976C91

1шт.

14

31259R1

HEX SOC SCREW,M10 x 25mm, Cl 12.9

SCREW, M10 x 25 PHC h/shd cap, replaces 1275285C1

12шт.

15

1275286C1

SHAFT HOUSING

SHAFT, driving

1шт.

16

933123R1

SNAP RING,M20, Ext

RING, 18.08 mm ext ret, replaces 1275287C1

2шт.

17

1275288C1

PLATE ASSY.

PLATE

2шт.

18

1271855C91

BEARING, BALL

BEARING ASSY

2шт.

19

1275289C1

SHAFT HOUSING

SHAFT

1шт.

20

1275290C1

KEY

shaft

1шт.

21

1275291C1

KNUCKLE JOINT

KNUCKLE

2шт.

22

1275292C1

AXLE PIN

PIN

6шт.

23

1275293C1

PLATE ASSY.

PLATE

1шт.

24

SHOE (NSS), furnish kit 98977C91

18шт.

25

PISTON (NSS), furnish kit 98977C91

18шт.

26

98977C91

PISTON ASSY.

KIT, piston & shoe

2шт.

27

1275297C1

RETAINER

2шт.

28

1275298C1

PLATE ASSY.

PLATE, spring

4шт.

29

1275299C1

BLOCK

cylinder

1шт.

30

1275300C1

VALVE SPRING

SPRING

2шт.

31

1275301C1

BLOCK

cylinder

1шт.

32

933917R1

SNAP RING,M28, Int

RING, 29.85 mm int ret, replaces 1275302C1

2шт.

33

1275303C1

PLATE

valve LH

1шт.

34

31263R1

DOWEL,M4 x 12

PIN, 4 x 12 mm pln hdn dowel, replaces 1275304R1

2шт.

35

1275305C91

NEEDLE BEARING

BEARING, needle

2шт.

36

1275306C1

PLATE

valve holder

1шт.

37

1275307C1

PLATE ASSY.

PLATE

1шт.

38

30346R1

DOWEL,M10 x 20

PIN, 10 x 20 mm pln hdn dowel, replaces 1275308C1

2шт.

39

1275309C1

PLATE ASSY.

PLATE, valve

1шт.

40

444692

PLUG,Hex Soc, 1/4"-18

1/4-18 znp hex/skt auto pipe, replaces 1275310C1

2шт.

41

444688

PLUG

1/8-27 znp hex/skt auto pipe, replaces 1275311C1

2шт.

42

CASING (NSS), furnish kit 1282972C92

1шт.

43

SPOOL, furnish kit 1282972C92

1шт.

44

(Not used this application)

1шт.

45

1275315C3

SPRING

also part of kit 1282972C92

2шт.

46

RETAINER (NSS), furnish kit 1282972C92

2шт.

47

SLEEVE, furnish kit 1282972C92

2шт.

48

1275190C1

SEALING RING

RING, seal, also part of kit 1282972C92, 1282974C91 and 98976C91

2шт.

49

1275186C1

PLUG

also part of kit 1282974C91

2шт.

50

EXPANDER (NSS), furnish kit 1282974C91

1шт.

51

VALVE, poppet (NSS), furnish kit 1282974C91

1шт.

52

1275320C1

SPRING

also part of kit 1282974C91

1шт.

53

HOUSING, valve (NSS), furnish kit 1282974C91

1шт.

54

HOLDER, spring (NSS), furnish kit 1282974C91

1шт.

55

WASHER, 0.5 (NSS), furnish kit 1282974C91

1шт.

56

WASHER, 0.1 (NSS), furnish kit 1282974C91

1шт.

57

31262R1

HEX SOC SCREW,M8 x 30mm, Cl 12.9

SCREW, M8 x 30 PHC h/shd cap, replaces 1275325C1

4шт.

58

O-RING (NSS), furnish kit 98976C91

2шт.

59

98979C1

BLOCK

ASSY

1шт.

60

EXPANDER (NSS), furnish block 98979C1

1шт.

61

1275329C1

SPOOL

check

2шт.

62

1275330C1

SPRING

2шт.

63

1275331C1

PLUG

2шт.

64

1275191C1

RING

seal, also part of kit 98976C91

1шт.

65

1275187C1

PLUG

1шт.

66

1275332C1

SPRING

1шт.

67

1275333C1

SPOOL

1шт.

68

1275334C1

PLATE

2шт.

69

1275335C1

BUSHING

2шт.

70

1275336C1

SHAFT

1шт.

71

934001R1

SNAP RING,M18, Ext

RING, 16.14 mm ext ret, replaces 1275337C1

2шт.

72

SEAL, oil (NSS), furnish kit 98976C91

2шт.

73

30424R1

LOCK PIN,M6 x 14, Slotted

PIN, 6 x 14 mm pln slt-spr, replaces 1275339C1

1шт.

74

1275340C1

HOUSING

PLATE

1шт.

75

1275341C1

SHAFT

1шт.

76

O-RING (NSS), furnish kit 98976C91

1шт.

77

PLATE, vane (NSS), furnish kit 98978C91

1шт.

78

ROTOR (NSS), furnish kit 98978C91

1шт.

79

905261R1

HEX SOC SCREW,M10 x 40mm, Cl 12.9

SCREW, M10 x 40 hex soc hd cap

2шт.

80

O-RING (NSS), order kit 98976C91

1шт.

81

933235R1

SNAP RING,M40, Int

RING, 43.11 mm int ret, replaces 1275182C1

1шт.

82

COVER, oil seal (NSS), order kit 98976C91

1шт.

83

SEAL, oil (NSS), order kit 98976C91

1шт.

84

98978C91

STRIPPER PACKAGE

HOUSING ASSY

1шт.

85

1275346C91

NEEDLE BEARING

BEARING, needle

1шт.

86

31264R1

DOWEL,M6 x 12

PIN, 6 x 72 mm pln hdn dowel, replaces 1275347C1

2шт.

87

31122R1

LOCK PIN,M6 x 40, Slotted

PIN, 6 x 40 mm pln slt spr

1шт.

88

98975C1

PLUG

2шт.

98976C91

STRIPPER PACKAGE

KIT, hydraulic seals, consists of ref nos 4, 6, 7, 8, 10, 13, 48, 58, 64, 72, 76, 80, 82 & 83

1шт.

1282972C92

VALVE

KIT, neutral valve, consists of ref nos 42, 43, 45, 46, 47, 48 & 88

1шт.

1282974C91

VALVE

KIT, high pressure valve, consists of ref nos 48, 49, 50, 51, 52, 53, 54, 55 & 56

2шт.
