(07-29) - DRIVE TRAIN, SELECTOR AND COUNTER GEARS, LOWER, 234

Запчасти Case IH 234 (07-29) - DRIVE TRAIN, SELECTOR AND COUNTER GEARS, LOWER, 234 (04) - Drive Train

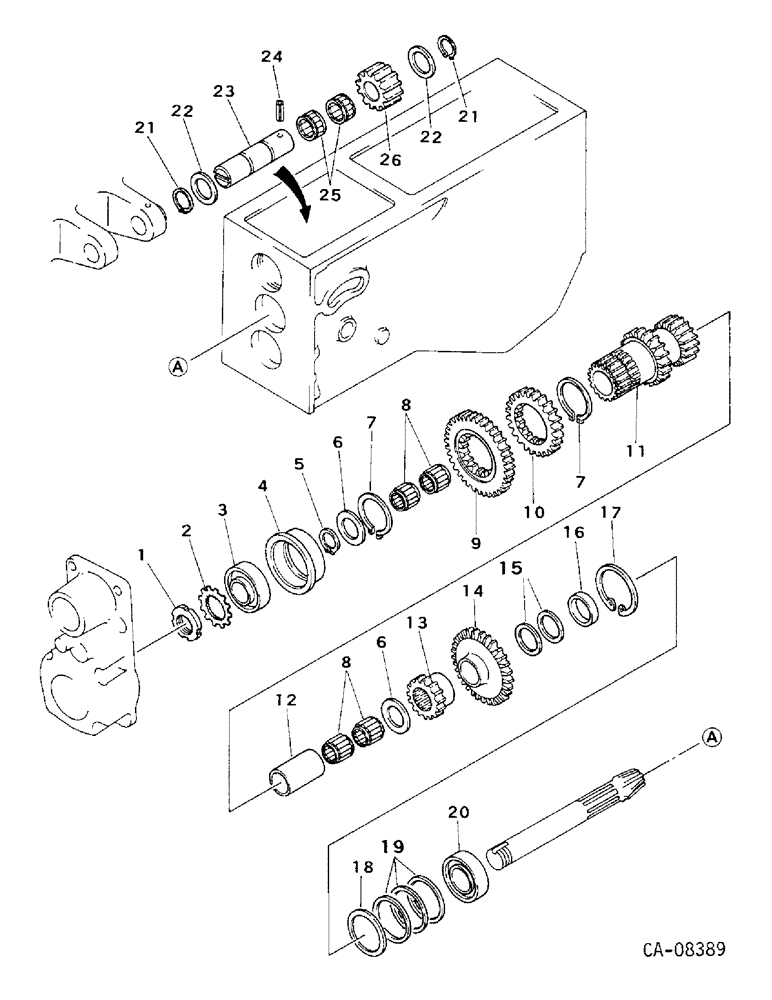

Схема запчастей Case IH 234 - (07-29) - DRIVE TRAIN, SELECTOR AND COUNTER GEARS, LOWER, 234 (04) - Drive Train
12
4
25
2
21
3
15
18
11
1
22
24
7
5
21
16
14
23
7
20
10
22
19
13
6
8
17
6
9
26
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

31099R1

LOCK NUT,M25 x 1.5, Bearing

NUT, M25 x 1.5 bearing lock

1шт.

2

1273562C1

WASHER

lock

1шт.

3

1273175C91

TAPERED BEARING

ASSY

1шт.

4

1269456C1

WASHER

bearing, holder

1шт.

5

933128R1

SNAP RING,M25, Ext

RING, 22.78 mm ext ret

1шт.

6

1273563C1

SHIM

2шт.

7

933283R1

SNAP RING,M45, Ext

RING, 40.72 mm ext ret

2шт.

8

1273564C91

NEEDLE BEARING

ASSY

4шт.

9

1269454C1

GEAR WHEEL

GEAR, 30T

1шт.

10

1269455C1

GEAR WHEEL

GEAR, 30T

1шт.

11

1269463C1

SHAFT HOUSING

SHAFT, 18T & 23T

1шт.

12

1269457C1

SPACER

1шт.

13

1269458C1

GEAR WHEEL

GEAR, 18T

1шт.

14

1269459C1

GEAR WHEEL

GEAR, 34T

1шт.

15

1273569C1

SHIM

SET (or as required)

1шт.

16

1269460C1

WASHER

1шт.

17

1273565C1

RING

retaining

1шт.

18

SHIM, included in ref. no. 19

1шт.

19

1273570C1

SHIM

SET (or as required)

1шт.

20

1273567C91

TAPERED BEARING

BEARING ASSY

1шт.

21

934001R1

SNAP RING,M18, Ext

RING, 16.14 mm ext ret

2шт.

22

1273568C1

SHIM

2шт.

23

1269461C1

SHAFT HOUSING

SHAFT

1шт.

24

31124R1

LOCK PIN,M5 x 32, Slotted

PIN, 5 x 32 mm pln slt spr

1шт.

25

1273325C91

NEEDLE BEARING

ASSY

1шт.

26

1269462C1

GEAR WHEEL

GEAR, 16T

1шт.
