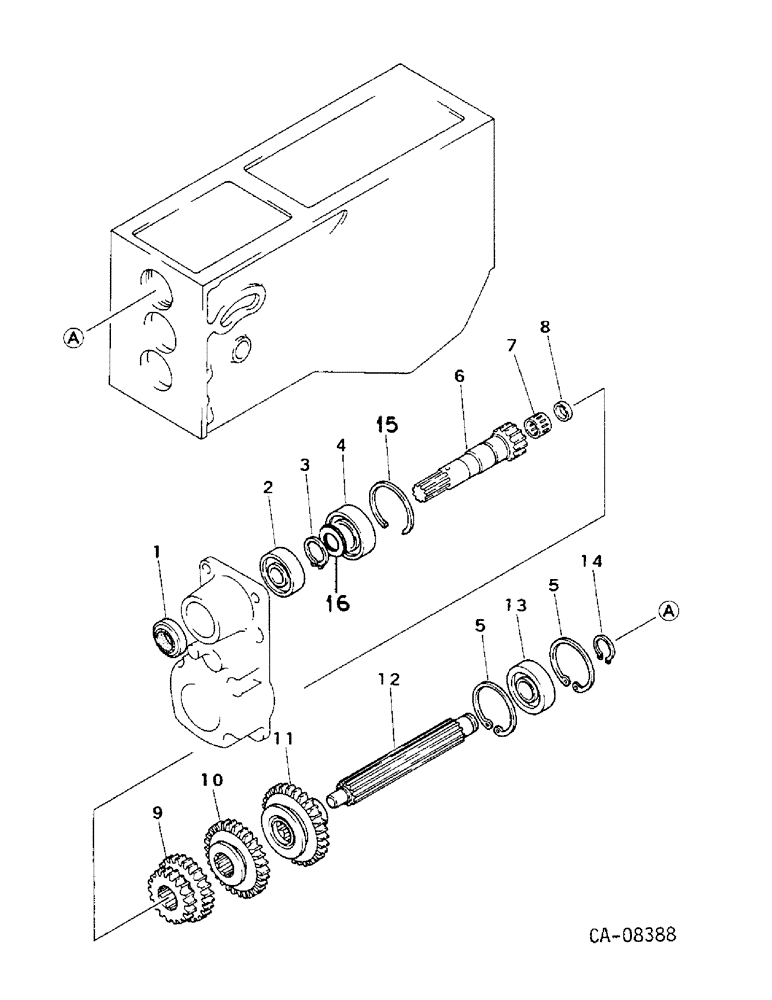

Запчасти Case IH 234 (07-28) - DRIVE TRAIN, SELECTOR AND COUNTER GEARS, UPPER, 234 (04) - Drive Train

1

1273179C1

OIL SEAL

SEAL, oil

1шт.

2

1271856C91

BEARING, BALL

BEARING ASSY

1шт.

3

933128R1

SNAP RING,M25, Ext

RING, 22.78 mm ext ret

1шт.

4

1273561C91

ROLLER BEARING,25 mm ID x 52 mm OD x 17 mm

ASSY

1шт.

5

933032R1

SNAP RING,M52, Int

RING, 55.74 mm int ret

2шт.

6

1269453C2

SHAFT HOUSING

SHAFT, drive

1шт.

7

1273557C91

NEEDLE BEARING

ASSY

1шт.

8

1269449C1

WASHER

1шт.

9

1269451C1

GEAR WHEEL

GEAR, 27 T

1шт.

10

1269448C1

GEAR WHEEL

GEAR, 32 T

1шт.

11

1269450C2

GEAR WHEEL

GEAR, 33 T

1шт.

12

1269452C1

SHAFT

select

1шт.

13

1271862C91

BEARING, BALL

BEARING ASSY

1шт.

14

933123R1

SNAP RING,M20, Ext

RING, 18.08 mm ext ret

1шт.

15

1273643C1

RING

retaining

1шт.

16

1273642C1

SHIM

1шт.
