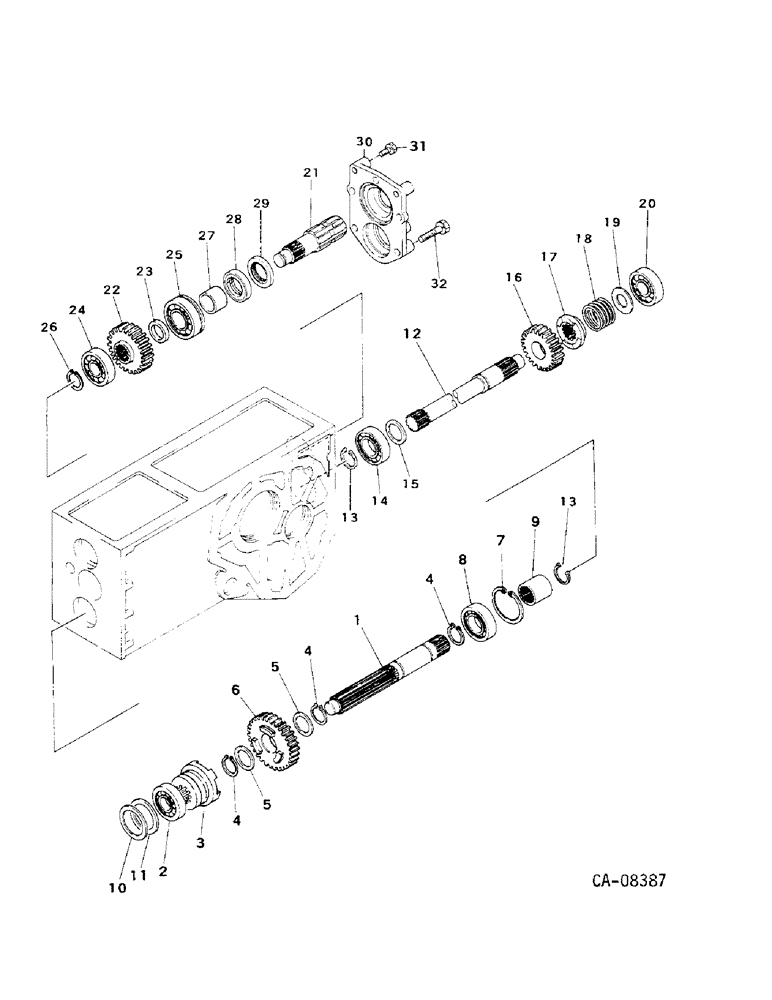

Запчасти Case IH 234 (07-26) - DRIVE TRAIN, PTO SHAFTS, 234 (04) - Drive Train

1

1269421C1

SHAFT HOUSING

SHAFT, PTO, sub

1шт.

2

1275062C91

BALL BEARING,20 mm ID x 52 mm OD x 15 mm

BEARING ASSY

1шт.

3

1269413C1

CLUTCH ASSEMBLY

CLUTCH

1шт.

4

933128R1

SNAP RING,M25, Ext

RING, 22.78 mm ext ret

3шт.

5

1275063C1

THRUST WASHER

thrust

2шт.

6

1269415C1

GEAR WHEEL

GEAR, 30T

1шт.

7

933032R1

SNAP RING,M52, Int

RING, 55.74 mm int ret

1шт.

8

1271857C91

BEARING, BALL

BEARING ASSY

1шт.

9

1269414C1

COUPLING

1шт.

10

1271872C1

SHIM

1шт.

11

1271873C1

SHIM

(or as required)

1шт.

12

1269420C1

SHAFT HOUSING

SHAFT

1шт.

13

933128R1

SNAP RING,M25, Ext

RING, 22.78 mm ext ret

2шт.

14

1271857C91

BEARING, BALL

BEARING ASSY

1шт.

15

1269418C1

WASHER

1шт.

16

1269419C1

GEAR WHEEL

GEAR - 18T

1шт.

17

1269411C1

HUB CAP

HUB

1шт.

18

1269412C2

VALVE SPRING

SPRING

1шт.

19

1275226C1

NOZZLE HOLDER

HOLDER, spring

1шт.

20

1271862C91

BEARING, BALL

BEARING ASSY

1шт.

21

1269423C1

SHAFT HOUSING

SHAFT, PTO

1шт.

22

1269417C1

GEAR WHEEL

GEAR, 24T

1шт.

23

1269410C1

WASHER

1шт.

24

1271862C91

BEARING, BALL

BEARING ASSY

1шт.

25

1271865C91

BEARING, BALL

BEARING ASSY

1шт.

26

933123R1

SNAP RING,M20, Ext

RING, 18.08 mm ext ret

1шт.

27

1269416C1

SPACER

1шт.

28

1273182C1

OIL SEAL

SEAL, oil

1шт.

29

1273176C1

OIL SEAL

SEAL, oil

1шт.

30

1269422C1

COVER ASSY

COVER

1шт.

31

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

3шт.

934309R1

LOCK WASHER,M8

WASHER, 8 mm lock

3шт.

32

934299R1

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

M8 x 45 class 8.8

2шт.

934309R1

LOCK WASHER,M8

WASHER, 8 mm lock

2шт.
