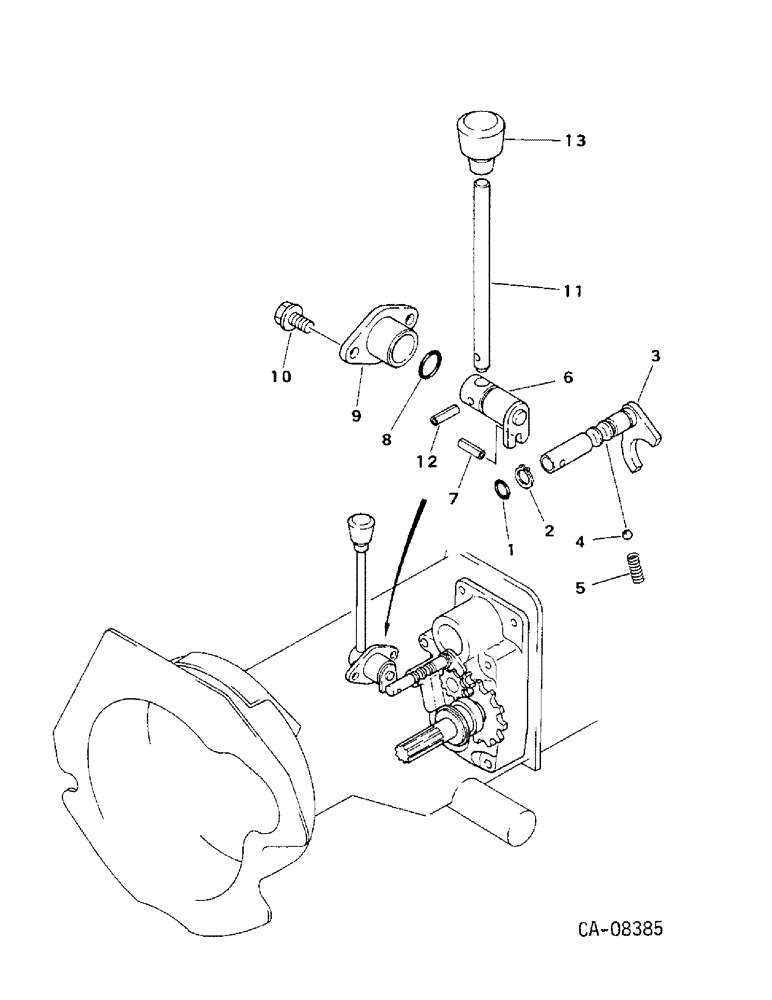

Запчасти Case IH 234 (07-25) - DRIVE TRAIN, FRONT WHEEL DRIVE CONTROLS, 234, FOUR WHEEL DRIVE (04) - Drive Train

1

1269869C1

O-RING

O-RING

1шт.

2

933332R1

SNAP RING,M14, Ext

RING, 12.54 mm ext ret

1шт.

3

1273468C1

SHAFT HOUSING

SHAFT, shift

1шт.

4

17011R1

BALL

11/32 grade 25 metal

1шт.

5

1273456C1

VALVE SPRING

spring

1шт.

6

1273469C1

LEVER

shifter

1шт.

7

31120R1

LOCK PIN,M6 x 22, Slotted

PIN, 6 x 22 mm pln slt spr

1шт.

8

1269871C1

O-RING,17.8mm ID x 2.4mm Width

1шт.

9

1273470C1

HUB CAP

HUB, shifter

1шт.

10

628-8020

BOLT,Hex, M8 x 20, 10.9, Full Thd

M8 x 20 class 8.8

2шт.

934309R1

LOCK WASHER,M8

WASHER, 8 mm lock

2шт.

11

1273471C1

LEVER

PIN, shifter (shaft)

1шт.

12

31123R1

LOCK PIN,M5 x 22, Slotted

PIN, 5 x 22 mm pln slt spr

1шт.

13

1273497C1

KNOB

1шт.
