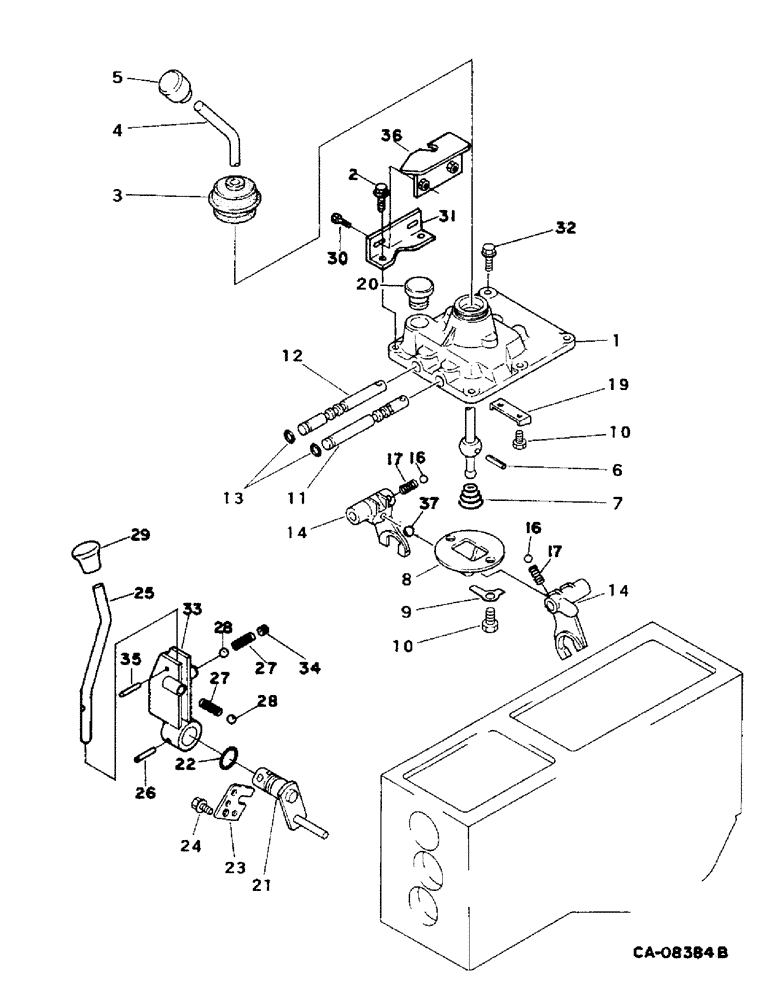

Запчасти Case IH 234 (07-23) - DRIVE TRAIN, RANGE AND SHIFT CONTROLS, 234 (04) - Drive Train

1

1273446C1

COVER ASSY

COVER

1шт.

2

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

934309R1

LOCK WASHER,M8

WASHER, 8 mm lock

2шт.

3

1273447C1

INSULATOR

handle

1шт.

4

1273448C1

HANDLE

shift

1шт.

5

1273483C1

KNOB

1шт.

6

31119R1

LOCK PIN,M5 x 36, Slotted

PIN, 5 x 36 mm pln slt spr

1шт.

7

1273450C1

VALVE SPRING

SPRING

1шт.

8

1273451C1

BRACKET

1шт.

9

1273452C1

WASHER

2шт.

10

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

4шт.

11

1273453C1

SHAFT HOUSING

SHAFT, LH shift (rail)

1шт.

12

1273454C1

SHAFT HOUSING

SHAFT, RH shift (rail)

1шт.

13

1269869C1

O-RING

O-RING

2шт.

14

1273455C1

FORK TEDDER

FORK, shift

2шт.

15

(Not used this application)

1шт.

16

17011R1

BALL

11/32 grade 25 metal

2шт.

17

1273456C1

VALVE SPRING

SPRING

2шт.

18

(Not used this application)

1шт.

19

1273457C1

SUPPORT ASSY.

SUPPORT

1шт.

20

1273458C1

PLUG

1шт.

21

1273459C1

LEVER

1шт.

22

1269871C1

O-RING,17.8mm ID x 2.4mm Width

1шт.

23

1273460C1

SUPPORT ASSY.

SUPPORT

1шт.

24

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

1шт.

934309R1

LOCK WASHER,M8

WASHER, 8 mm lock

1шт.

934675R1

WASHER,M8 x 16 x 1.6

8.8 x 17 x 1.6 mm

1шт.

25

1282581C1

HANDLE

range

1шт.

26

31163R1

PIN,M5 x 40, Coiled

5 x 40 mm pln hdn hv cld spr

1шт.

27

1273456C1

VALVE SPRING

SPRING

2шт.

28

17011R1

BALL

11/32 grade 25 metal

2шт.

29

1273497C1

KNOB

1шт.

30

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

M6 x 16 class 8.8

2шт.

933833R1

LOCK WASHER,M6

WASHER, 6 mm lock

2шт.

934948R1

WASHER,M6

6.4 x 12.5 x 1.6 mm

2шт.

31

1282582C1

PLATE ASSY.

PLATE, A

1шт.

32

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

4шт.

934309R1

LOCK WASHER,M8

WASHER, 8 mm lock

4шт.

934675R1

WASHER,M8 x 16 x 1.6

8.8 x 17 x 1.6 mm

4шт.

33

1282583C1

BRACKET

engine start switch

1шт.

34

444693

PLUG,Hex Soc, 1/4"-18, Brass

1/4-18 pln hex/skt auto pipe

1шт.

35

30320R1

PIN,M5 x 33, Coiled

5 x 32 mm pln cld spr

1шт.

36

1282584C1

PLATE ASSY.

PLATE, B

1шт.

37

17014R1

BALL

7/16 grade 25 metal

1шт.
